IGNITION SWITCH

REMOVAL

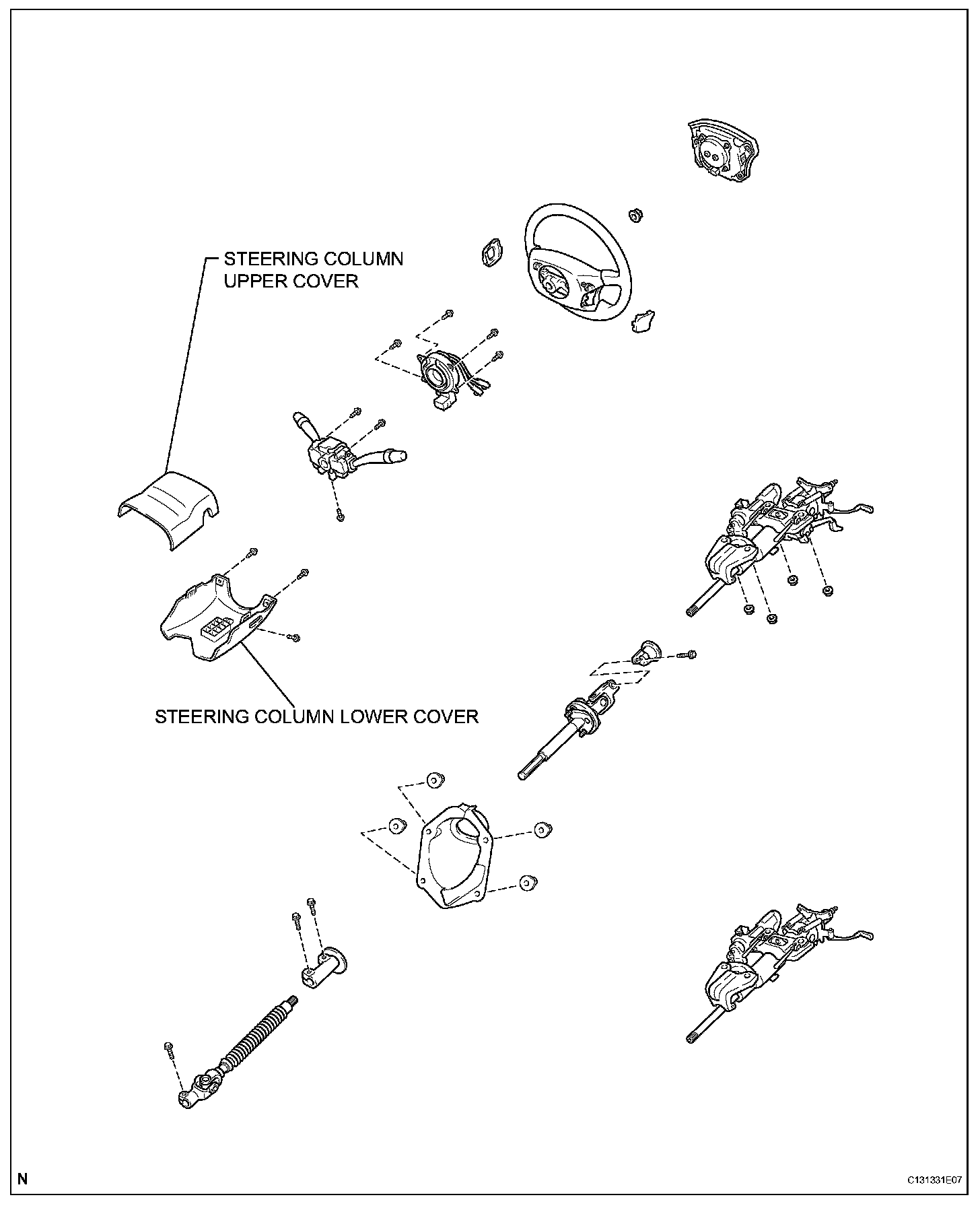

1. REMOVE STEERING COLUMN LOWER COVER
2. REMOVE STEERING COLUMN UPPER COVER
a. Remove the steering column upper cover.

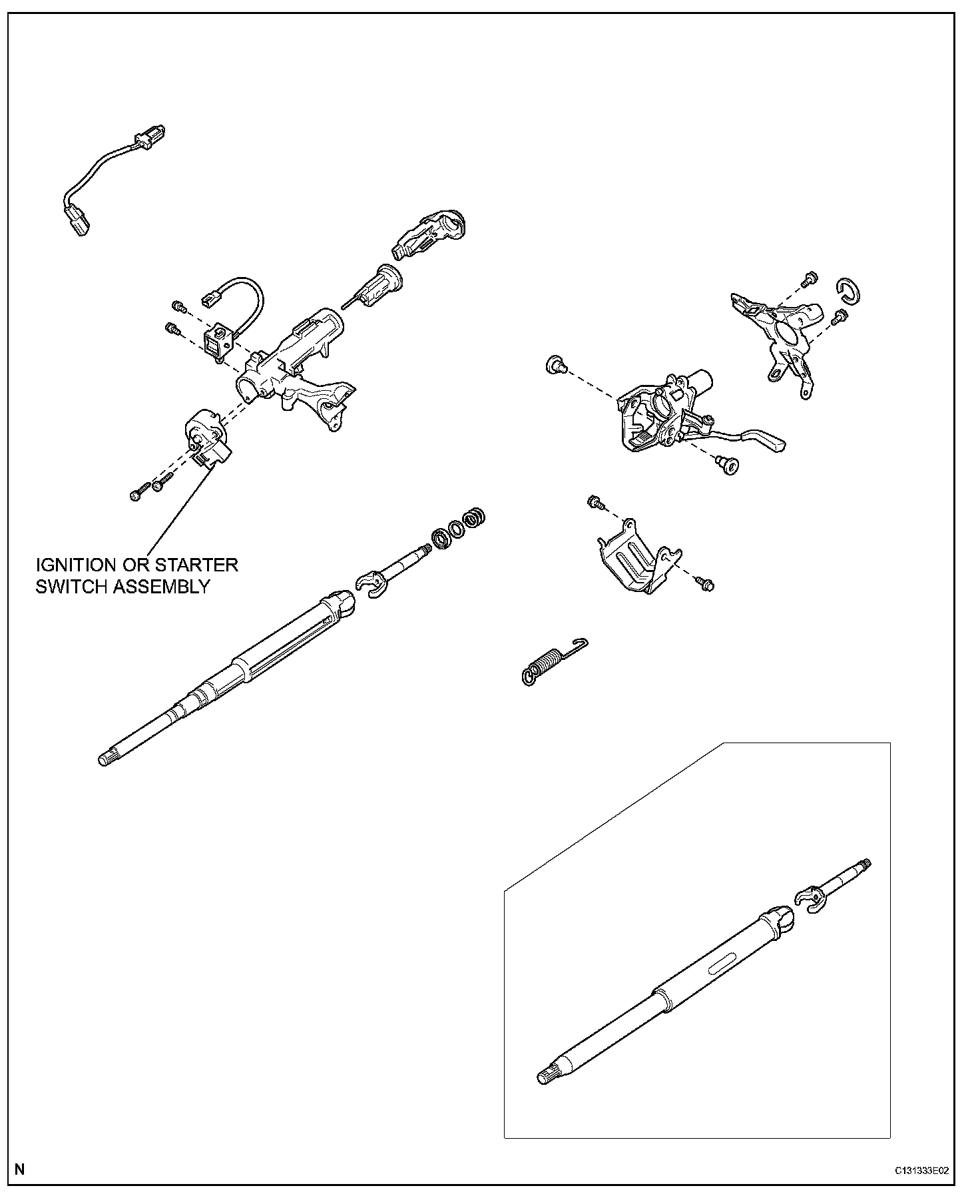

3. REMOVE IGNITION OR STARTER SWITCH ASSEMBLY
a. Disconnect the ignition switch connector and unlock warning switch connector.
b. Remove the clamp.

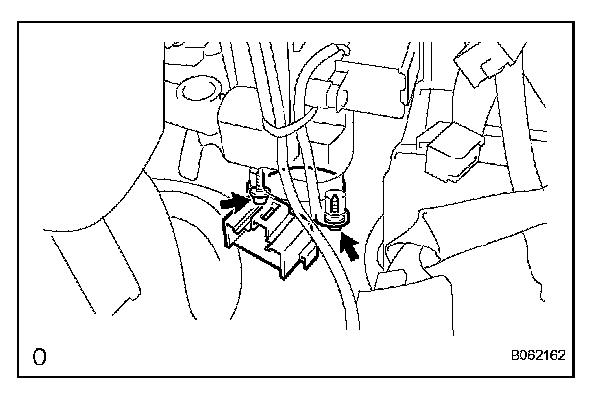

c. Remove the 2 screws and ignition switch.

INSTALLATION




1. INSTALL IGNITION OR STARTER SWITCH ASSEMBLY

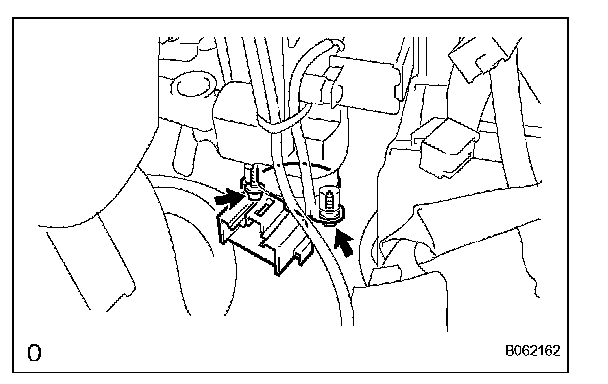

a. Install the ignition switch with the 2 screws.
b. Install the clamp.
c. Connect the un-lock warning switch connector and ignition switch connector.

2. INSTALL STEERING COLUMN UPPER COVER
a. Install the steering column upper cover.

3. INSTALL STEERING COLUMN LOWER COVER
