Component Inspection

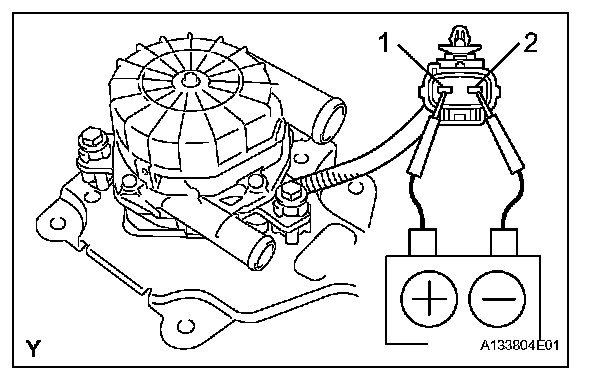

INSPECTION1. INSPECT AIR PUMP ASSEMBLY
a. Connect the positive (+) lead from the battery to terminal 1 and the negative (-) lead to terminal 2, and check that air flows.
If operation is not as specified, replace the air pump.
1. INSPECT AIR PUMP ASSEMBLY
a. Connect the positive (+) lead from the battery to terminal 1 and the negative (-) lead to terminal 2, and check that air flows.
If operation is not as specified, replace the air pump.
