Cylinder HeadCYLINDER HEAD SUB-ASSEMBLY
Place the 2 cylinder heads in position on the cylinder head gaskets.
Install the cylinder head bolts.
HINT:
The cylinder head bolts are tightened in 3 progressive steps (Procedures "A" and "B").
If any cylinder head bolt is broken or deformed, replace it.
Install the plate washer to the cylinder head bolt.

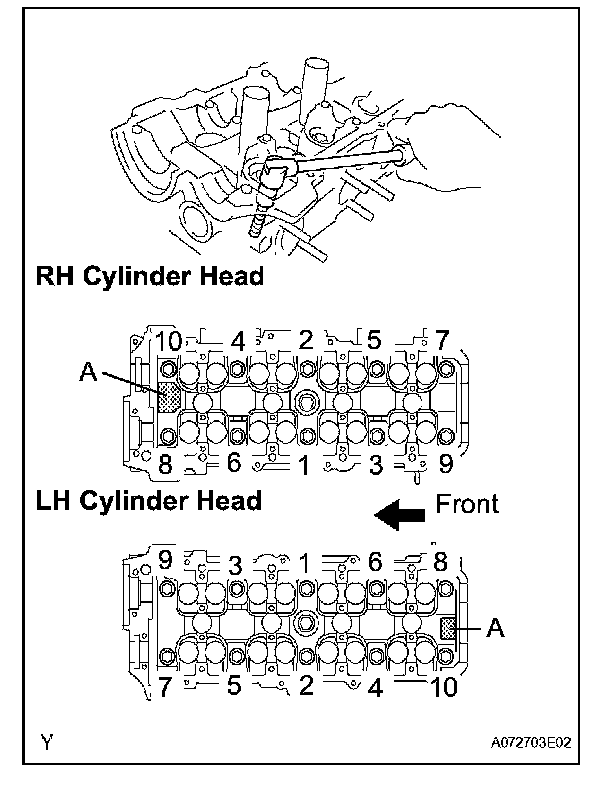

Install and uniformly tighten the 10 cylinder head bolts on one side of the cylinder head in several steps in the order shown in the illustration, then do the other side in the same way (Procedure "A").
Torque 40 Nm (408 kgf/cm, 30 ft. lbs.)
If any one of the cylinder head bolts does not meet the torque specification, replace the cylinder head bolt.
NOTICE: Do not drop the plate washer for the cylinder head bolt into portion A of the cylinder head. If dropped into portion A, the plate washer will pass through the cylinder head and cylinder block into the oil pan.
Mark the front of the cylinder head bolt head with paint.

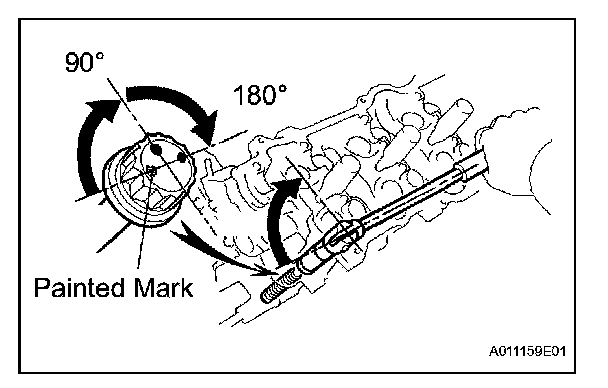

Retighten the cylinder head bolts by 90° in the numerical order shown (Procedure "B").
Retighten the cylinder head bolts by an additional 90°.
Check that the painted mark is now at a 180° angle to front.
CYLINDER HEAD SET BOLT

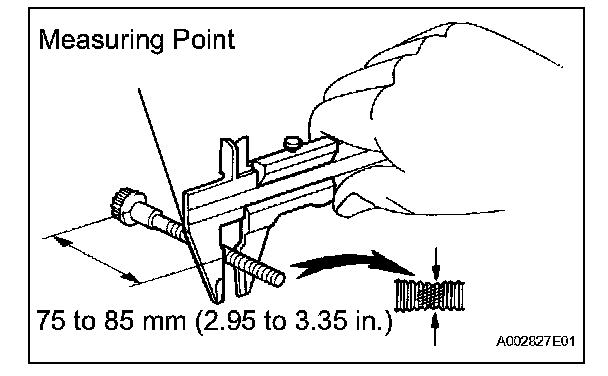

Using vernier calipers, measure the thread outside diameter of the bolt.
Standard outside diameter 9.810 to 9.960 mm (0.3862 to 0.3921 in.)
Minimum outside diameter 9.700 mm (0.3819 in.)
Inspect for warpage.

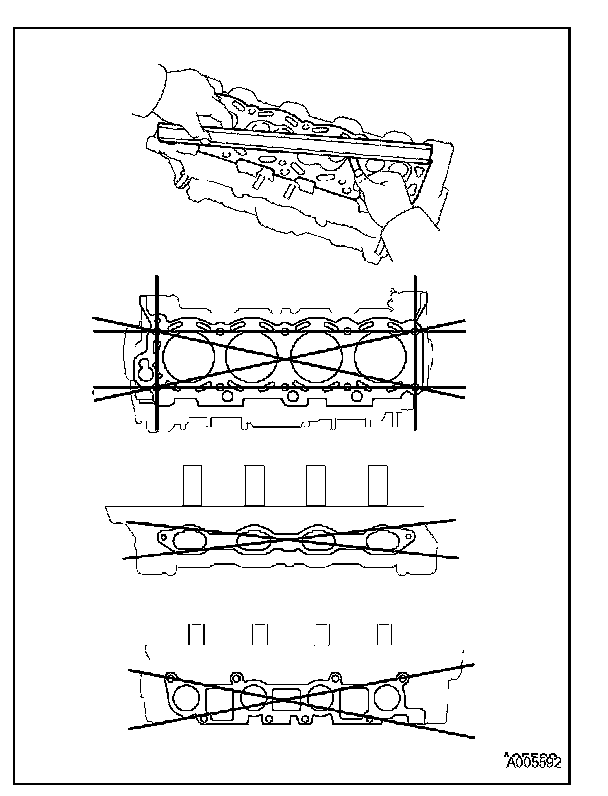

Using a precision straight edge and feeler gauge, measure the warpage of the contact surfaces of the cylinder block and the manifolds.
Maximum warpage 0.10 mm (0.0039 in.)
If warpage is greater than the maximum, replace the cylinder head.
Inspect for cracks.

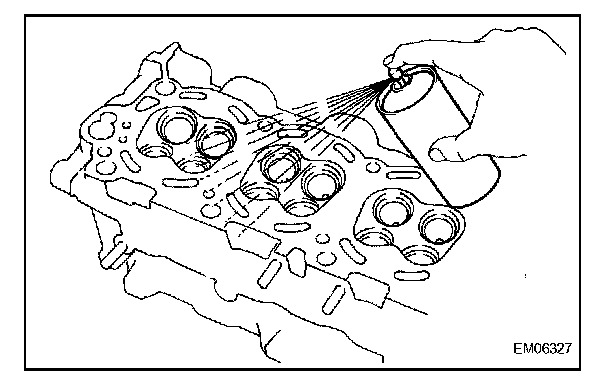

Using a dye penetrant, check the combustion chamber, intake ports, exhaust ports and cylinder block surface for cracks.
If cracked, replace the cylinder head.
Water by-pass joint FR x Cylinder head 18 Nm (185 kgf/cm, 13 ft. lbs.)
Water by-pass joint RR x Cylinder head 18 Nm (185 kgf/cm, 13 ft. lbs.)
Camshaft position sensor x Cylinder head 7.5 Nm (80 kgf/cm, 66 in. lbs.)
Intake manifold assembly x Cylinder head 18 Nm (185 kgf/cm, 13 ft. lbs.)
Exhaust manifold x Cylinder head 44 Nm (450 kgf/cm, 33 ft. lbs.)
Oil level gauge guide x Cylinder head 15 Nm (155 kgf/cm, 11 ft. lbs.)
Transmission oil filler tube x Cylinder head 12 Nm (122 kgf/cm, 9 ft. lbs.)
Timing belt plate RR x Cylinder head 7.5 Nm (76 kgf/cm, 66 in. lbs.)
Intake Manifold
Intake manifold assembly x Cylinder head 18 Nm (185 kgf/cm, 13 ft. lbs.)
Camshaft Bearing Cap
RH bank
Install the front bearing cap.
HINT: The thrust position of the camshaft will be determined after installing the front bearing cap.

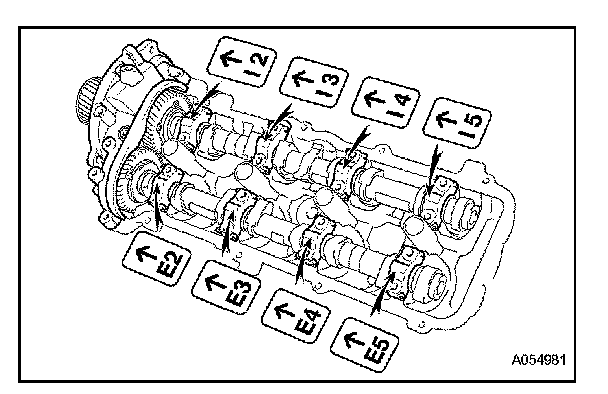

Install the other bearing caps in the order shown with the arrow mark facing forward.
Install new seal washers to the bearing cap bolts (A and B).
Apply a light coat of engine oil to the threads and under the heads of the bearing cap bolts (D and E).

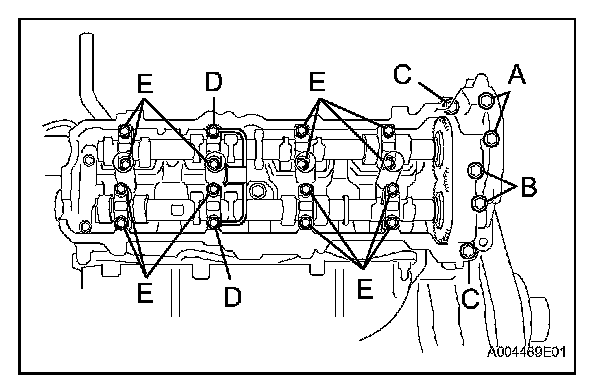

Install the oil feed pipe and the 22 bearing cap bolts as shown in the illustration.

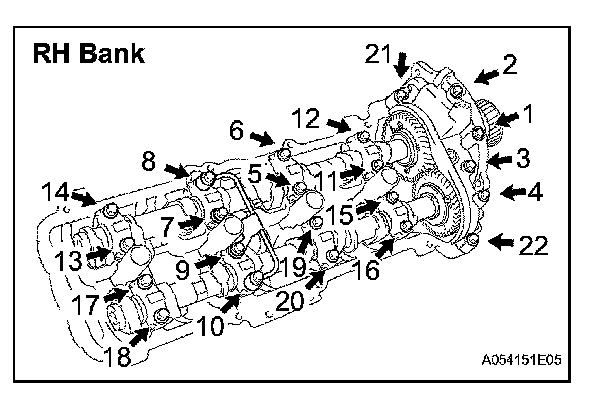

Uniformly tighten the 22 bearing cap bolts in several steps, in the order shown in the illustration.
Torque:
For bolt C 7.5 Nm (76 kgf/cm, 66 in. lbs.)
For others 16 Nm (163 kgf/cm, 12 ft. lbs.)
LH bank.
Apply MP grease to the thrust portion of the camshafts.
Align the timing marks (2-dot marks) of the camshaft drive and driven main gears, and place the 2 camshafts.
Install the front bearing cap.

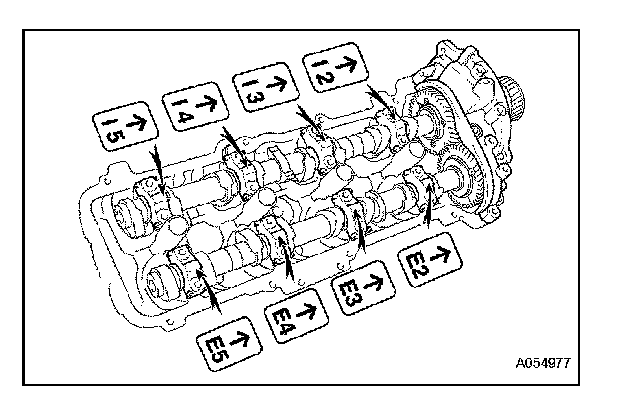

Install the other bearing cap in the order shown with the arrow mark facing forward.
Install the oil feed pipe and the 22 bearing cap bolts as shown in the illustration.

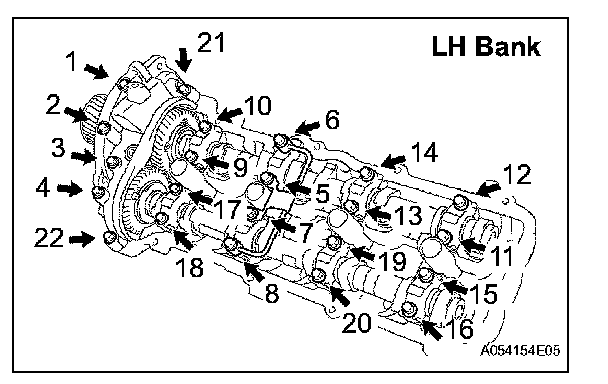

Uniformly tighten the 22 bearing cap bolts in several steps, in the order shown in the illustration.
Torque:
For bolt C 7.5 Nm (76 kgf/cm, 66 in. lbs.)
For others 16 Nm (163 kgf/cm, 12 ft. lbs.)
Camshaft Gear/Sprocket
Camshaft timing pulley x Camshaft 108 Nm (1,101 kgf/cm, 80 ft. lbs.)
