Flex Plate

Flywheel/Flex Plate

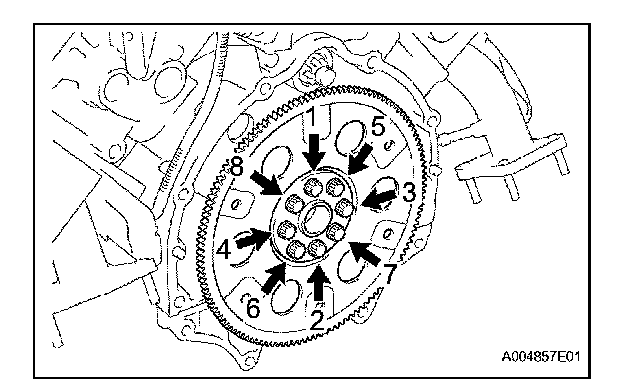

Drive plate & ring gear x Crankshaft
1st 30 Nm (301 kgf/cm, 22 ft. lbs.)
2nd Turn 90°
