Memory Positioning Switch: Testing and Inspection

SEAT MEMORY SWITCH (w/ Memory)

INSPECTION

1. INSPECT SEAT MEMORY SWITCH

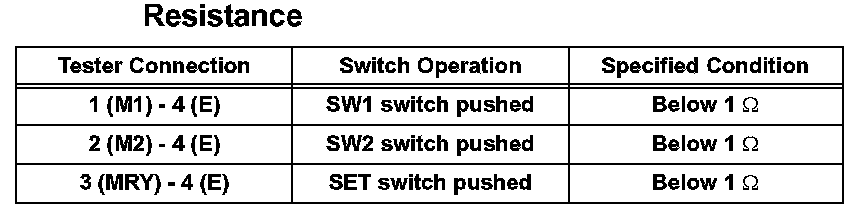

a. Measure the resistance between the terminals when each switch is operated.






If the result is not as specified, replace the switch.
