Refrigerant: Testing and Inspection

ON-VEHICLE INSPECTION

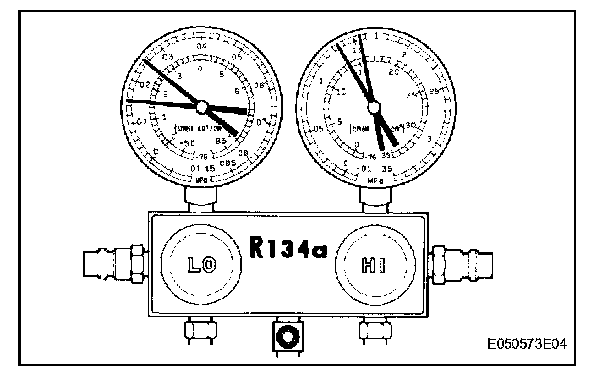

1. INSPECT REFRIGERANT PRESSURE WITH MANIFOLD GAUGE SET
a. This is a method in which trouble is located by using a manifold gauge set. Read the manifold gauge pressure when the following conditions are established.
Test conditions:
- Temperature at the air inlet with the switch set at RECIRC is 30 to 35°C (86 to 95°F)
- Engine is running at 1500 rpm
- Blower sped control switch is in the "HI" position
- Temperature control dial is in the "COOL" position
- A/C switch is ON
- Doors fully open




1. The refrigeration system functions normally.
Gauge reading:
Low pressure side:0.15 to 0.25 MPa (1.5 to 2.5 kgf/sq.cm, 21.3 to 35.6 psi)

High pressure side:1.37 to 1.57 MPa (14 to 16 kgf/sq.cm, 199 to 228 psi)

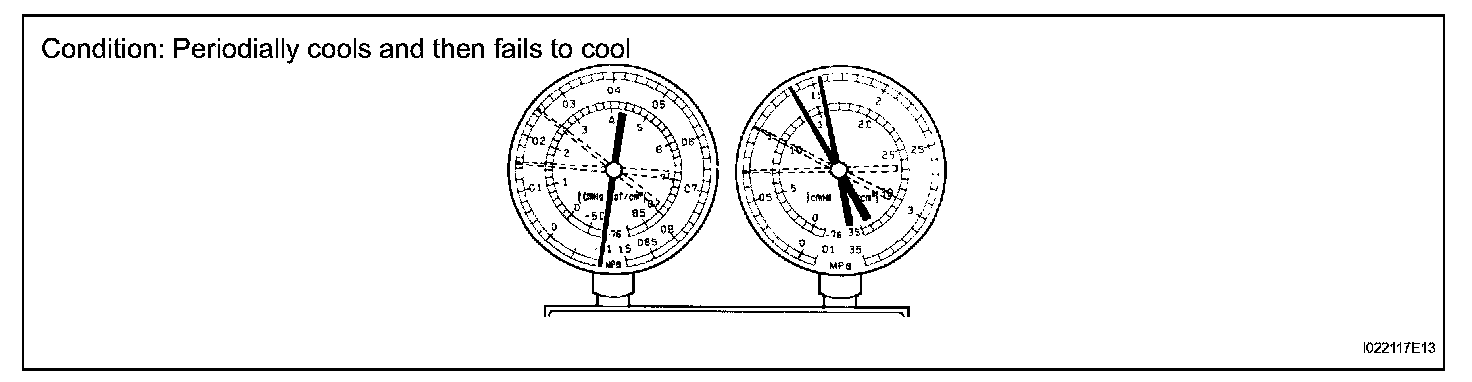

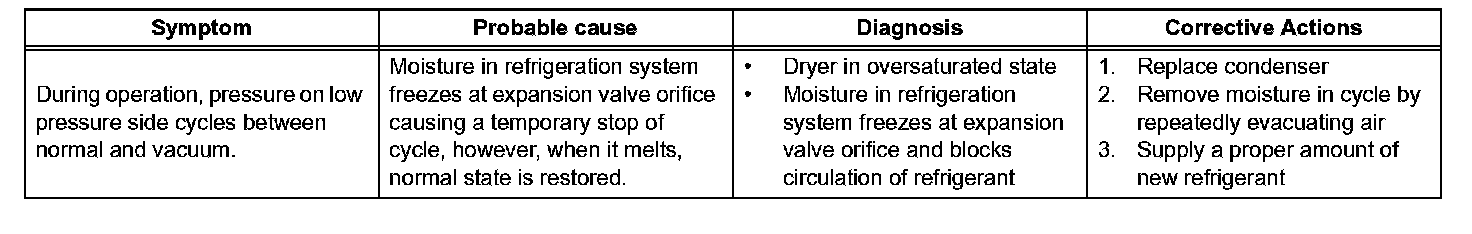

2. Moisture present in refrigeration system.

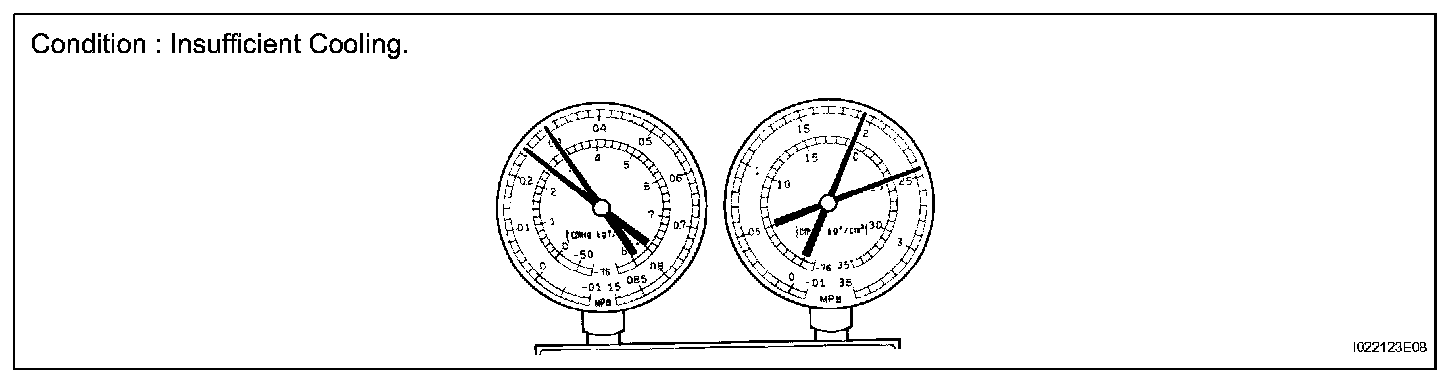

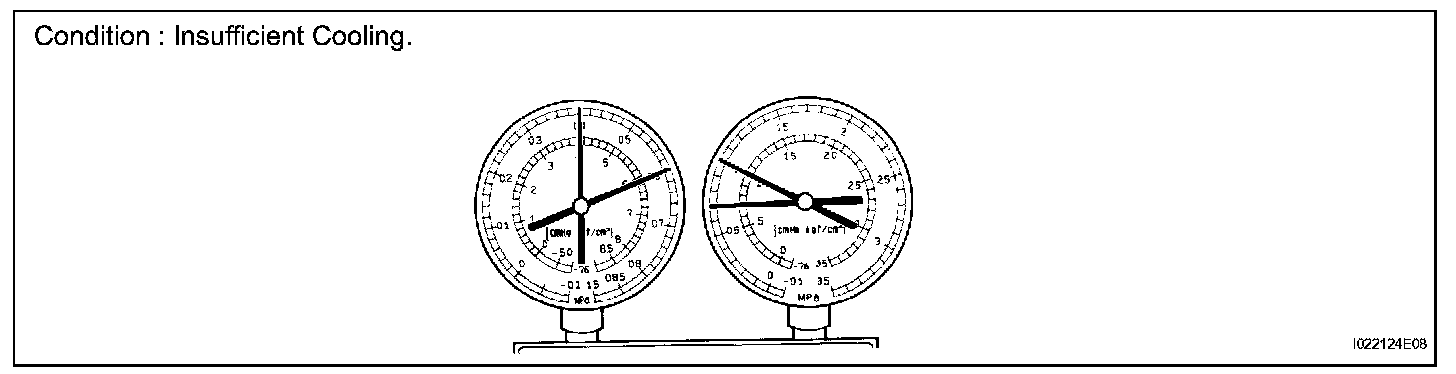

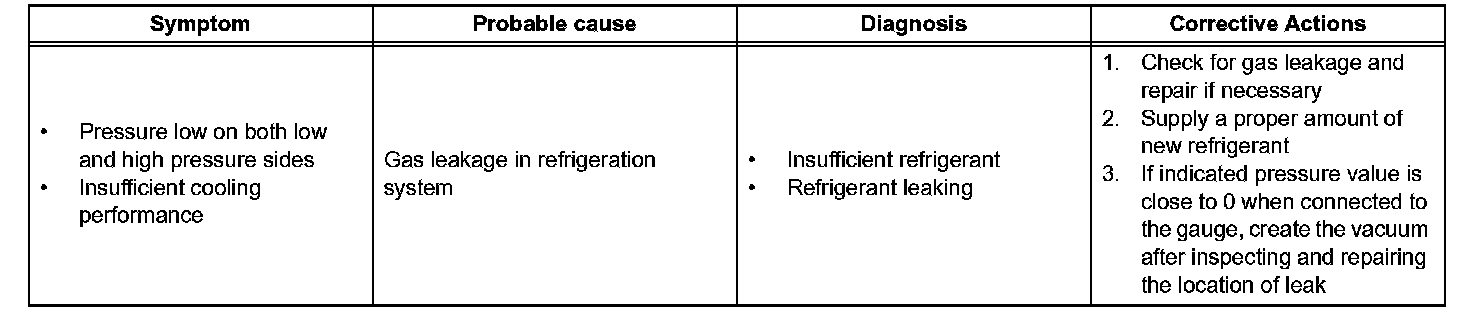

3. Insufficient cooling

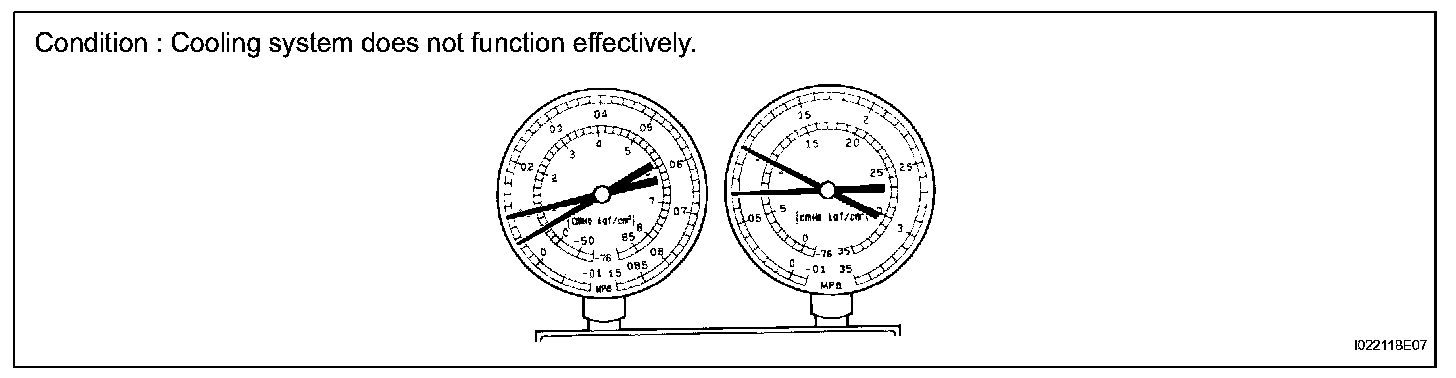

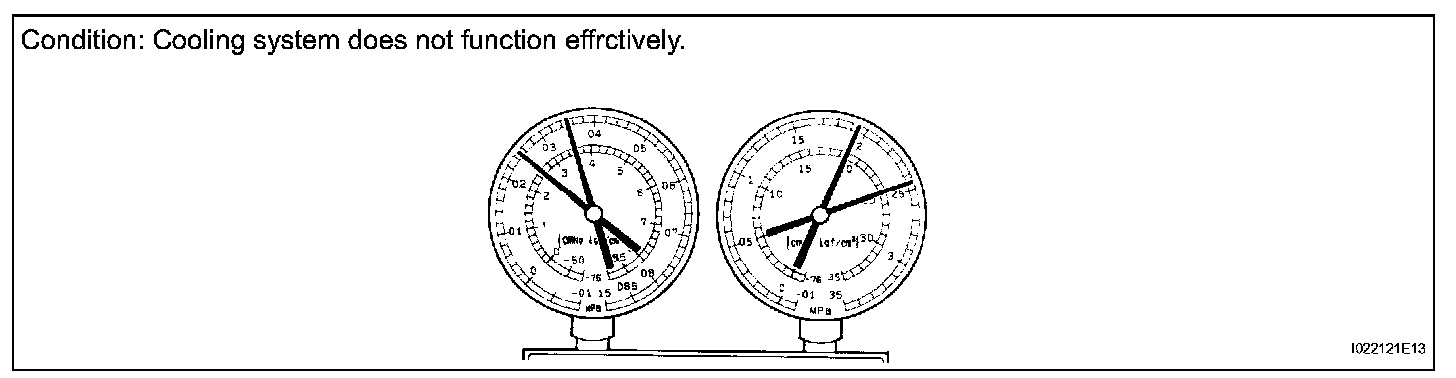

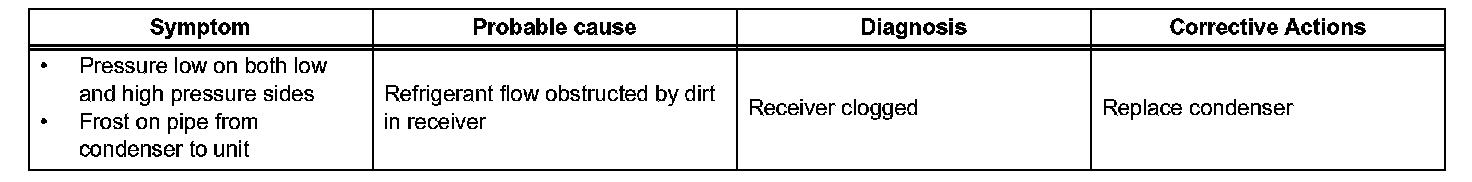

4. Poor circulation of refrigerant

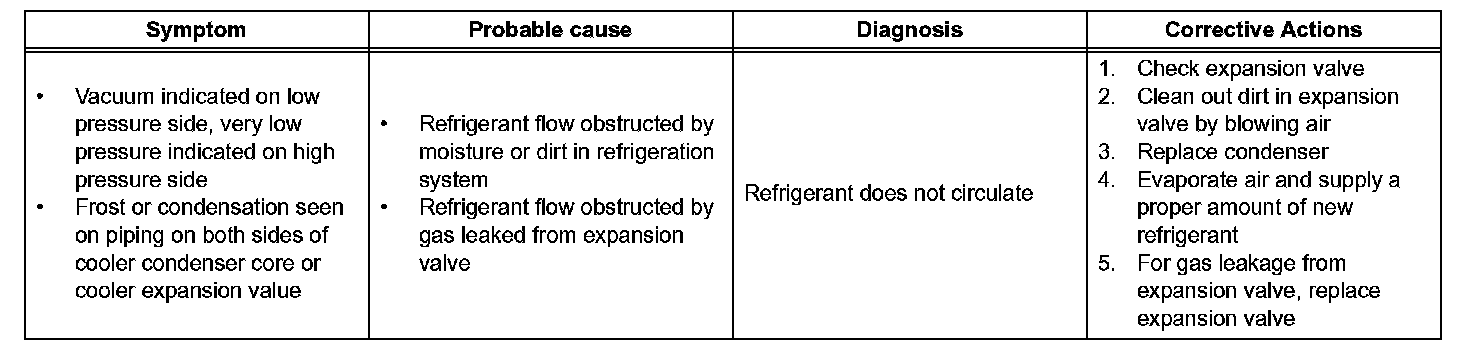

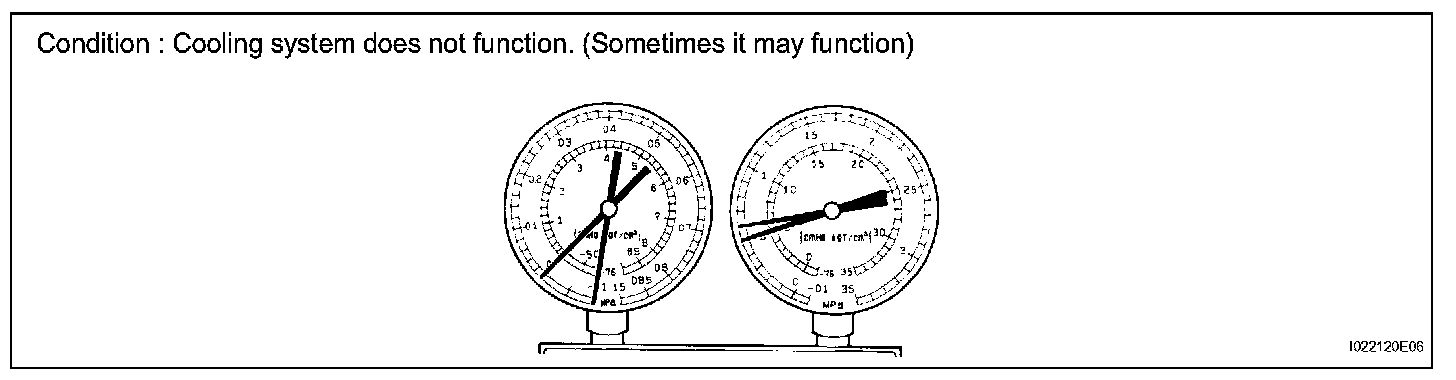

5. Refrigerant does not circulate.

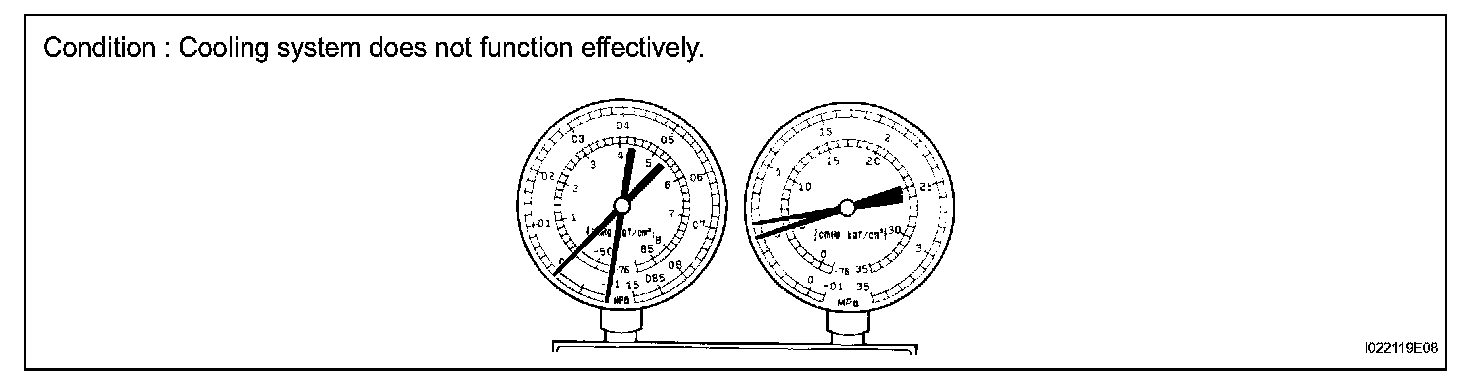

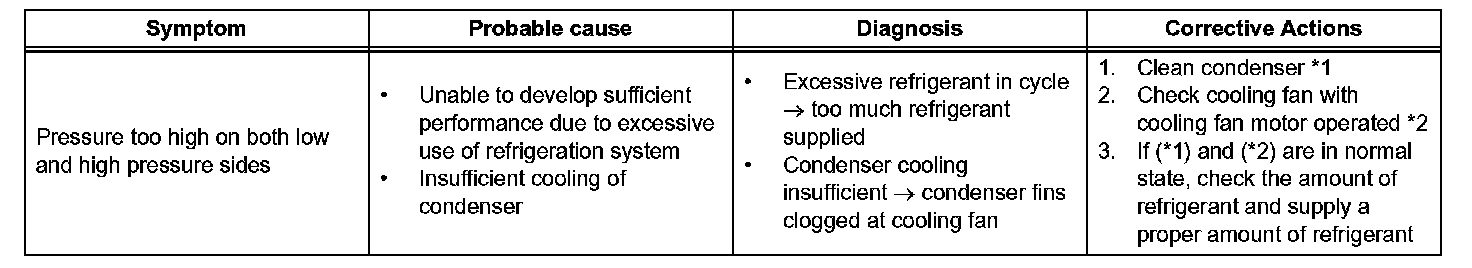

6 Refrigerant overcharged or insufficient cooling of condenser

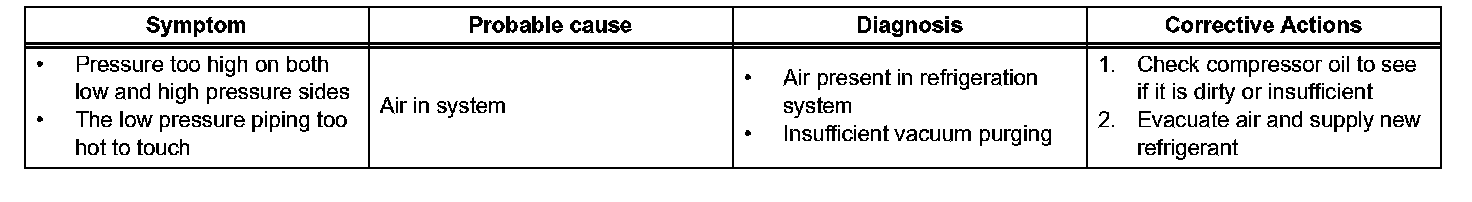

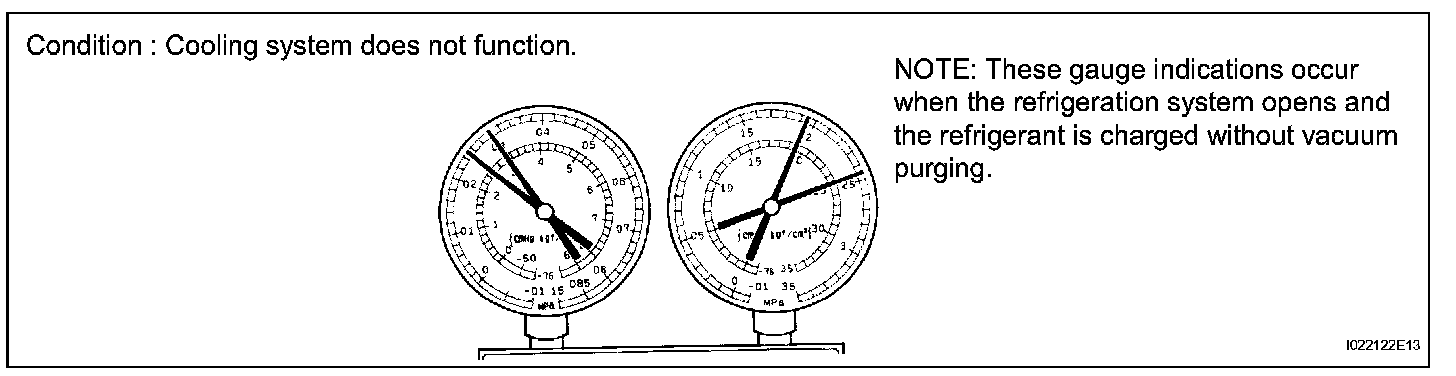

7 Air present in refrigeration system

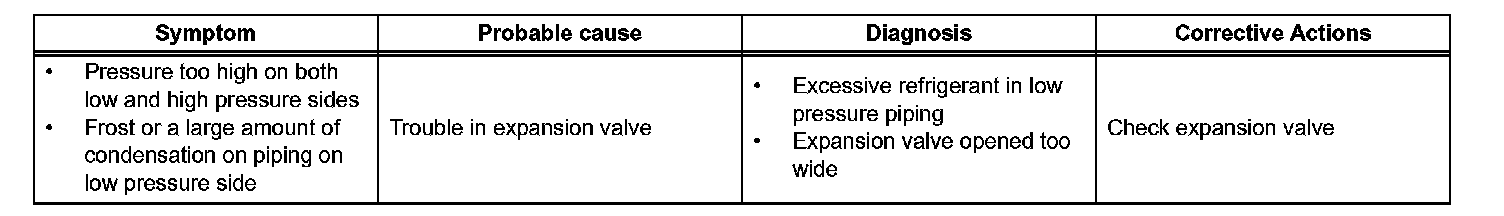

8 Expansion valve malfunction

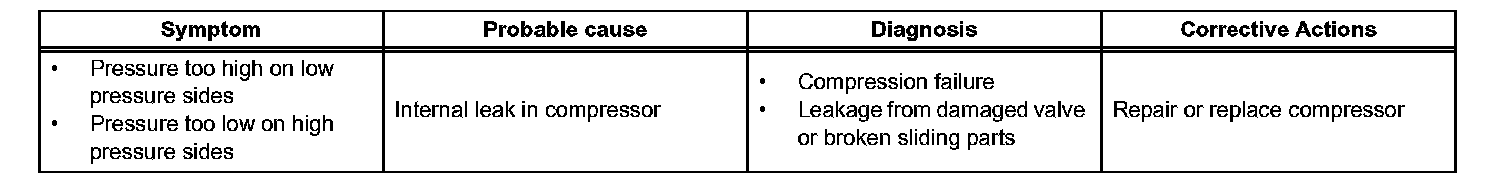

9 Defective compressor

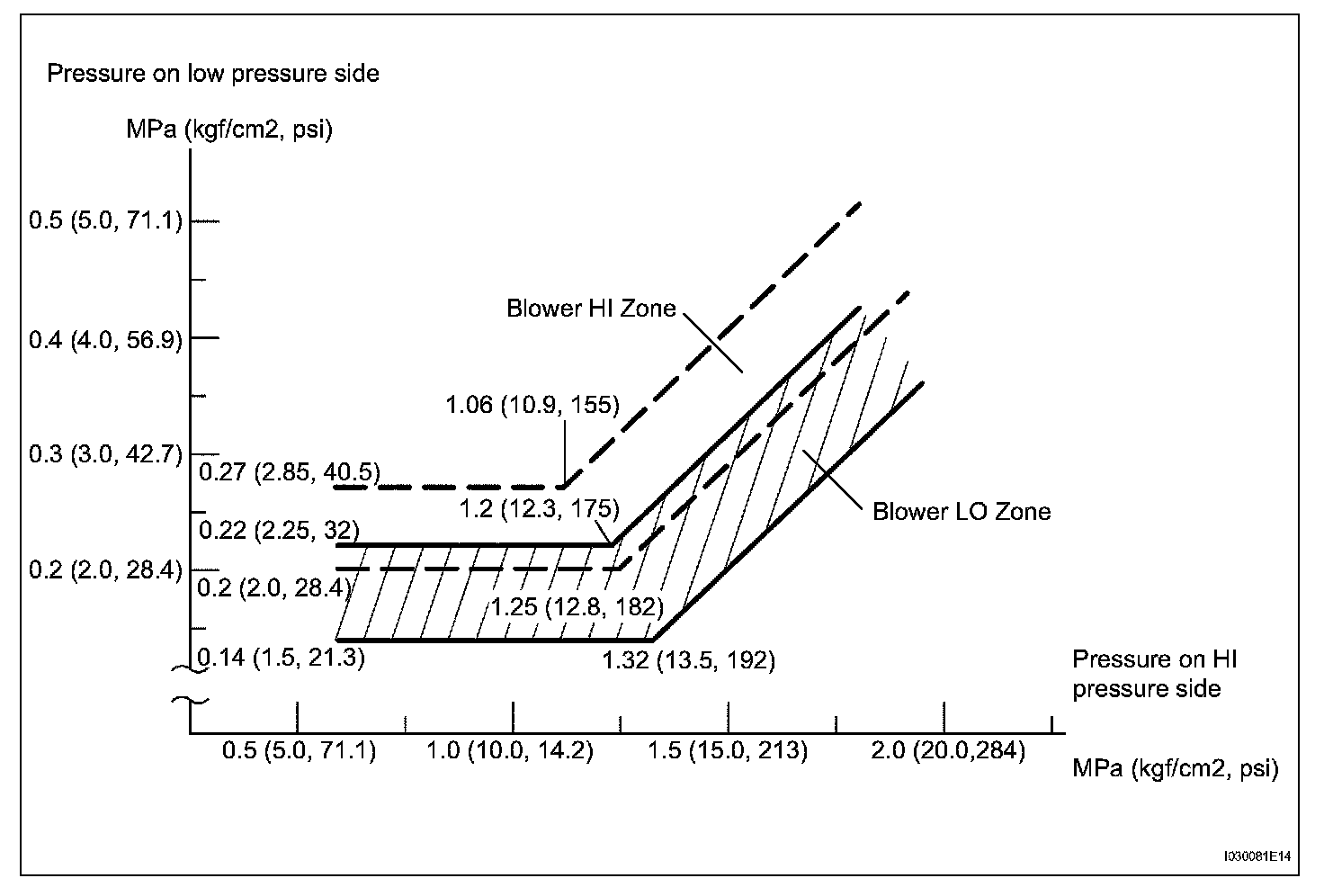

Gauge readings (Reference)
