Inspection

INSPECTION

1. INSPECT CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY




a. Using an ohmmeter, measure the resistance between the terminals.

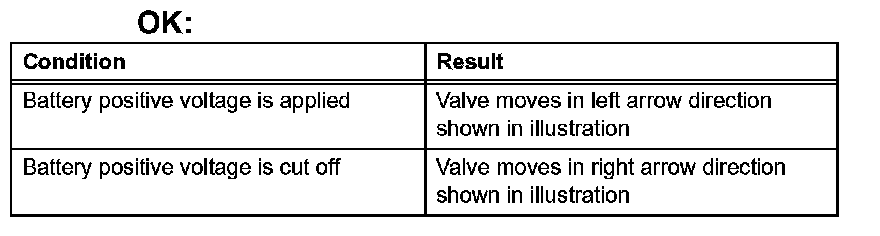

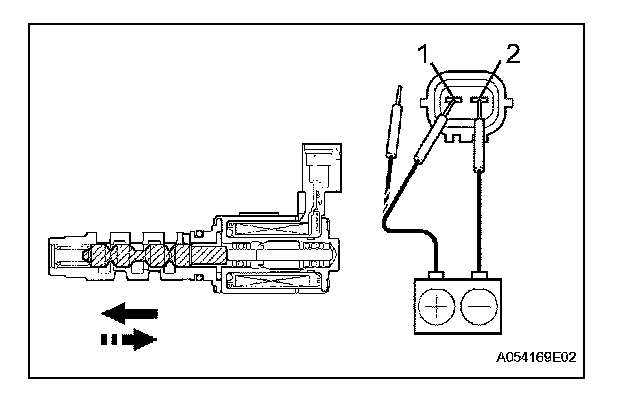

b. Connect the battery's positive (+) lead to terminal 1 and negative (-) lead to terminal 2. Check the movement of the valve.

If operation is not as specified, replace the valve.
