B1630

DTC B1630/23 Driver Side Rear Airbag Sensor Malfunction

DESCRIPTION

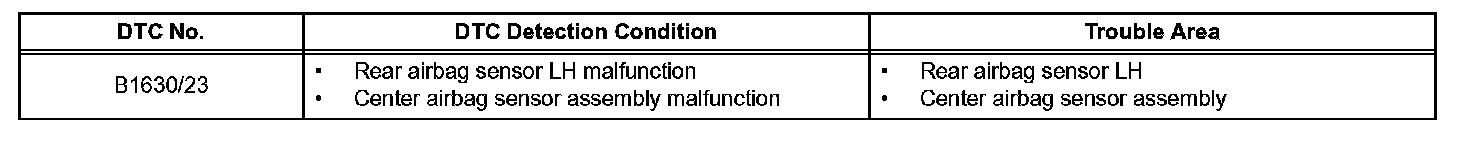

DTC Detection Condition:

The rear airbag sensor LH consists of the safing sensor, the diagnostic circuit, the lateral deceleration sensor, etc.

If the center airbag sensor assembly receives signals from the lateral deceleration sensor, it determines whether the SRS should be activated.

DTC B1630/23 is recorded when a malfunction is detected in the driver side rear airbag sensor circuit.

Wiring Diagram:

Step 1-2:

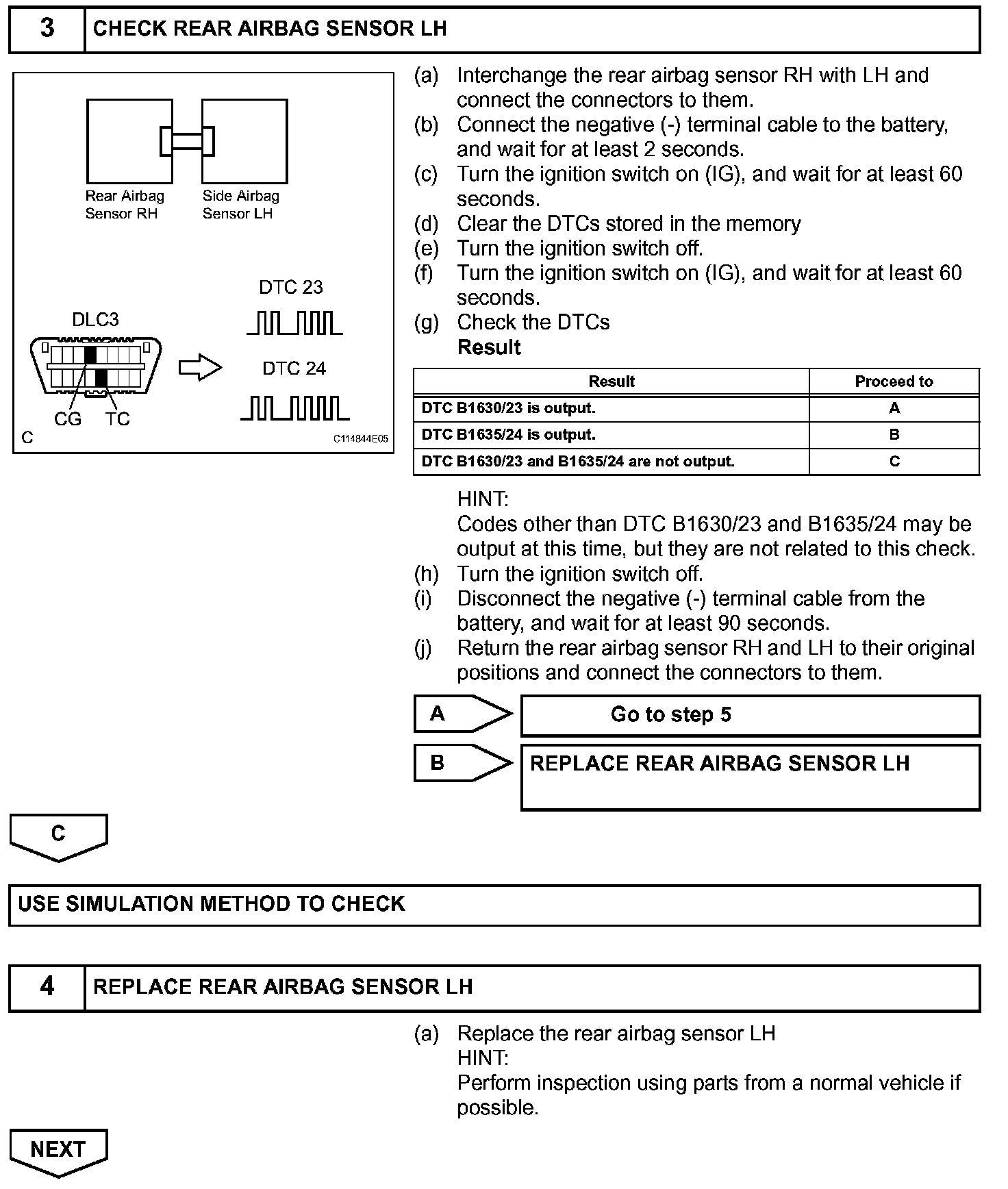

Step 3-4:

Step 5:

INSPECTION PROCEDURE
