Airbag System

DTC B1653/35 Seat Position Airbag Sensor Circuit Malfunction

DESCRIPTION

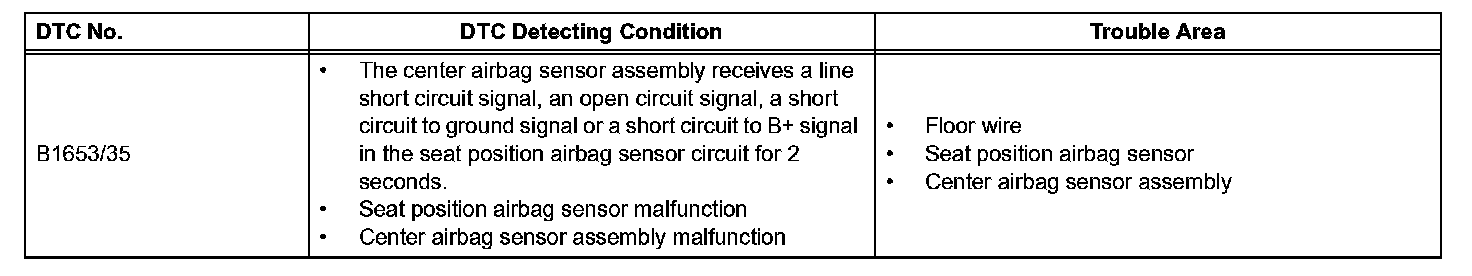

DTC Detecting Condition:

The seat position airbag sensor circuit consists of the center airbag sensor assembly and the seat position airbag sensor.

DTC B1653/35 is recorded when a malfunction is detected in the seat position airbag sensor circuit.

Wiring Diagram:

Step 1-3:

Step 4-5:

Step 6-7:

Step 8-9:

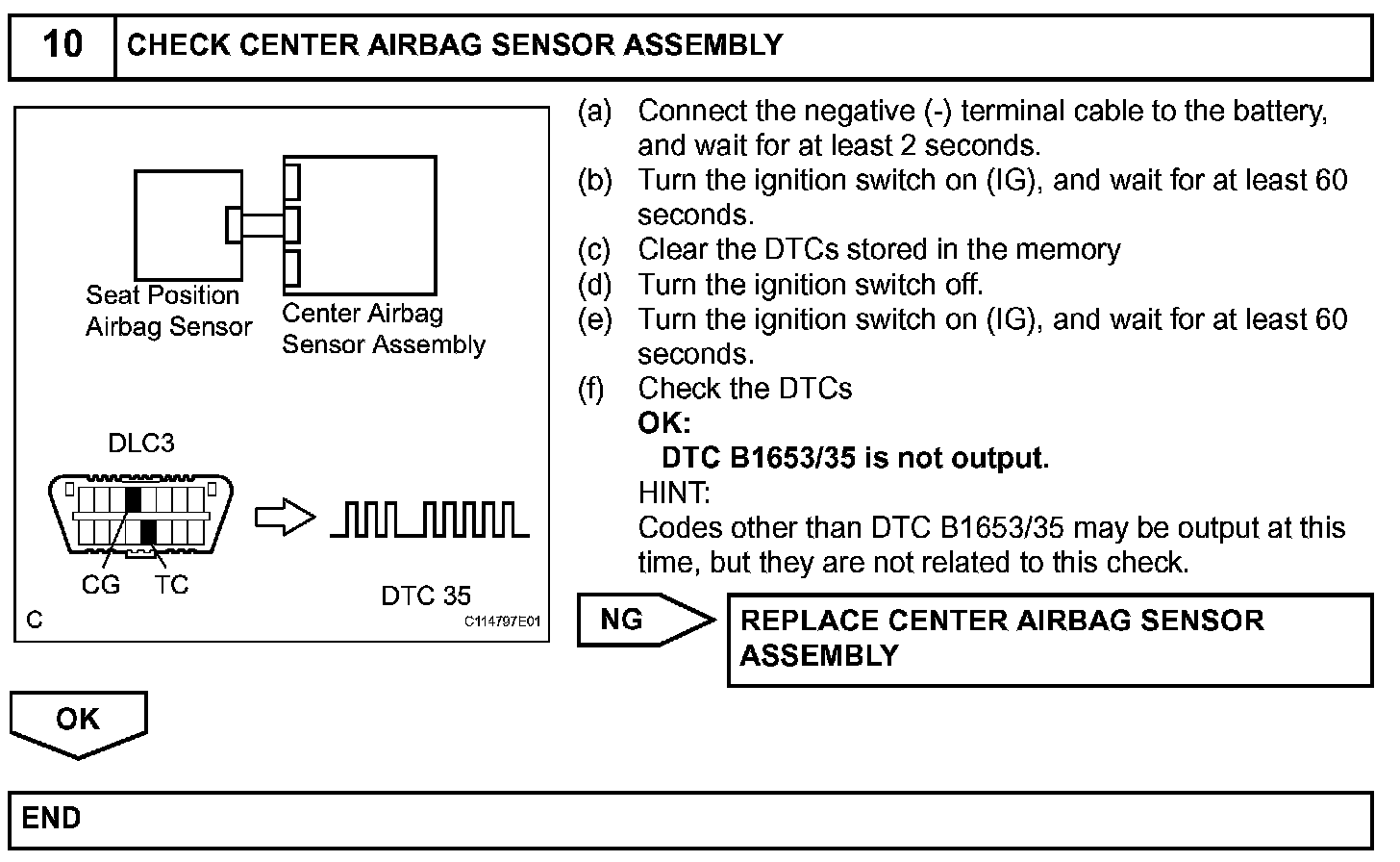

Step 10:

INSPECTION PROCEDURE
