Control Assembly: Service and Repair
REMOVAL1. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transaxle)
2. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle)
3. REMOVE NO. 1 INSTRUMENT CLUSTER FINISH PANEL GARNISH
4. REMOVE NO. 2 INSTRUMENT CLUSTER FINISH PANEL GARNISH
5. REMOVE FLOOR SHIFT POSITION INDICATOR HOUSING SUB-ASSEMBLY (for Automatic Transaxle)
6. REMOVE UPPER CONSOLE PANEL (for Manual Transaxle)
7. REMOVE UPPER CONSOLE REAR PANEL SUB-ASSEMBLY (for Automatic Transaxle)
8. REMOVE UPPER CONSOLE REAR PANEL SUB-ASSEMBLY (for Manual Transaxle)
9. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY
10. REMOVE INSTRUMENT PANEL NO. 2 REGISTER ASSEMBLY
11. REMOVE RADIO RECEIVER WITH HEATER CONTROL ASSEMBLY (for Manual Air Conditioning System)
12. REMOVE NAVIGATION RECEIVER WITH HEATER CONTROL PANEL (for Automatic Air Conditioning System)
13. REMOVE RADIO NO. 1 BRACKET (for Manual Air Conditioning System)
14. REMOVE RADIO NO. 1 BRACKET (for Automatic Air Conditioning System)
15. REMOVE RADIO NO. 2 BRACKET (for Manual Air Conditioning System)
16. REMOVE RADIO NO. 2 BRACKET (for Automatic Air Conditioning System)
17. REMOVE AIR CONDITIONING CONTROL ASSEMBLY (for Manual Air Conditioning System)

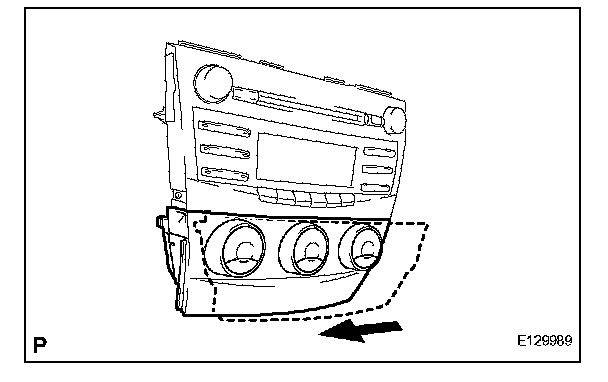

a. Remove the air conditioning control assembly as shown in the illustration.
18. REMOVE AIR CONDITIONING CONTROL ASSEMBLY (for Automatic Air Conditioning System)

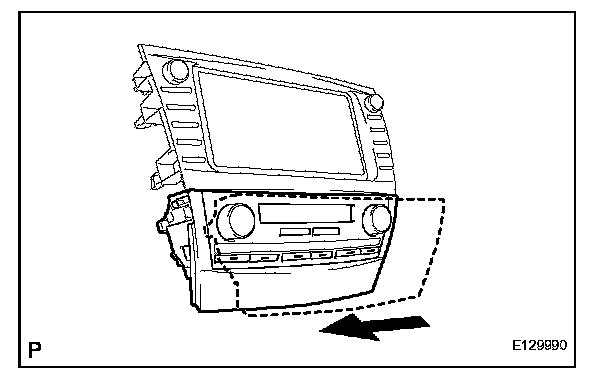

a. Remove the air conditioning control assembly as shown in the illustration.
INSTALLATION
1. INSTALL AIR CONDITIONING CONTROL ASSEMBLY (for Manual Air Conditioning System)

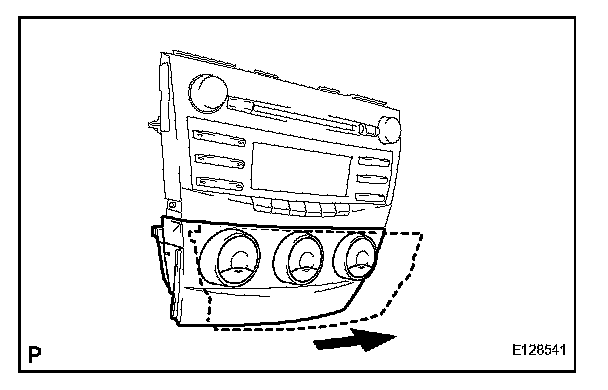

a. Install the air conditioning control assembly as shown in the illustration.
2. INSTALL AIR CONDITIONING CONTROL ASSEMBLY (for Automatic Air Conditioning System)
a. Install the air conditioning control assembly as shown in the illustration.
3. INSTALL RADIO NO. 2 BRACKET (for Manual Air Conditioning System)
4. INSTALL RADIO NO. 2 BRACKET (for Automatic Air Conditioning System)
5. INSTALL RADIO NO. 1 BRACKET (for Manual Air Conditioning System)
6. INSTALL RADIO NO. 1 BRACKET (for Automatic Air Conditioning System)
7. INSTALL RADIO RECEIVER WITH HEATER CONTROL ASSEMBLY (for Manual Air Conditioning System)
8. INSTALL NAVIGATION RECEIVER WITH HEATER CONTROL PANEL (for Automatic Air Conditioning System)
9. INSTALL INSTRUMENT PANEL NO. 2 REGISTER ASSEMBLY
10. INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY
11. INSTALL UPPER CONSOLE REAR PANEL SUB-ASSEMBLY (for Automatic Transaxle)
12. INSTALL UPPER CONSOLE REAR PANEL SUB-ASSEMBLY (for Manual Transaxle)
13. INSTALL FLOOR SHIFT POSITION INDICATOR HOUSING SUB-ASSEMBLY (for Automatic Transaxle)
14. INSTALL UPPER CONSOLE PANEL (for Manual Transaxle)
15. INSTALL NO. 2 INSTRUMENT CLUSTER FINISH PANEL GARNISH
16. INSTALL NO. 1 INSTRUMENT CLUSTER FINISH PANEL GARNISH
17. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transaxle)
18. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle)
