Air Fuel Ratio Sensor

REMOVAL

REMOVE AIR FUEL RATIO SENSOR

a. Disconnect the 2 air fuel ratio sensor connectors.

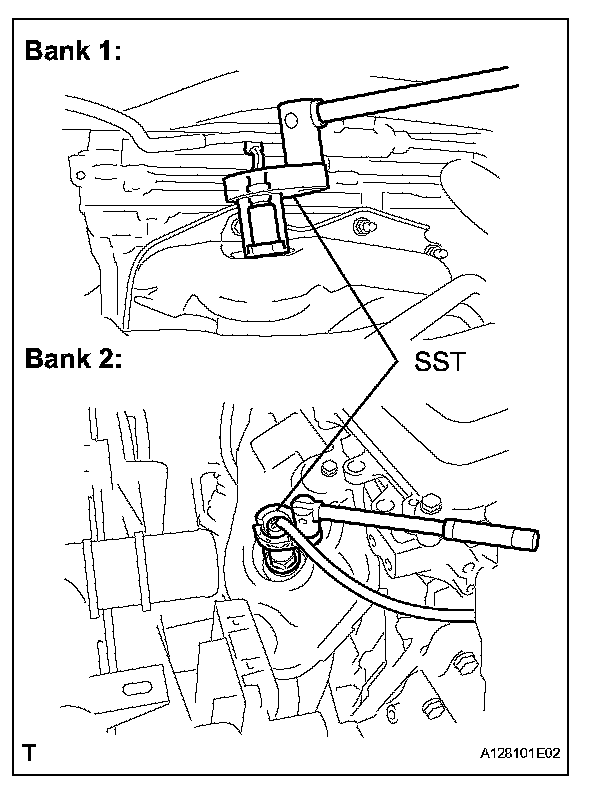

b. Using SST, remove the 2 air fuel ratio sensors from the front pipe assembly.

SST 09224-00010.

INSTALLATION

INSTALL AIR FUEL RATIO SENSOR

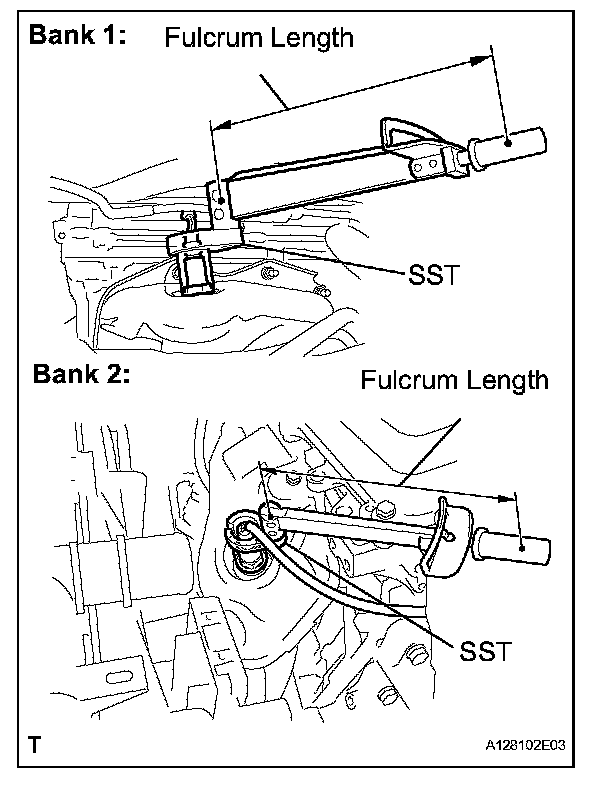

a. Using SST, install the 2 air fuel ratio sensors to the front pipe assembly.

SST 09224-00010

Torque: 44 N.m (449 kgf.cm, 32 ft.lbf)

b. Connect the 2 air fuel ratio sensor connectors.
