Heated Oxygen Sensor

REMOVAL

1. REMOVE ENGINE UNDER COVER LH
2. REMOVE ENGINE UNDER COVER RH
3. REMOVE FRONT EXHAUST PIPE ASSEMBLY

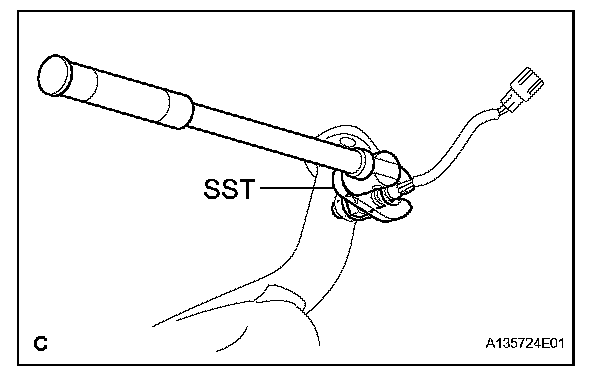

4. REMOVE HEATED OXYGEN SENSOR (for Bank 1)




a. Using SST, remove the oxygen sensor.

SST 09224-00010

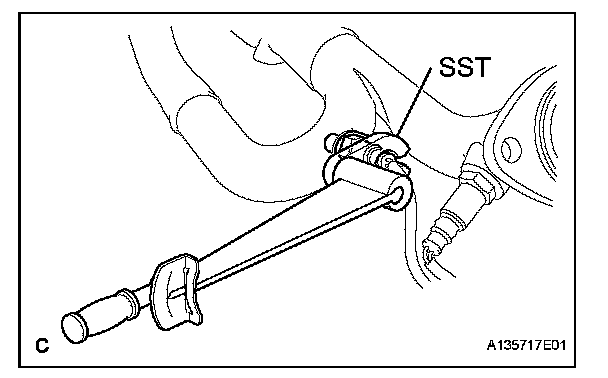

5. REMOVE HEATED OXYGEN SENSOR (for Bank 2)




a. Using SST, remove the oxygen sensor.

SST 09224-00010

INSTALLATION

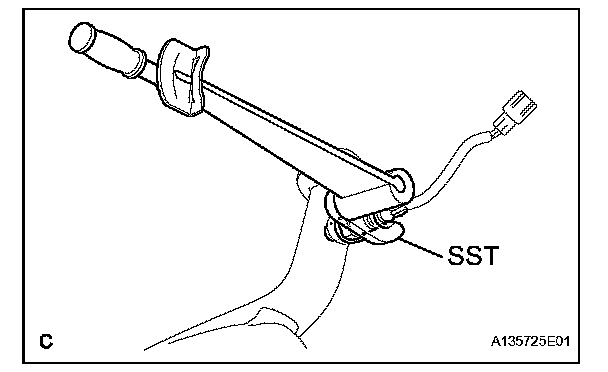

1. INSTALL HEATED OXYGEN SENSOR (for Bank 2)




a. Using SST, install the heated oxygen sensor.

SST 09224-00010

Torque: 44 N.m (449 kgf.cm, 32 ft.lbf)

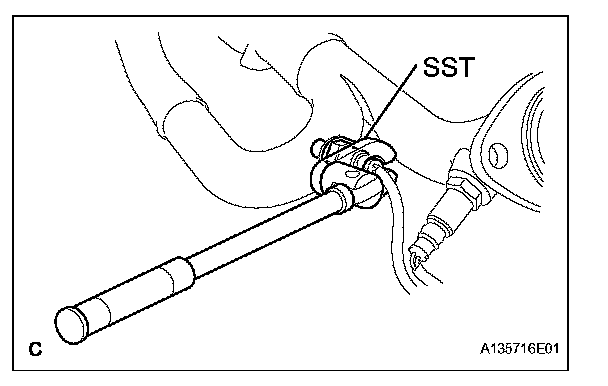

2. INSTALL HEATED OXYGEN SENSOR (for Bank 1)




a. Using SST, install the heated oxygen sensor.

SST 09224-00010

3. INSTALL FRONT EXHAUST PIPE ASSEMBLY
4. INSTALL ENGINE UNDER COVER LH
5. INSTALL ENGINE UNDER COVER RH
