ACTIVE TEST

HINT: Performing an ACTIVE TEST enables components including the relays, VSV (Vacuum Switching Valve) and actuators, to be operated without removing any parts. The ACTIVE TEST can be performed with an intelligent tester. Performing an ACTIVE TEST as the first step in troubleshooting is one method of shortening diagnostic time.

DATA LIST can be displayed during ACTIVE TEST.

a. Connect the intelligent tester to the DLC3.
b. Turn the ignition switch on (IG).
c. Turn the tester on.
d. Enter the following menus: DIAGNOSIS / ENHANCED OBD II / ACTIVE TEST.

Part 1:

Part 2:

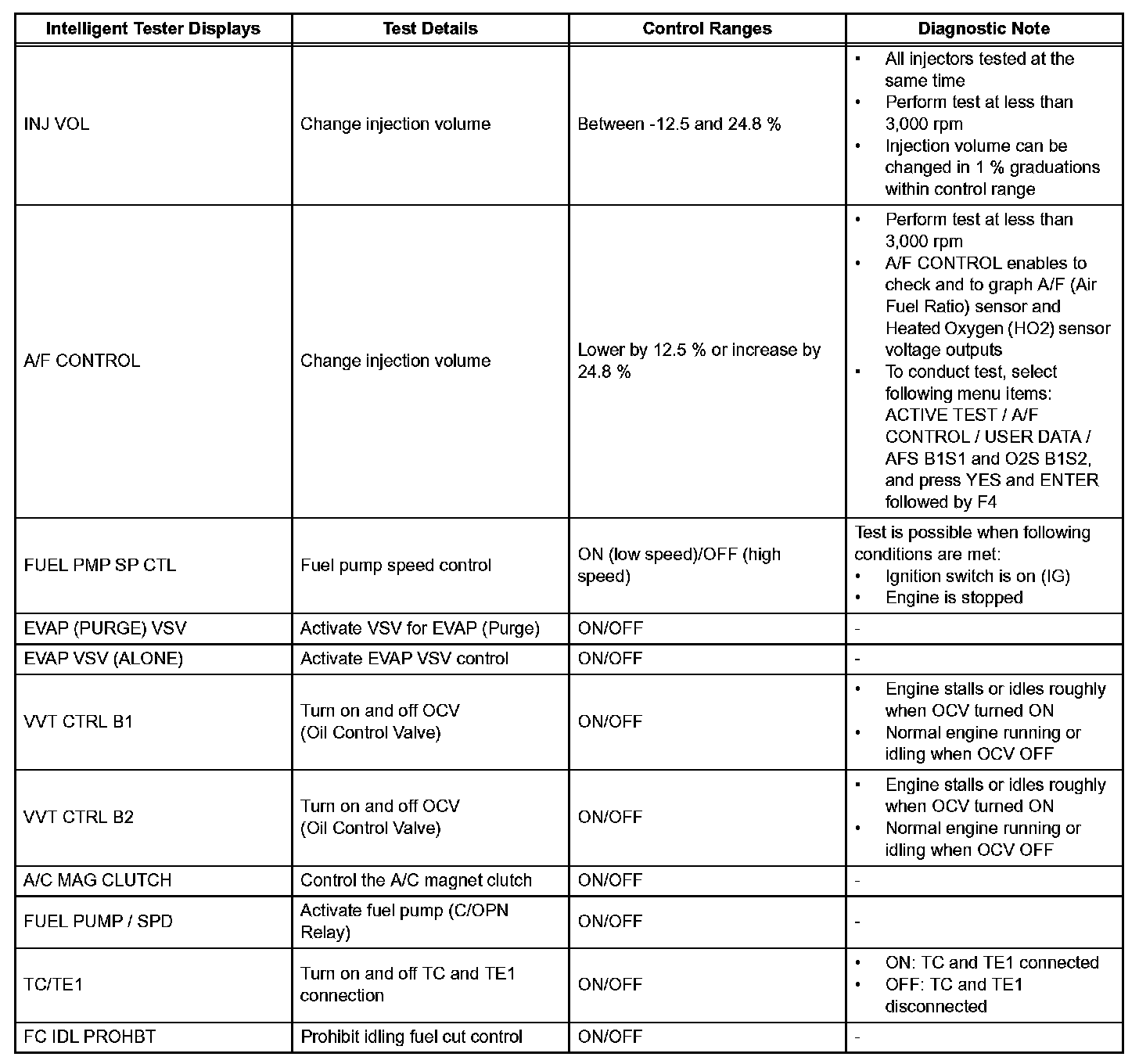

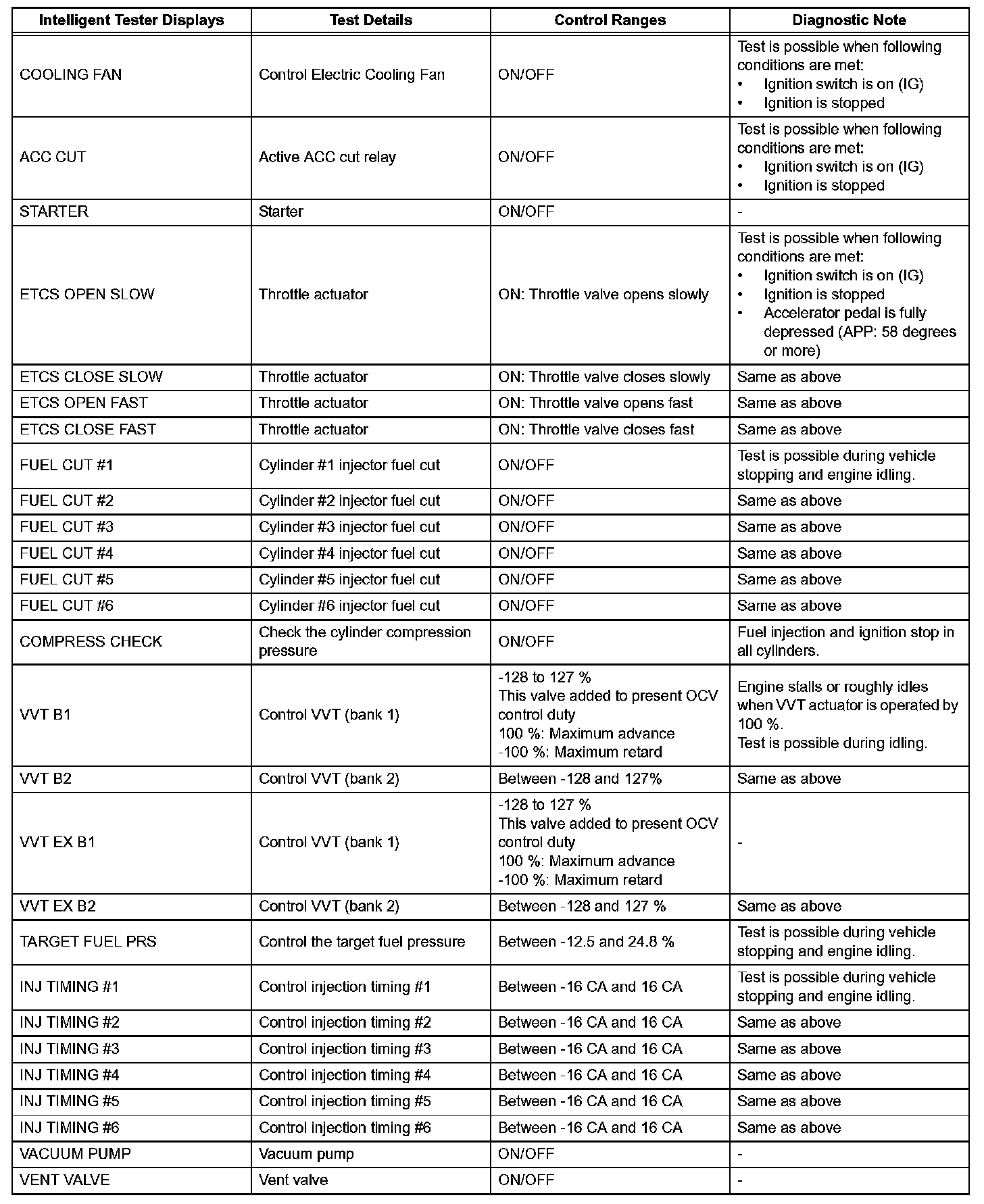

e. Perform the ACTIVE TEST by referring to the table.
