Transmission Position Sensor/Switch: Testing and Inspection

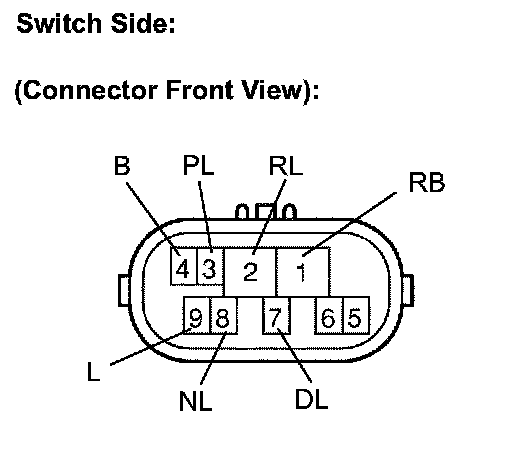

PARK / NEUTRAL POSITION SWITCH INSPECTION Switch Side:
1.
INSPECT PARK/NEUTRAL POSITION SWITCH ASSEMBLY
(a)
Measure the resistance according to the values(s) in the table below when the shift lever is moved to each position.

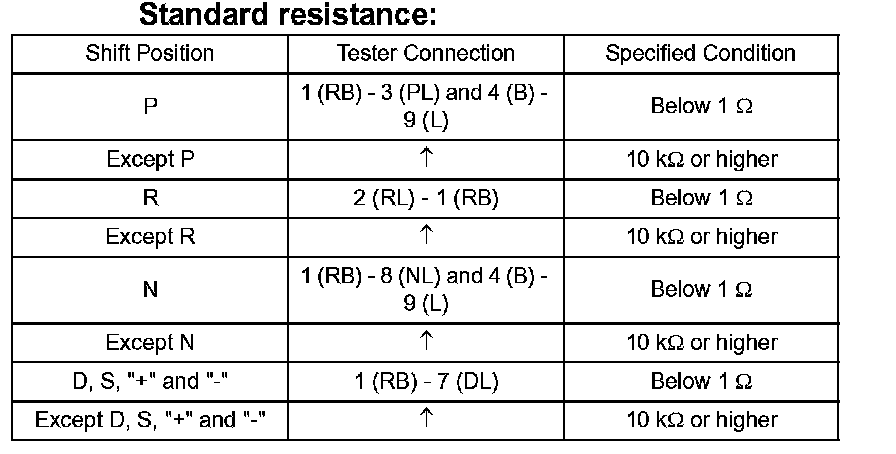

Standard resistance:
If operation cannot be done as specified, replace the park/neutral position switch.
