Ignition Relay: Testing and Inspection

INSPECTION

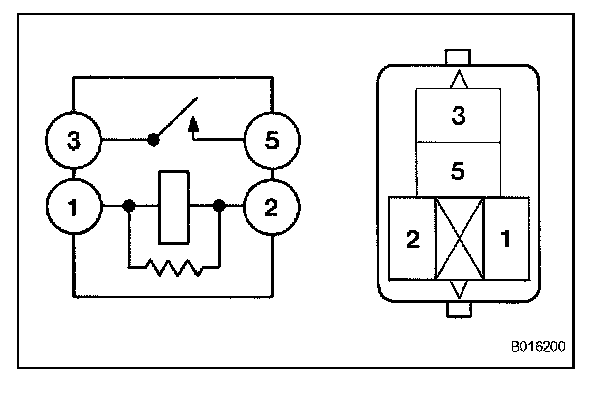

INSPECT IG2 RELAY

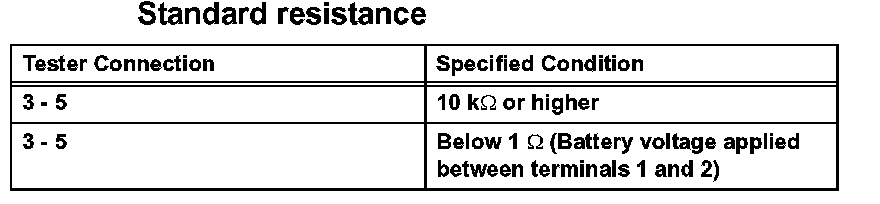

Using an ohmmeter, measure the resistance according to the value(s) in the table given.

If the result is not as specified, replace the relay.
