Oil Pan, Engine

Oil Pan

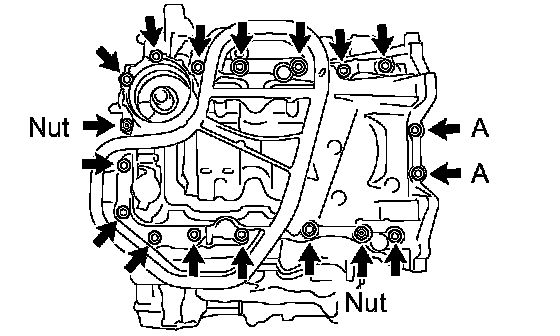

Install the oil pan with the 16 bolts and 2 nuts.
Torque:
Bolt A 10 Nm (102 kgf-cm, 7 ft. lbs.)
Other than bolt A 21 Nm (214 kgf-cm, 15 ft. lbs.)

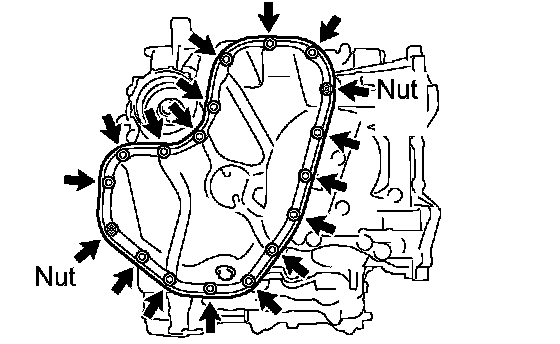

NO. 2 OIL PAN SUB-ASSEMBLY





Install the oil pan with the 16 bolts and 2 nuts.
Torque 10 Nm (102 kgf-cm, 7 ft. lbs.)
