Ignition Relay (W/ Smart Key System)

IGNITION RELAY (W/ Smart Key System)

ON-VEHICLE INSPECTION

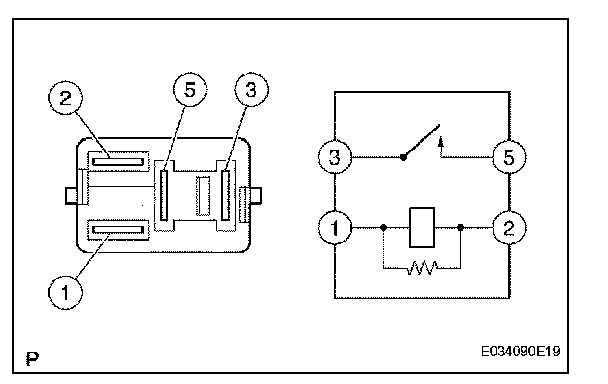

INSPECT NO. 2 IGNITION RELAY

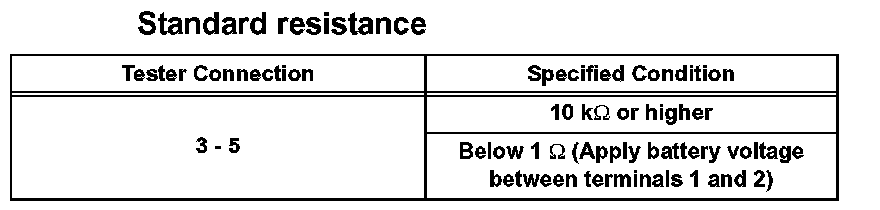

Using an ohmmeter, measure the resistance between each terminal.

If the result is not as specified, replace the No. 2 ignition relay.
