Toyota Vehicle Intrusion Protection System

ECU Power Source Circuit

DESCRIPTION
This circuit provides power to operate the TVIP ECU.

Wiring Diagram:

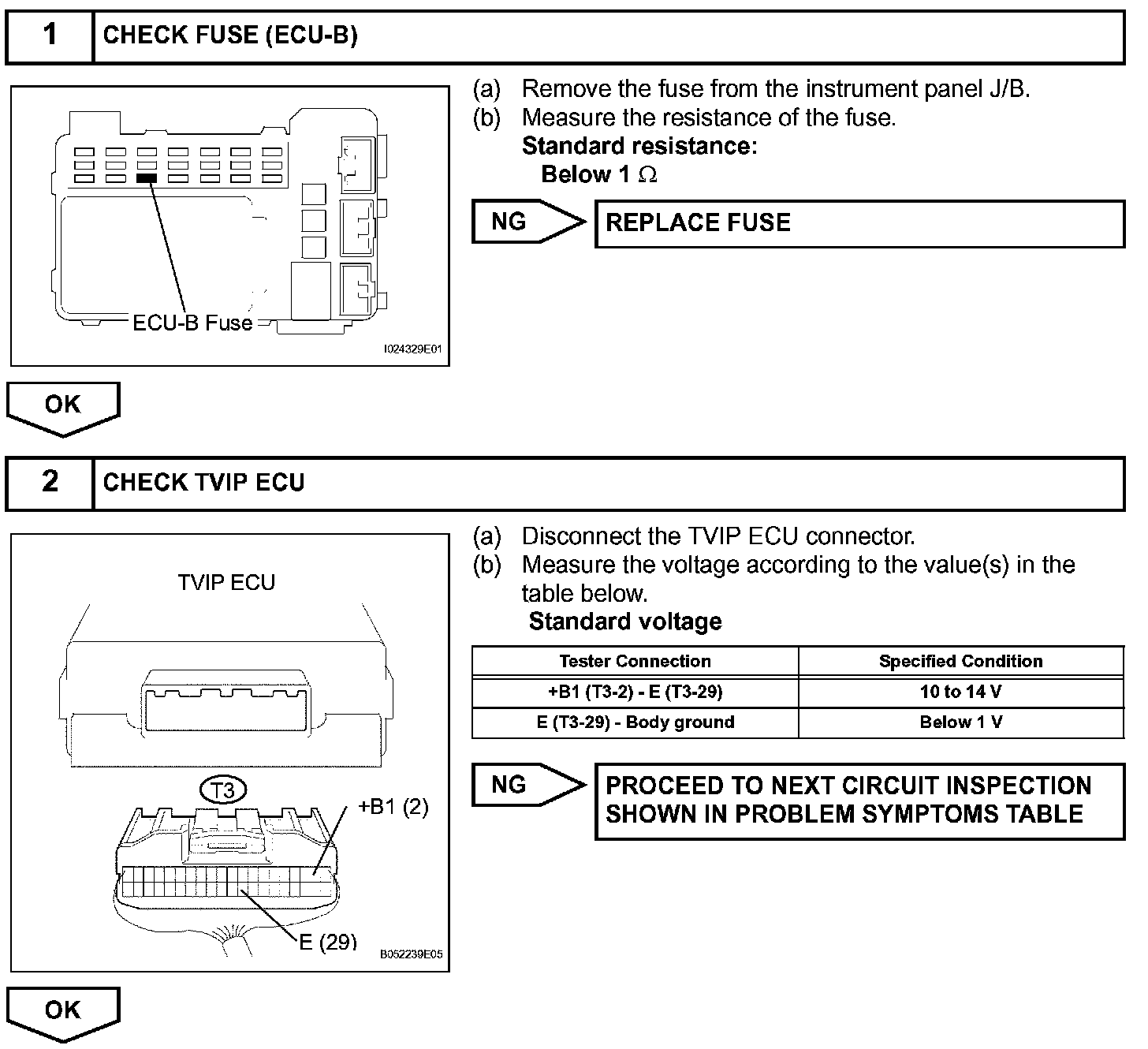

Step 1-2:

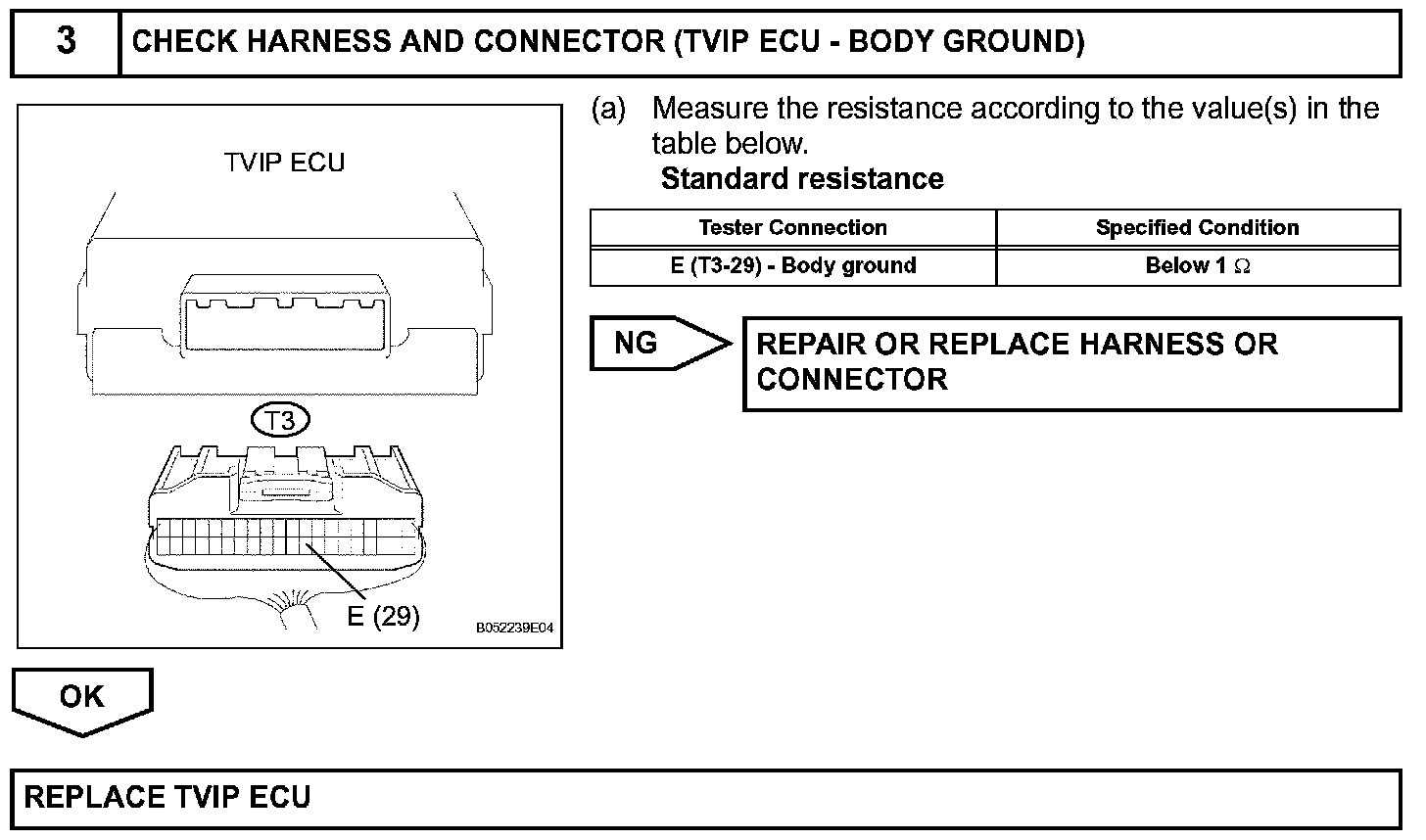

Step 3:




INSPECTION PROCEDURE
