Overhaul
DISASSEMBLY1. REMOVE MAGNETIC CLUTCH ASSEMBLY
a. Place the compressor and magnetic clutch in vise.

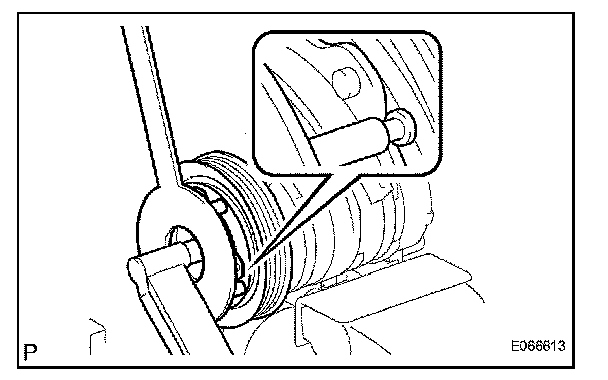

b. Using SST remove the bolt.
SST 95047-10310
c. Remove the magnetic clutch hub and magnetic clutch washers.
HINT: There is no set number of magnetic clutch washers since they are used for adjustment.

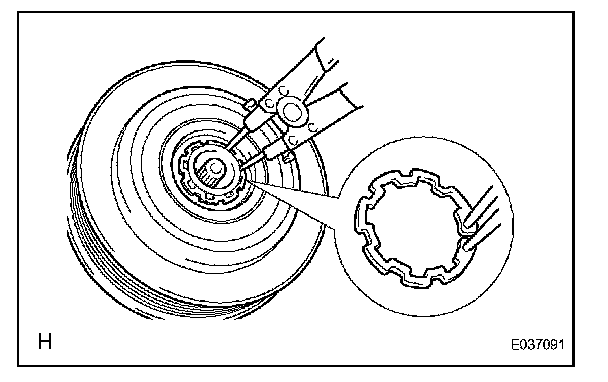

d. Using a snap ring expander, remove the snap ring and magnetic clutch rotor.
e. Remove the screw, disconnect the connector.

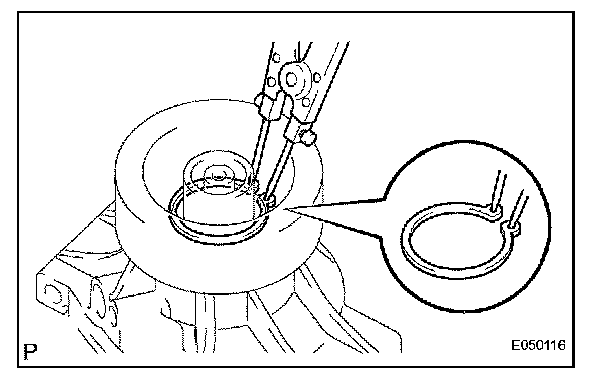

f. Using a snap ring expander, remove the snap ring and magnetic clutch stator.
REASSEMBLY
1. INSTALL MAGNETIC CLUTCH ASSEMBLY
a. Matching the parts shown in the illustration, install the magnetic clutch stator.
b. Using a snap ring expander, install a new snap ring with the chamfered side facing up.
SST 95047-10310
c. Install the screw, connect the connector.

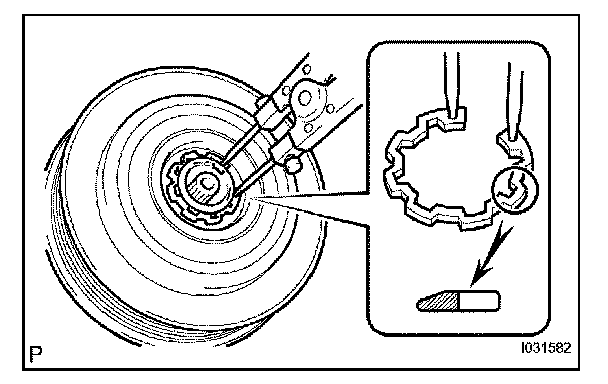

d. Using a snap ring expander, install the magnetic clutch rotor and a new snap ring with the chamfered side facing up.
e. Install the magnetic clutch washer and magnetic clutch hub.
NOTE: Do not change the combination of the magnetic clutch washers used before disassembly.

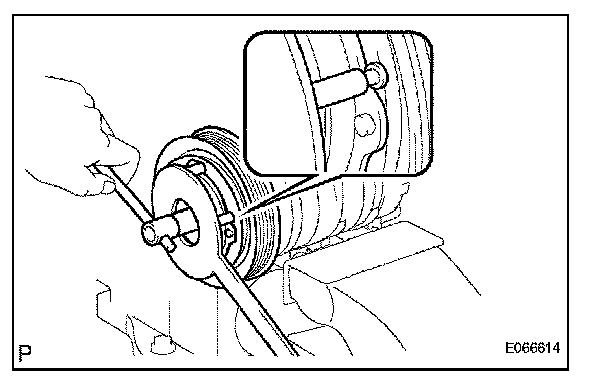

f. Using SST, secure the magnetic clutch hub and tighten it with the bolt.
Torque: 18 N.m (183 kgf.cm, 13 ft.lbf)
NOTE: Ensure that there is no foreign matter or oil on the compressor shaft, bolt, and magnetic clutch hub.
