Home >> Toyota >> 2007 >> Corolla L4-1.8L (1ZZ-FE) >> Repair and Diagnosis >> Windows and Glass >> Windows >> Power Window Switch >> Locations

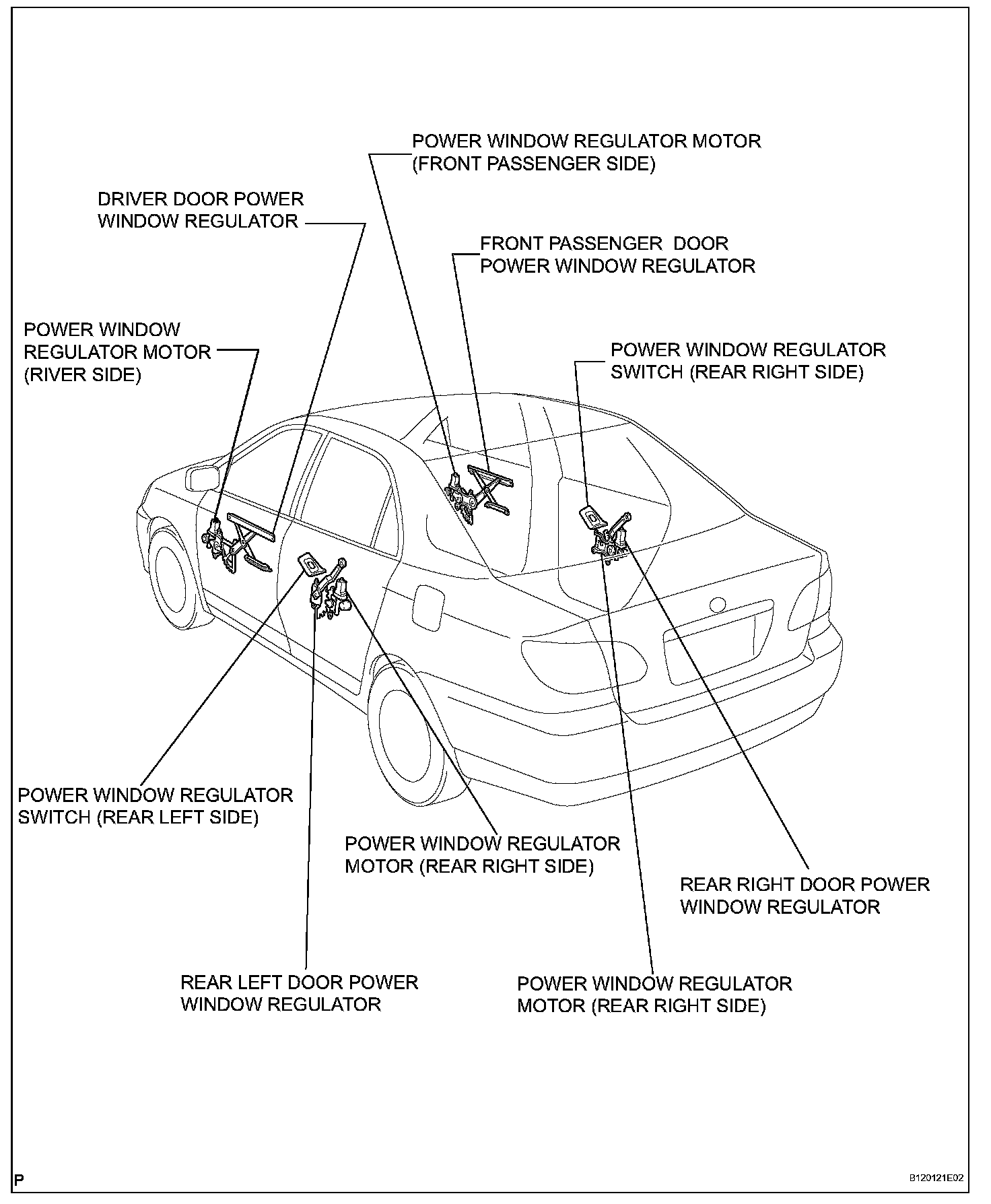

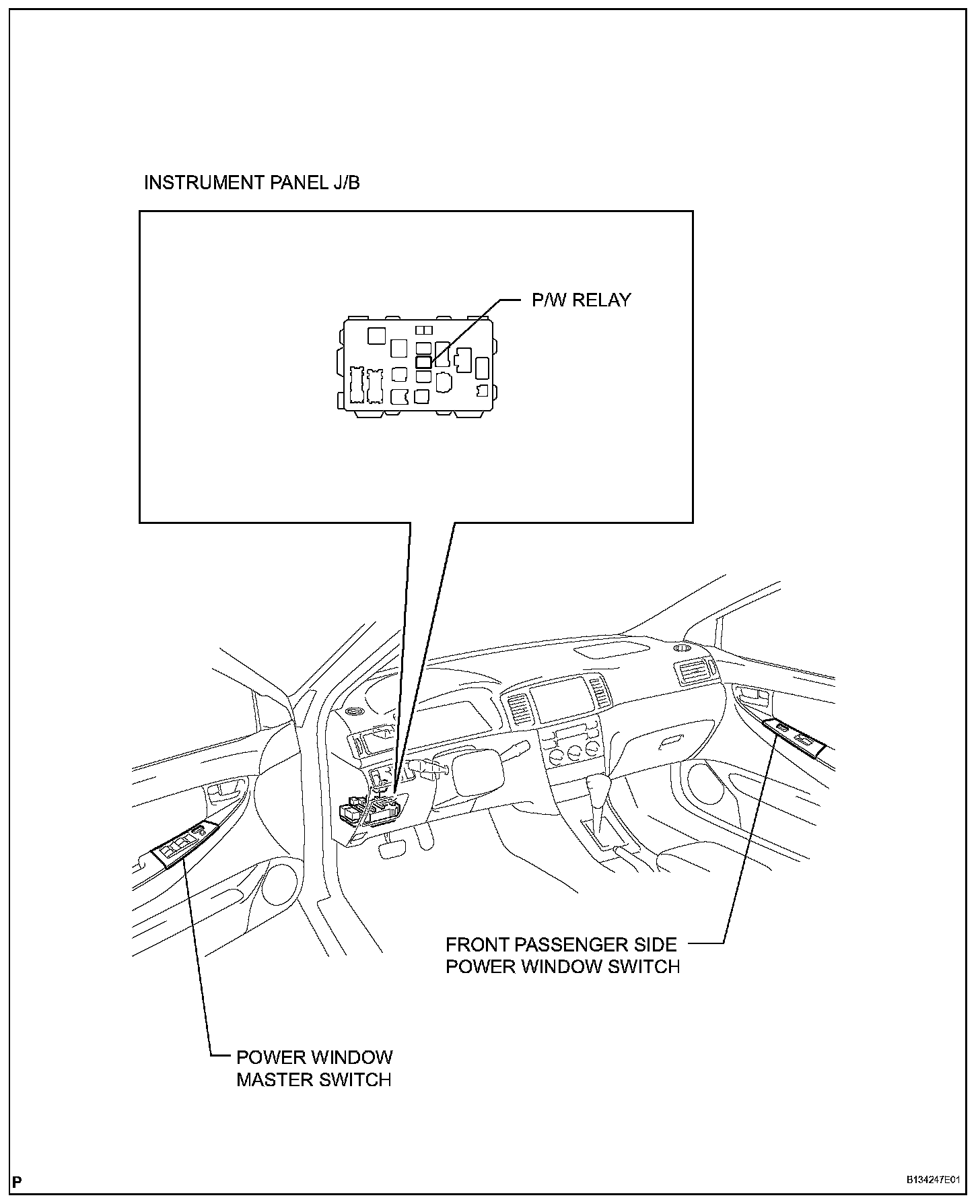

Power Window Switch: Locations

ABS - Pe:



Mo - Tw:



Wireless Door Lock Control System:



Power Window Control System:



Power Window Control System:
