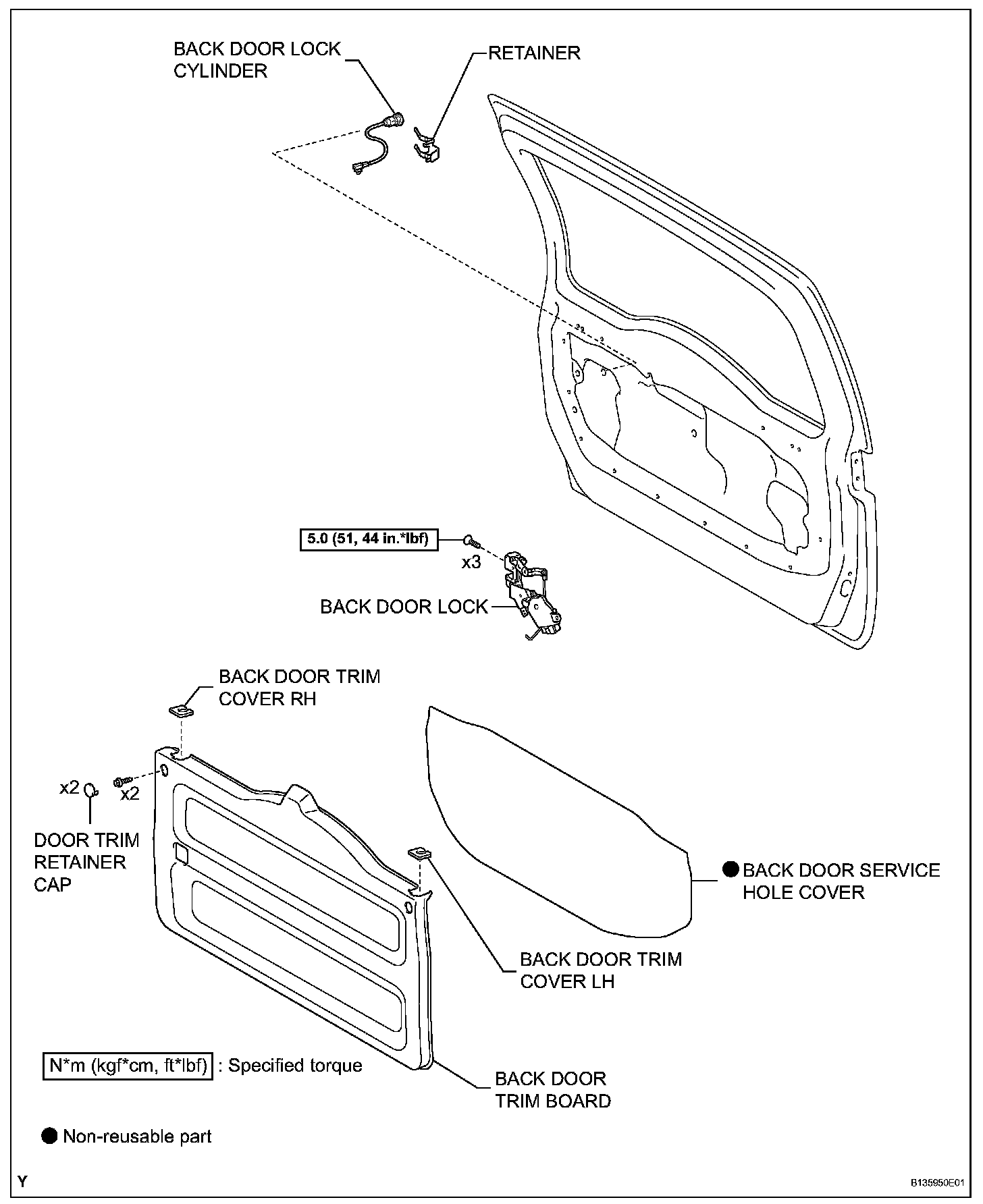

BACK DOOR LOCK

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
2. REMOVE BACK DOOR TRIM COVER RH
3. REMOVE BACK DOOR TRIM COVER LH

HINT: Use the same procedure as for the RH side.

4. REMOVE DOOR TRIM RETAINER CAP
5. REMOVE BACK DOOR TRIM BOARD
6. REMOVE BACK DOOR SERVICE HOLE COVER




7. REMOVE BACK DOOR LOCK

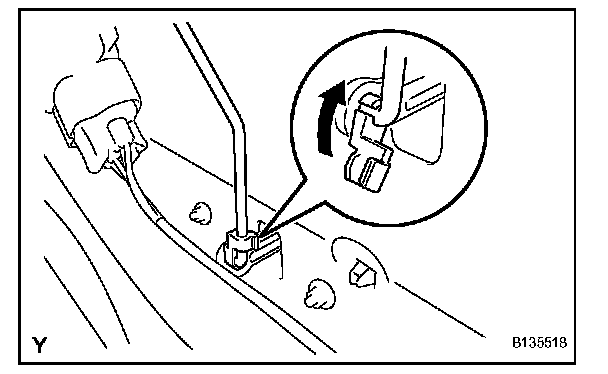

a. Disconnect the back door lock rod as shown in the illustration.
b. Disconnect the connector.




c. Loosen bolt A.

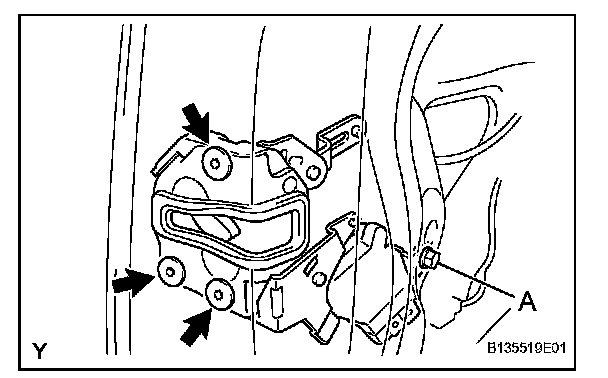

d. Using "Torx" socket wrench T30, remove the 3 screws and the back door lock.

NOTE: Do not drop or damage the back door lock when removing the screws.

HINT: Remove the back door lock through the service hole.




8. REMOVE BACK DOOR LOCK CYLINDER

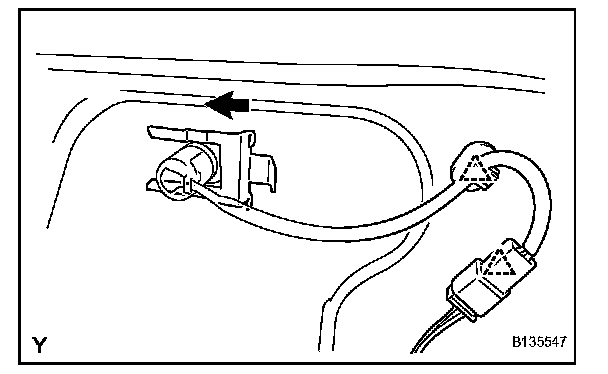

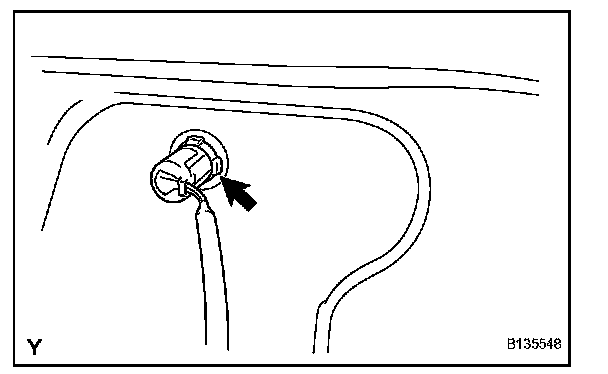

a. Disconnect the connector and the 2 clamps, then remove the retainer.




b. Remove the back door lock cylinder.

INSTALLATION




1. INSTALL BACK DOOR LOCK
a. Apply MP grease to the sliding and rotating areas of the back door lock.

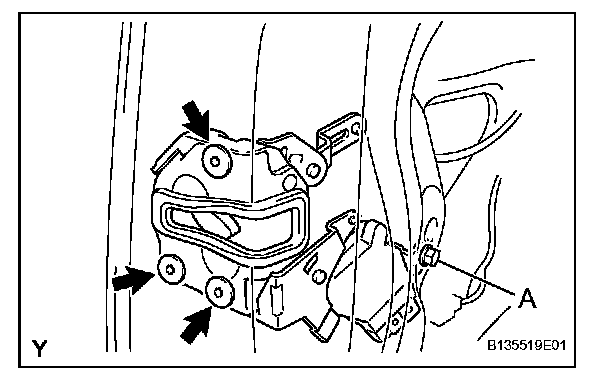

b. Using "Torx" socket wrench T30, install the back door lock with the 3 screws.

Torque: 5.0 N.m (51 kgf.cm, 44 in.lbf)

c. Tighten bolt A.

Torque: 5.0 N.m (51 kgf.cm, 44 in.lbf)

d. Connect the connector.




e. Connect the back door lock rod as shown in the illustration.




2. INSTALL BACK DOOR LOCK CYLINDER
a. Install the back door lock cylinder.

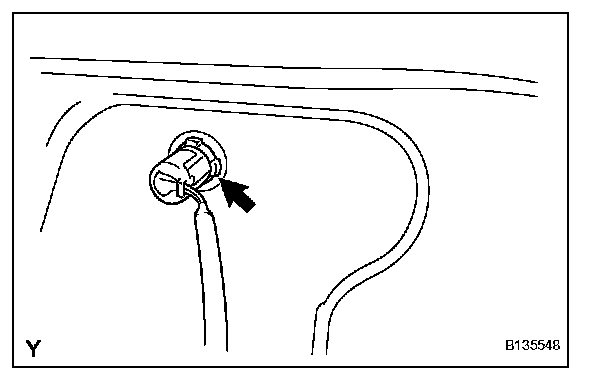

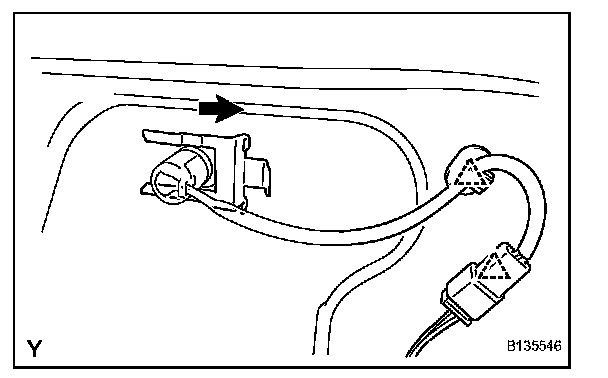

b. Install the retainer, then connect the 2 clamps.

3. INSTALL BACK DOOR SERVICE HOLE COVER
4. INSTALL BACK DOOR TRIM BOARD
5. INSTALL DOOR TRIM RETAINER CAP
6. INSTALL BACK DOOR TRIM COVER RH
7. INSTALL BACK DOOR TRIM COVER LH

HINT: Use the same procedure as for the RH side.

8. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Torque: 3.9 N.m (40 kgf.cm, 35 in.lbf)
