Door Control Switch (For Front Passenger Side)

Door Control Switch (for Front Passenger Side):

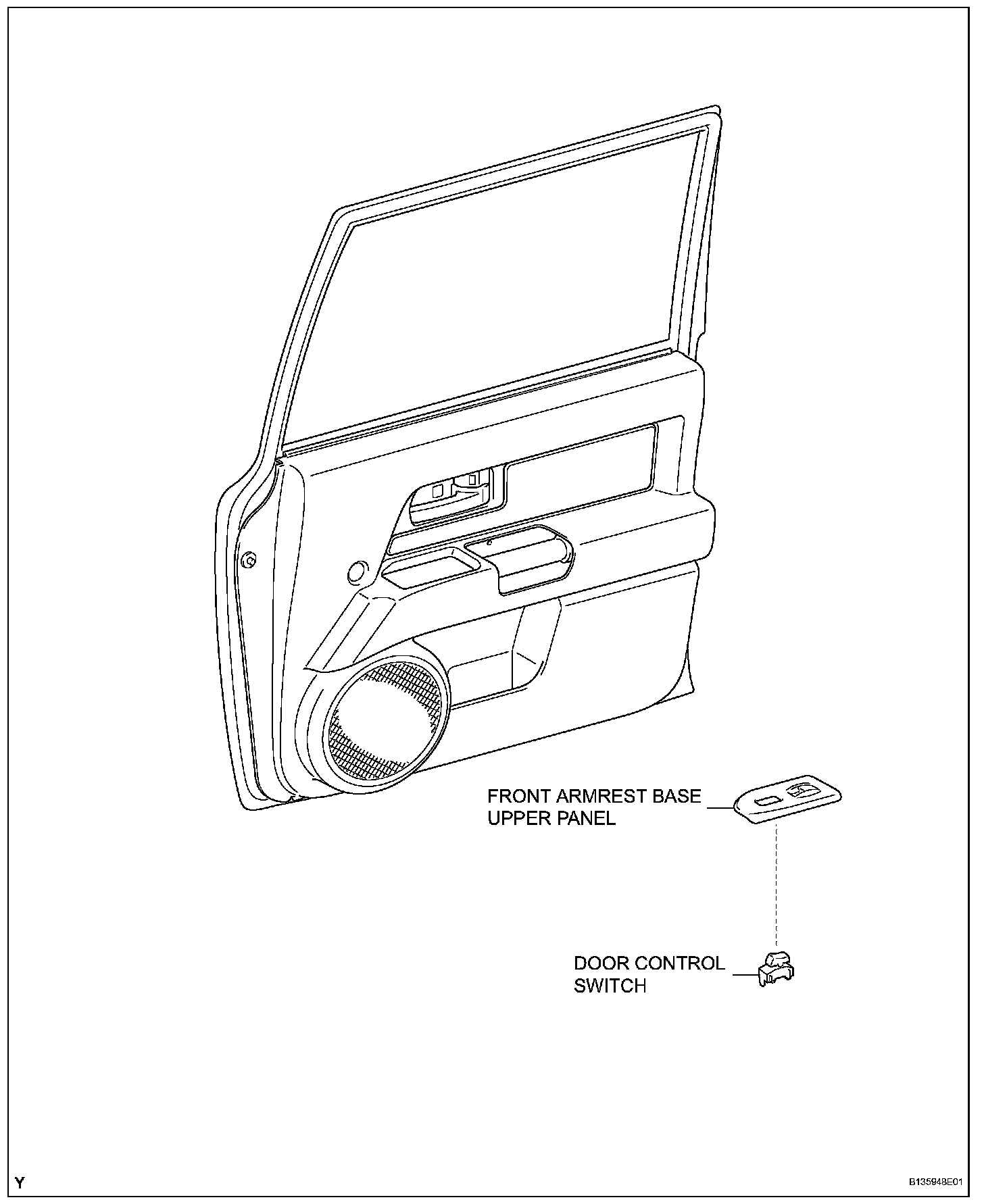

DOOR CONTROL SWITCH (for Front Passenger Side)

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
2. REMOVE FRONT ARMREST BASE UPPER PANEL




3. REMOVE DOOR CONTROL SWITCH

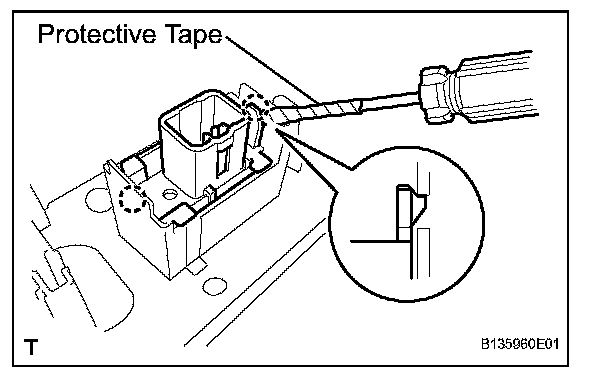

a. Using a screwdriver with its tip wrapped in protective tape, disengage the 2 claws and remove the door control switch.

INSTALLATION




1. INSTALL DOOR CONTROL SWITCH

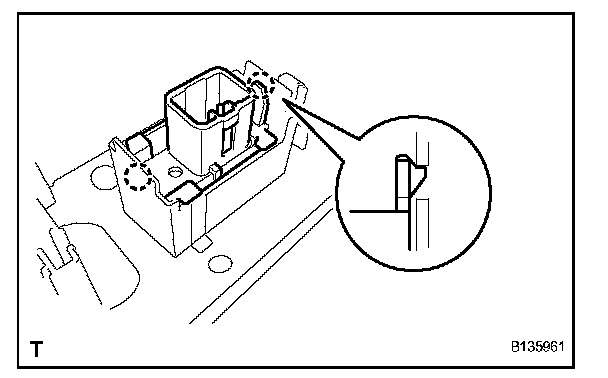

a. Engage the 2 claws and install the door control switch.

2. INSTALL FRONT ARMREST BASE UPPER PANEL
3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Torque: 3.9 N.m (40 kgf.cm, 35 in.lbf)
