DOOR LOCK UNLOCK WARNING SWITCH

REMOVAL

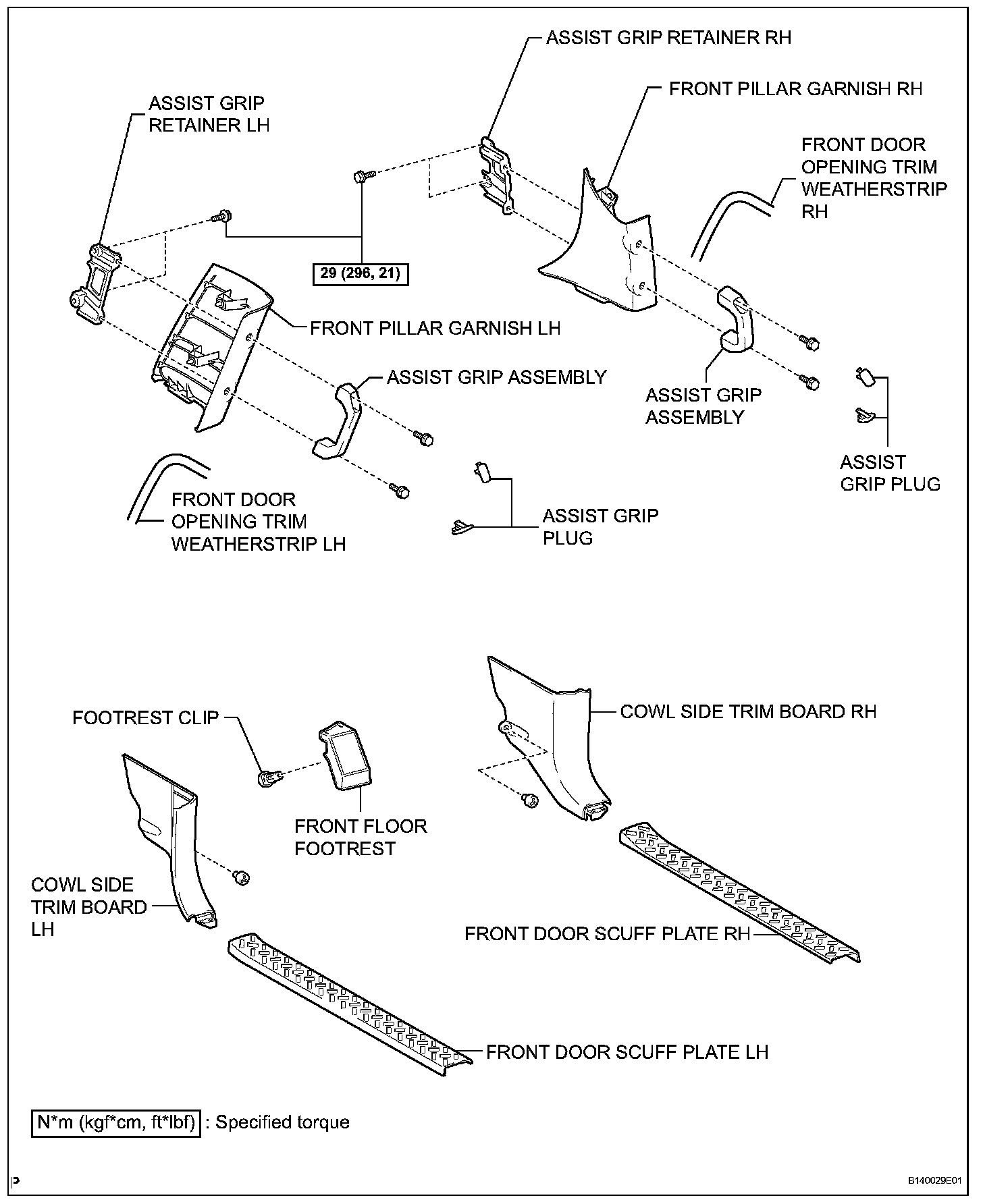

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
2. REMOVE FRONT DOOR SCUFF PLATE RH
3. REMOVE FRONT DOOR SCUFF PLATE LH
4. REMOVE FRONT FLOOR FOOTREST
5. REMOVE FOOTREST CLIP
6. REMOVE COWL SIDE TRIM BOARD RH
7. REMOVE COWL SIDE TRIM BOARD LH
8. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP LH
9. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP RH
10. REMOVE ASSIST GRIP PLUG
11. REMOVE ASSIST GRIP ASSEMBLY
12. REMOVE FRONT PILLAR GARNISH RH
13. REMOVE FRONT PILLAR GARNISH LH

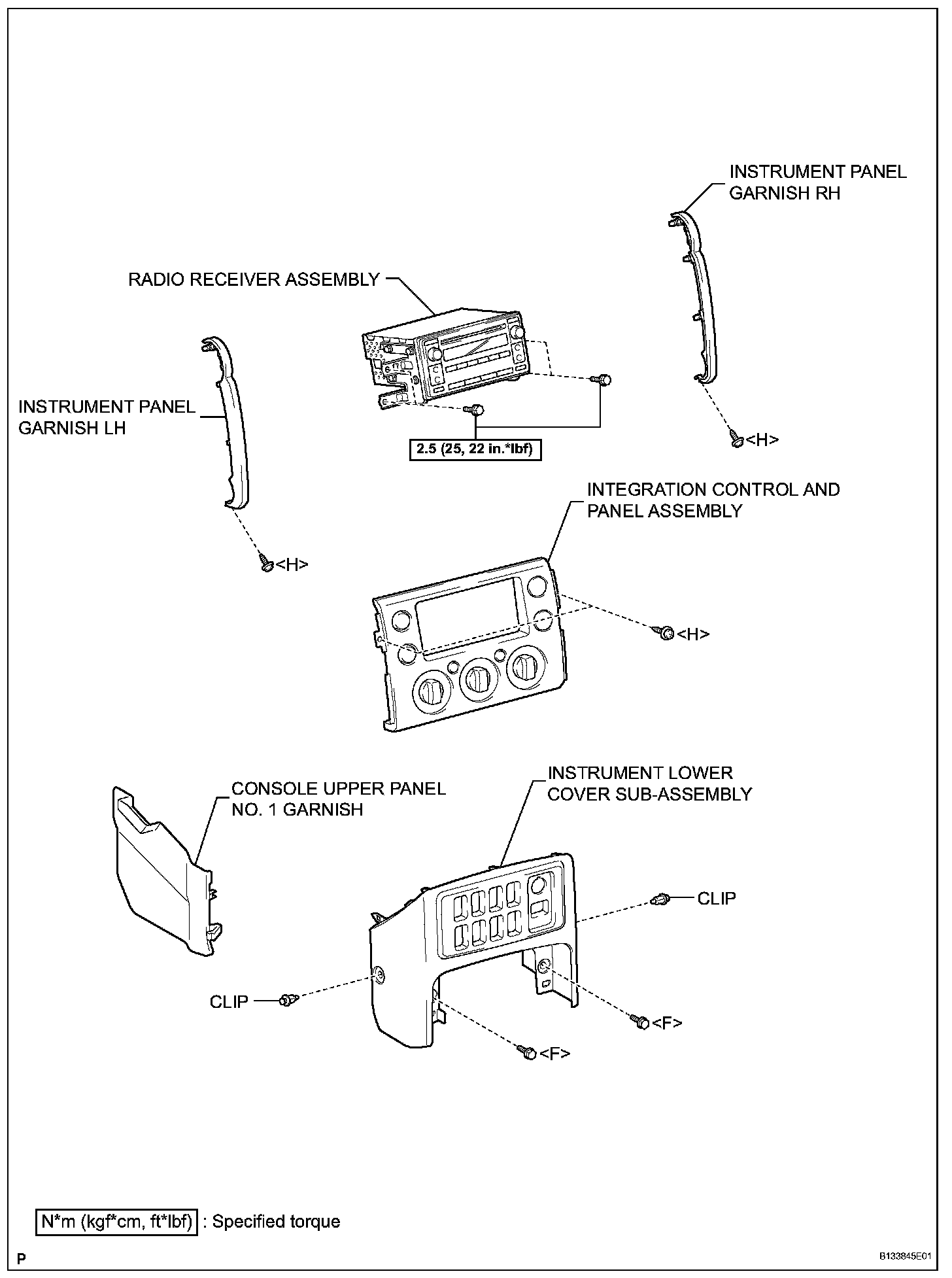

14. REMOVE INSTRUMENT PANEL GARNISH LH
15. REMOVE INSTRUMENT PANEL GARNISH RH
16. REMOVE INTEGRATION CONTROL AND PANEL ASSEMBLY
17. REMOVE RADIO RECEIVER ASSEMBLY
18. REMOVE PARKING BRAKE HOLE COVER SUBASSEMBLY
19. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transmission)
20. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for 4WD)

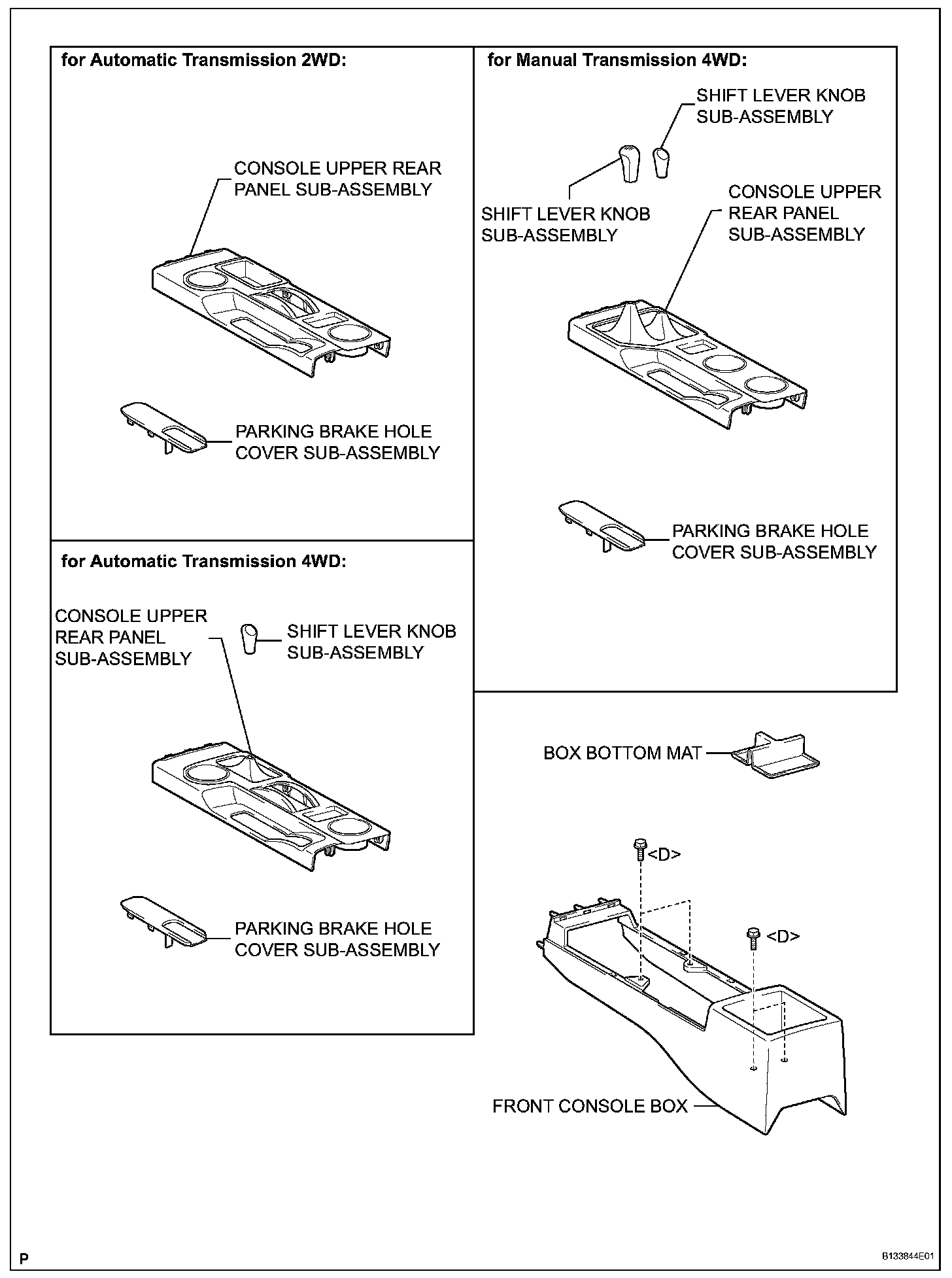

21. REMOVE CONSOLE UPPER REAR PANEL SUBASSEMBLY
22. REMOVE BOX BOTTOM MAT
23. REMOVE FRONT CONSOLE BOX
24. REMOVE CONSOLE UPPER PANEL NO. 1 GARNISH
25. REMOVE INSTRUMENT LOWER COVER SUBASSEMBLY

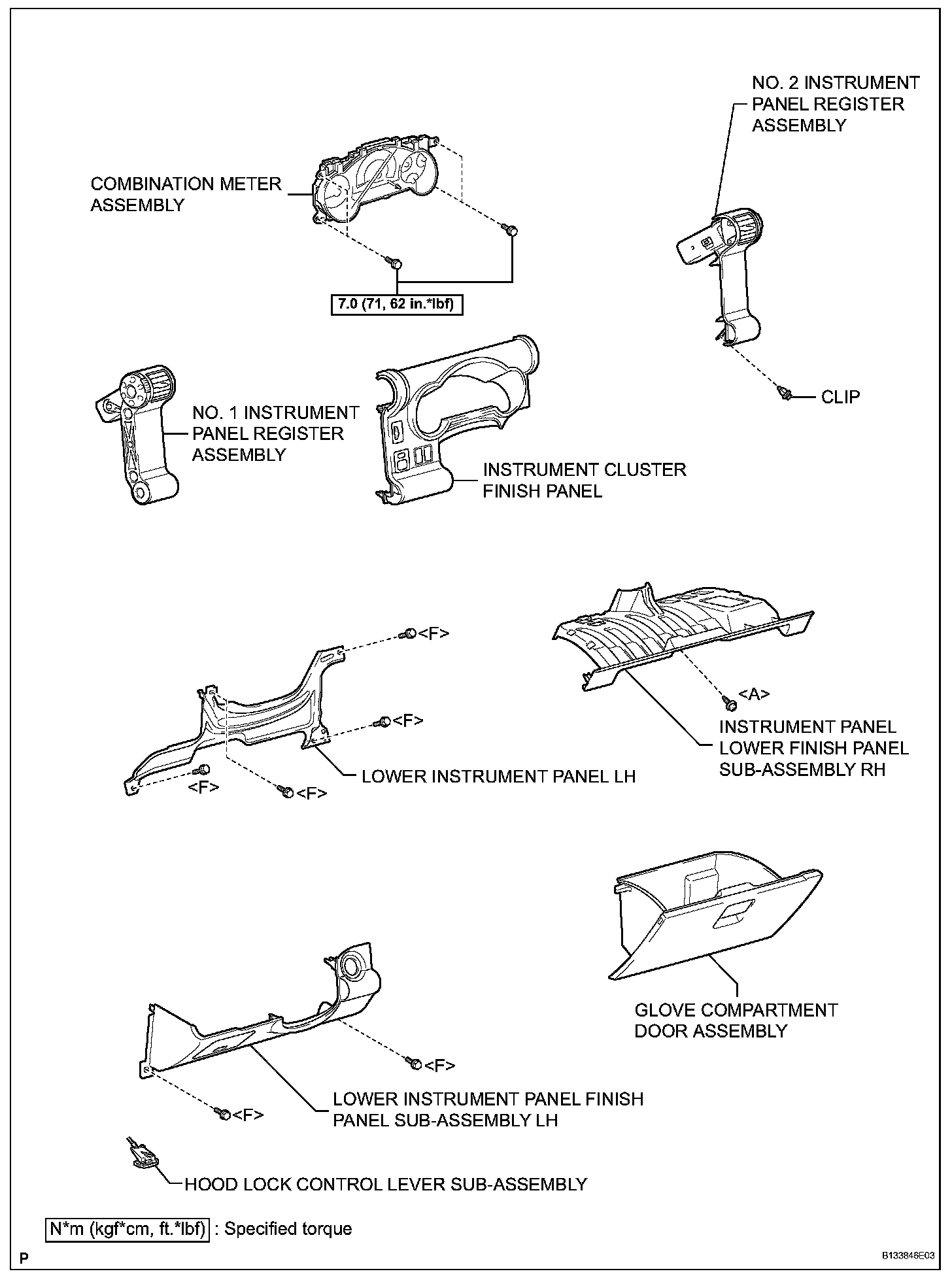

26. REMOVE NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY
27. REMOVE HOOD LOCK CONTROL LEVER SUBASSEMBLY
28. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY LH
29. REMOVE LOWER INSTRUMENT PANEL LH
30. REMOVE INSTRUMENT CLUSTER LOWER FINISH PANEL
31. REMOVE COMBINATION METER ASSEMBLY
32. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY
33. REMOVE INSTRUMENT PANEL LOWER FINISH PANEL SUB-ASSEMBLY RH
34. REMOVE NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY
35. REMOVE NO. 2 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY
36. REMOVE NO. 1 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY
37. REMOVE FRONT NO. 2 SPEAKER ASSEMBLY
38. REMOVE ASSIST GRIP RETAINER RH
39. REMOVE ASSIST GRIP RETAINER LH
40. DISCONNECT PASSENGER AIRBAG CONNECTOR

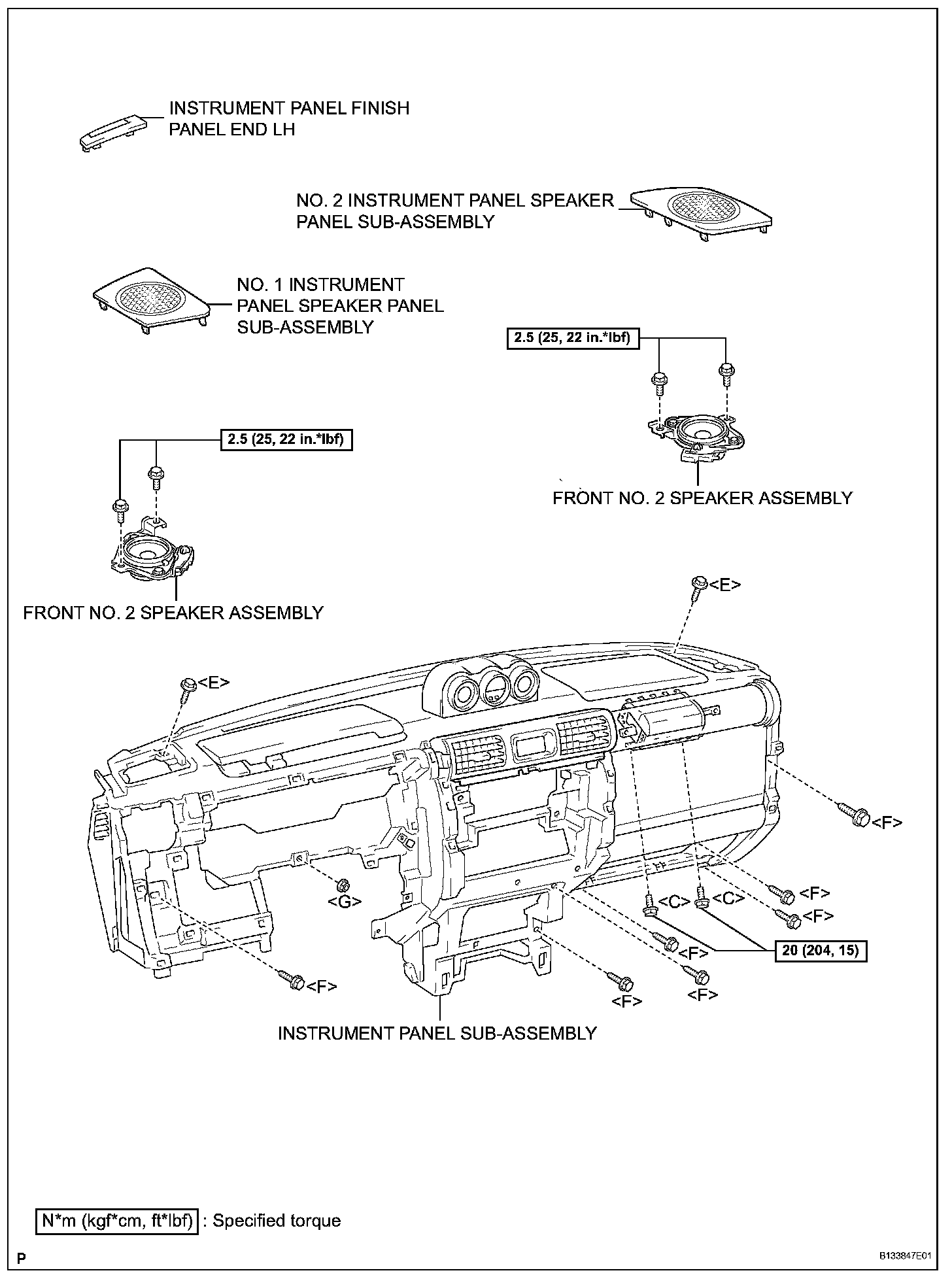

41. REMOVE INSTRUMENT PANEL SUB-ASSEMBLY
42. REMOVE INSTRUMENT PANEL FINISH PANEL END LH

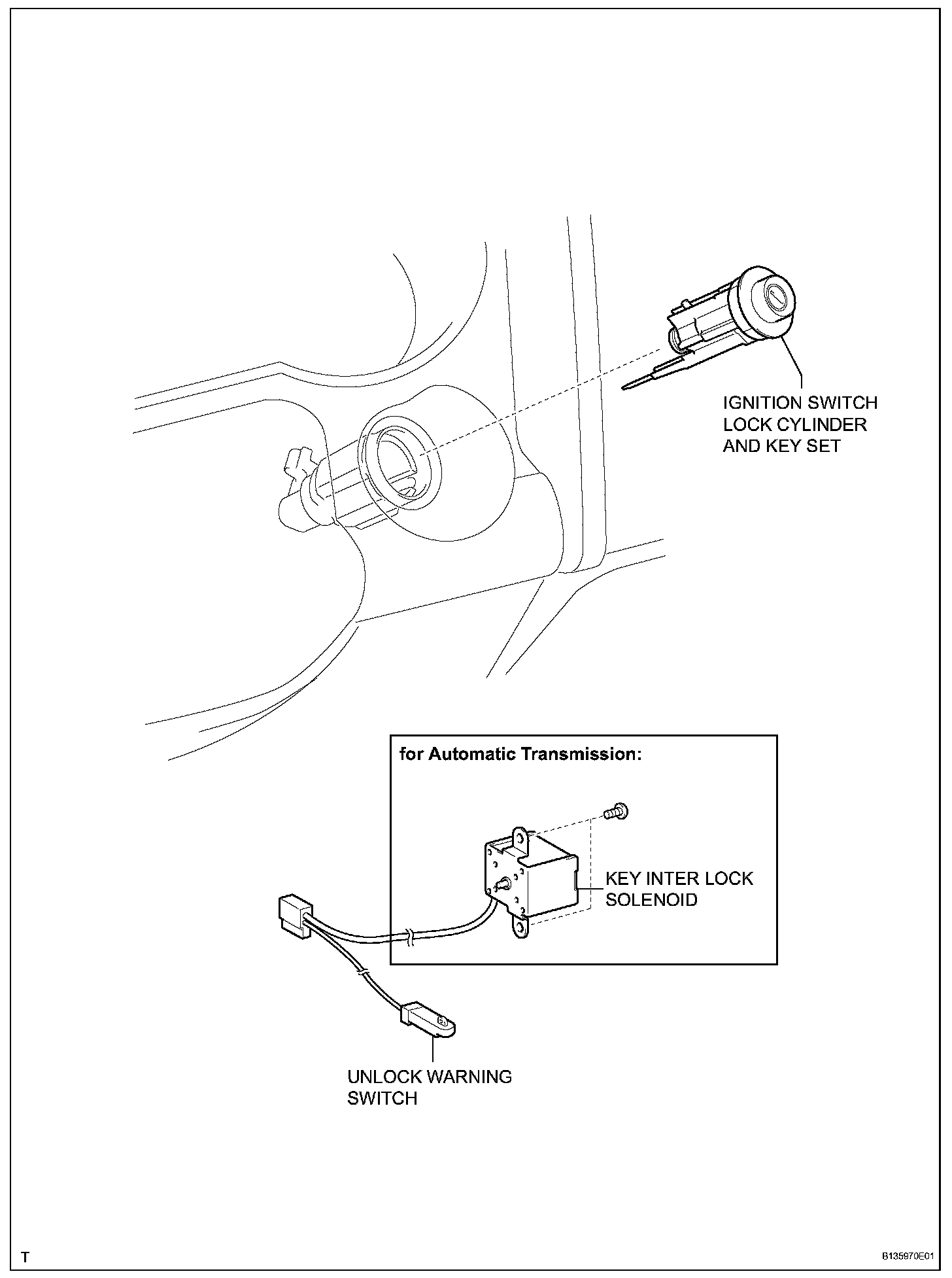

43. REMOVE IGNITION SWITCH LOCK CYLINDER AND KEY SET

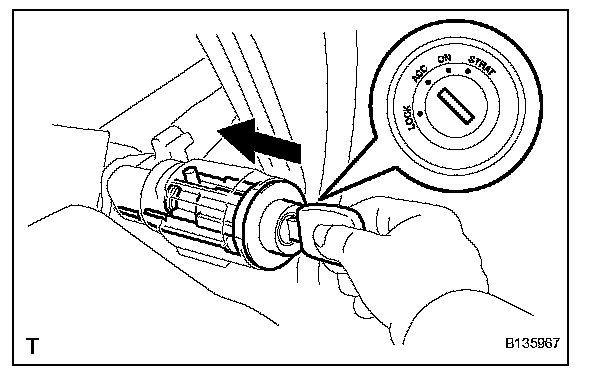

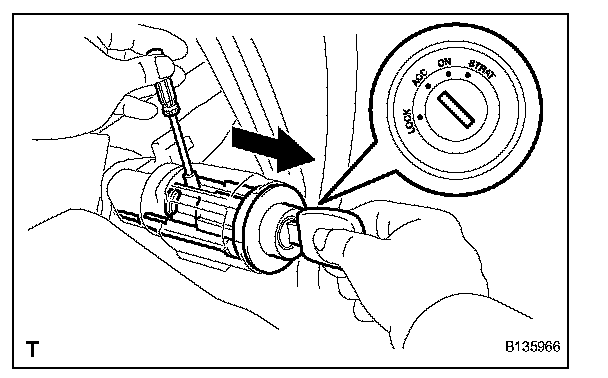

a. Turn the ignition switch lock cylinder to the ACC position.
b. Push down the stop pin with a screwdriver and pull out the ignition switch lock cylinder.

44. REMOVE KEY INTER LOCK SOLENOID (for Automatic Transmission)

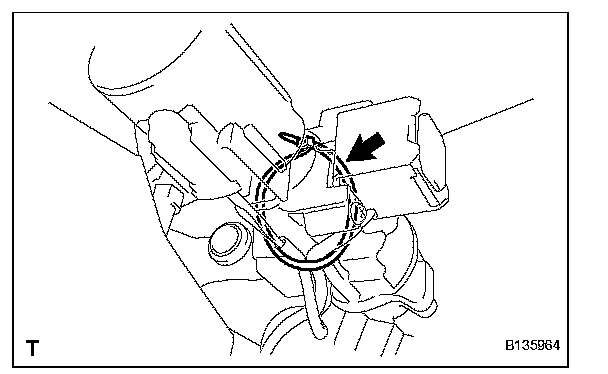

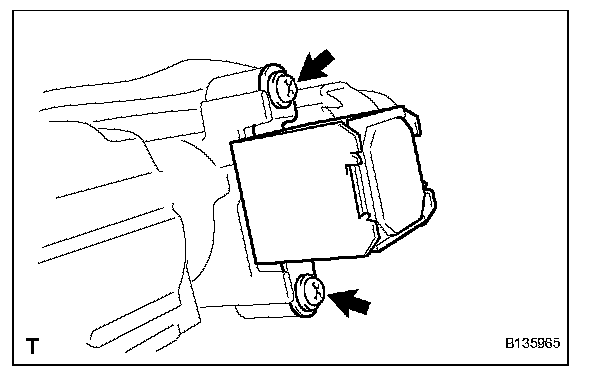

a. Disconnect the clamp from the steering column bracket upper.

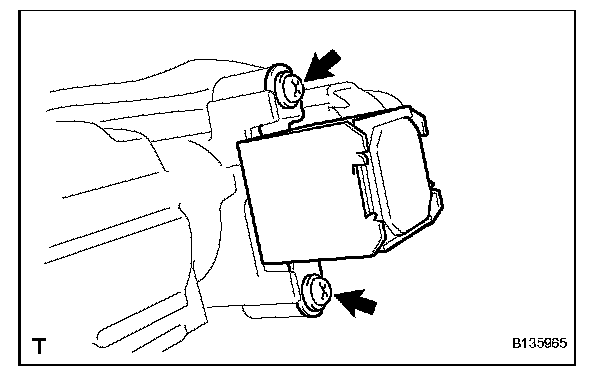

b. Remove the 2 screws and the key inter lock solenoid.

45. REMOVE UNLOCK WARNING SWITCH

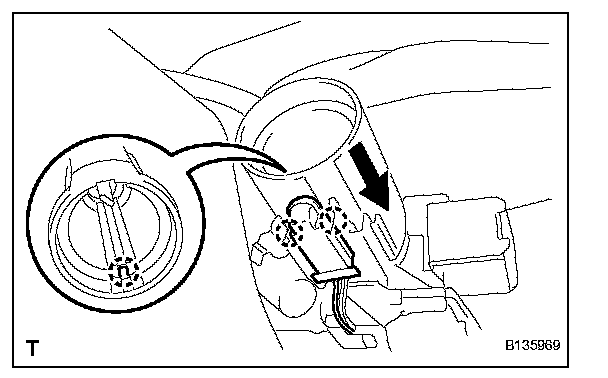

a. Disconnect the connector.
b. Remove the unlock warning switch toward the rear of the vehicle by pushing up the center part.

INSTALLATION

1. INSTALL UNLOCK WARNING SWITCH
a. Install the unlock warning switch onto the steering column bracket upper.
b. Connect the connector.

2. INSTALL KEY INTER LOCK SOLENOID (for Automatic Transmission)

a. Install the key inter lock solenoid with the 2 screws.

b. Install the clamp onto the steering column bracket upper.

3. INSTALL IGNITION SWITCH LOCK CYLINDER AND KEY SET
a. Make sure that the ignition switch lock cylinder is in the ACC position.
b. Install the ignition switch lock cylinder.

4. INSTALL INSTRUMENT PANEL SUB-ASSEMBLY
5. CONNECT PASSENGER AIRBAG CONNECTOR
6. REMOVE INSTRUMENT PANEL FINISH PANEL END LH
7. INSTALL ASSIST GRIP RETAINER RH
8. INSTALL ASSIST GRIP RETAINER LH
9. INSTALL FRONT NO. 2 SPEAKER ASSEMBLY
10. INSTALL NO. 2 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY
11. INSTALL NO. 1 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY
12. INSTALL NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY
13. INSTALL INSTRUMENT PANEL LOWER FINISH PANEL SUB-ASSEMBLY RH
14. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY
15. INSTALL COMBINATION METER ASSEMBLY
16. INSTALL INSTRUMENT CLUSTER LOWER FINISH PANEL
17. INSTALL LOWER INSTRUMENT PANEL LH
18. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY LH
19. CONNECT HOOD LOCK CONTROL LEVER SUBASSEMBLY
20. INSTALL NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY
21. INSTALL INSTRUMENT LOWER COVER SUBASSEMBLY
22. INSTALL CONSOLE UPPER PANEL NO. 1 GARNISH
23. INSTALL FRONT CONSOLE BOX ASSEMBLY
24. INSTALL BOX BOTTOM MAT
25. INSTALL CONSOLE UPPER REAR PANEL SUBASSEMBLY
26. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for 4WD)
27. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transmission)
28. INSTALL PARKING BRAKE HOLE COVER SUBASSEMBLY
29. INSTALL RADIO RECEIVER ASSEMBLY
30. INSTALL INTEGRATION CONTROL AND PANEL ASSEMBLY
31. INSTALL INSTRUMENT PANEL GARNISH LH
32. INSTALL INSTRUMENT PANEL GARNISH RH
33. INSTALL FRONT PILLAR GARNISH RH
34. INSTALL FRONT PILLAR GARNISH LH
35. INSTALL ASSIST GRIP ASSEMBLY
36. INSTALL ASSIST GRIP PLUG
37. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH
38. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP RH
39. INSTALL COWL SIDE TRIM BOARD RH
40. INSTALL COWL SIDE TRIM BOARD LH
41. INSTALL FOOTREST CLIP
42. INSTALL FRONT FLOOR FOOTREST
43. INSTALL FRONT DOOR SCUFF PLATE RH
44. INSTALL FRONT DOOR SCUFF PLATE LH
45. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Torque: 3.9 N.m (40 kgf.cm, 35 in.lbf)

46. INSPECT SRS WARNING LIGHT
