Only Wireless Control Function is Inoperative
Only Wireless Control Function is InoperativeDESCRIPTION
The door control receiver receives signals from the transmitter and sends these signals to the main body ECU.

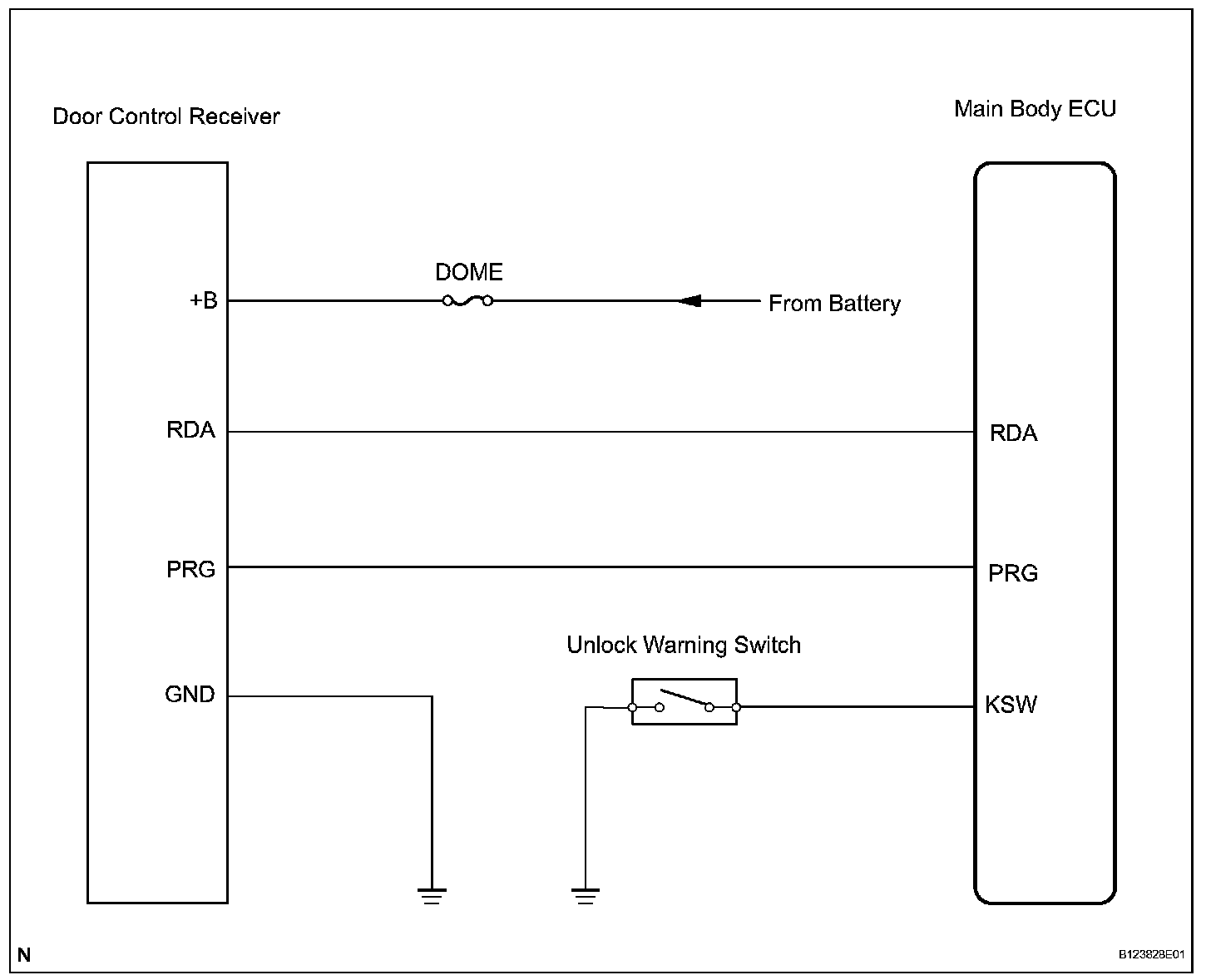

Wiring Diagram:
INSPECTION PROCEDURE

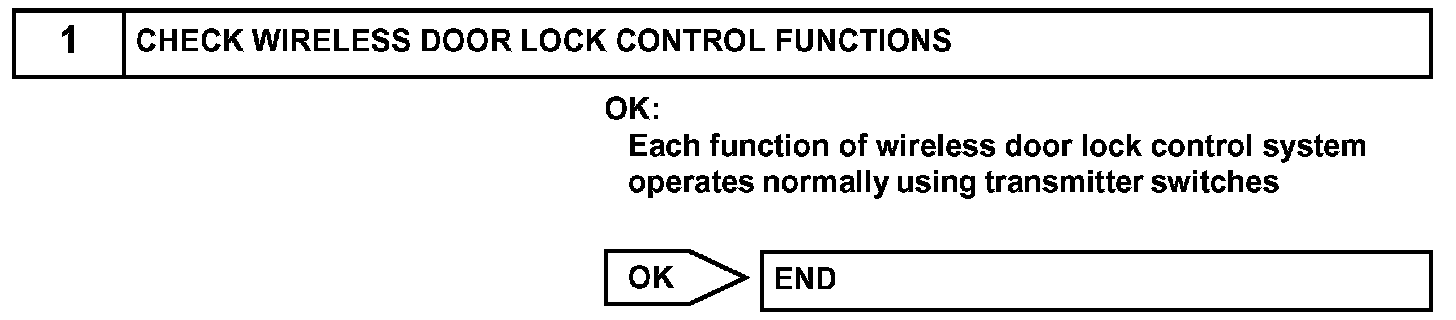

Step 1:

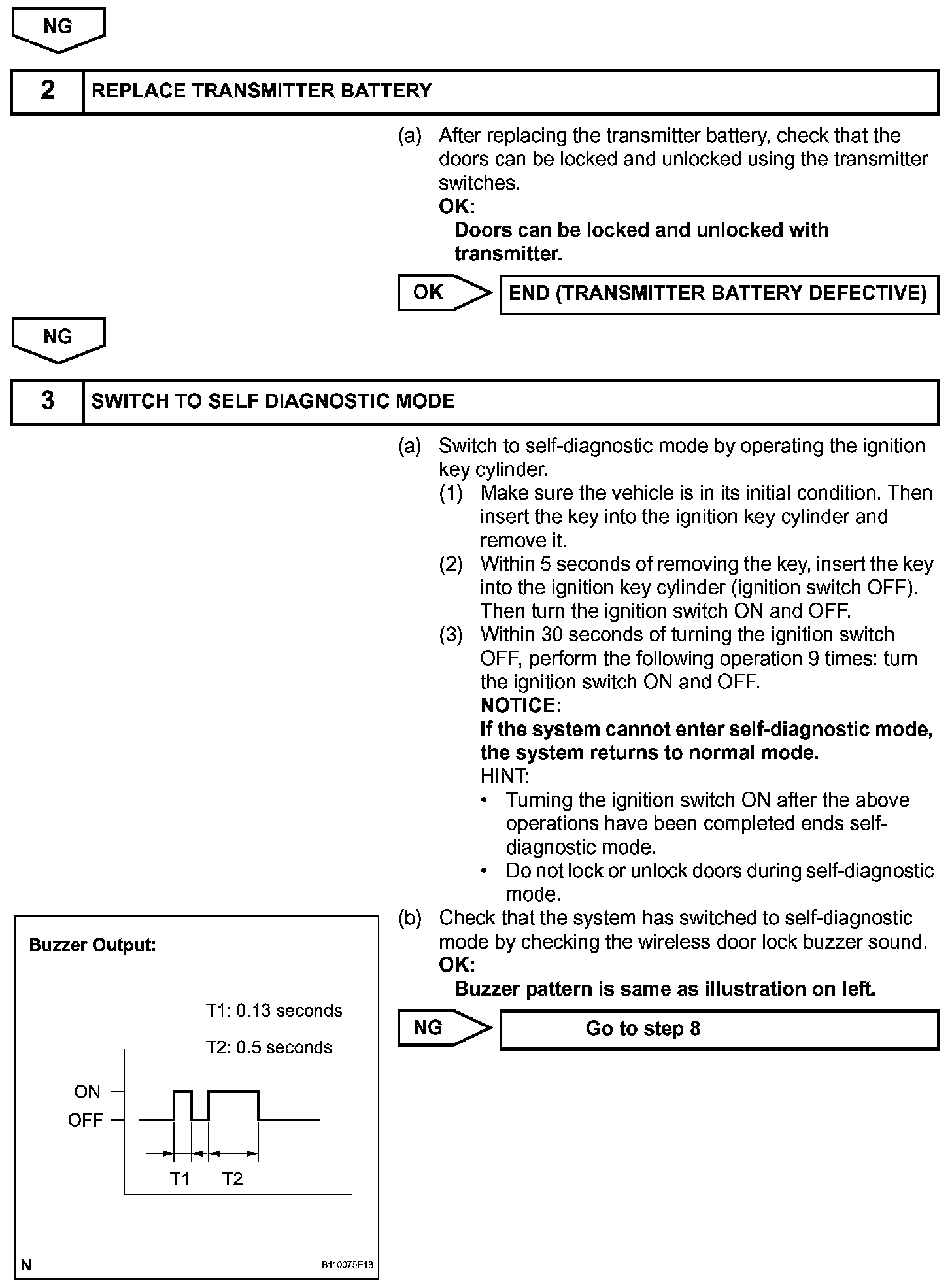

Step 1(Continued)-3:
Step 3(Continued)-4:

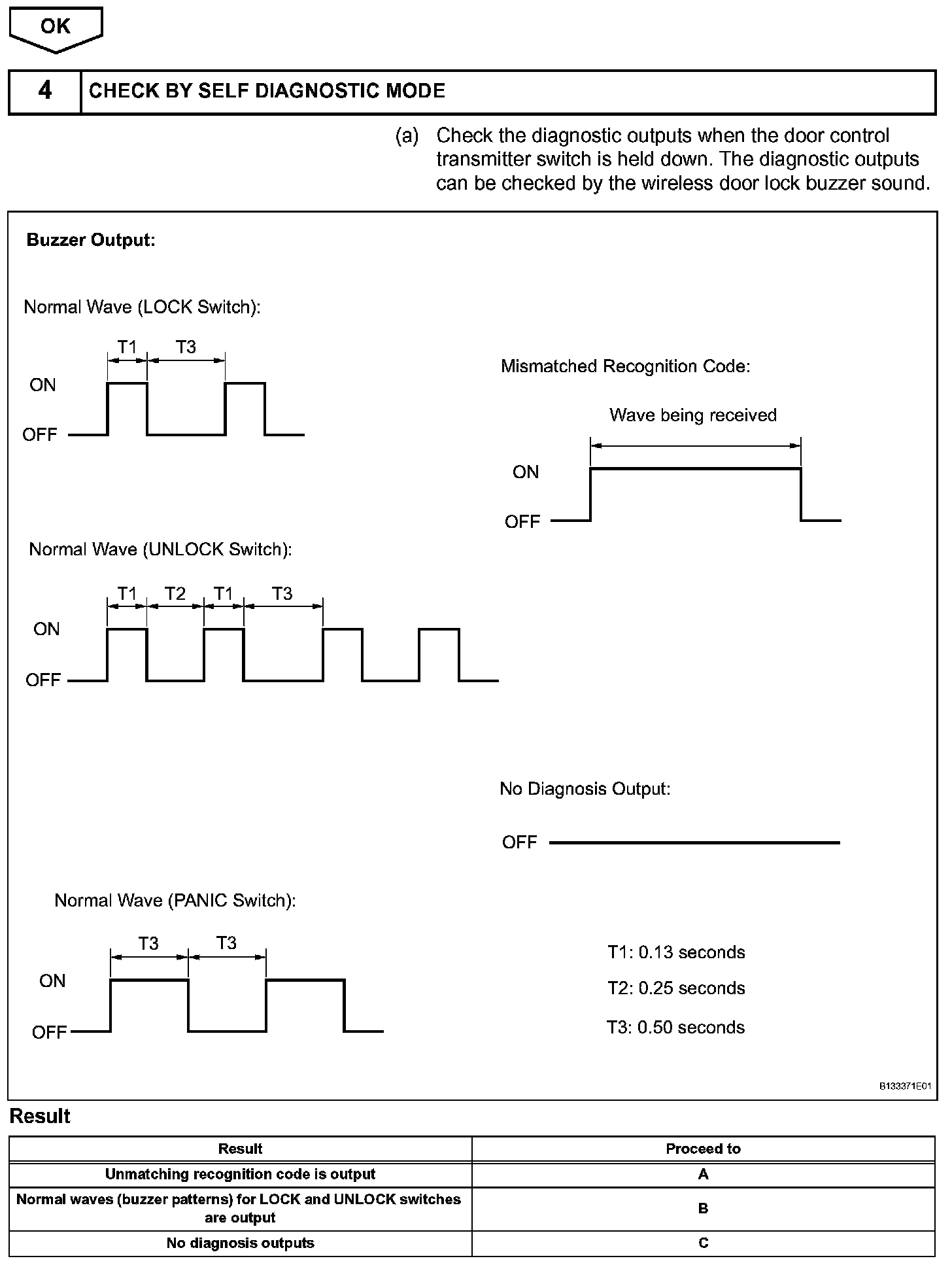

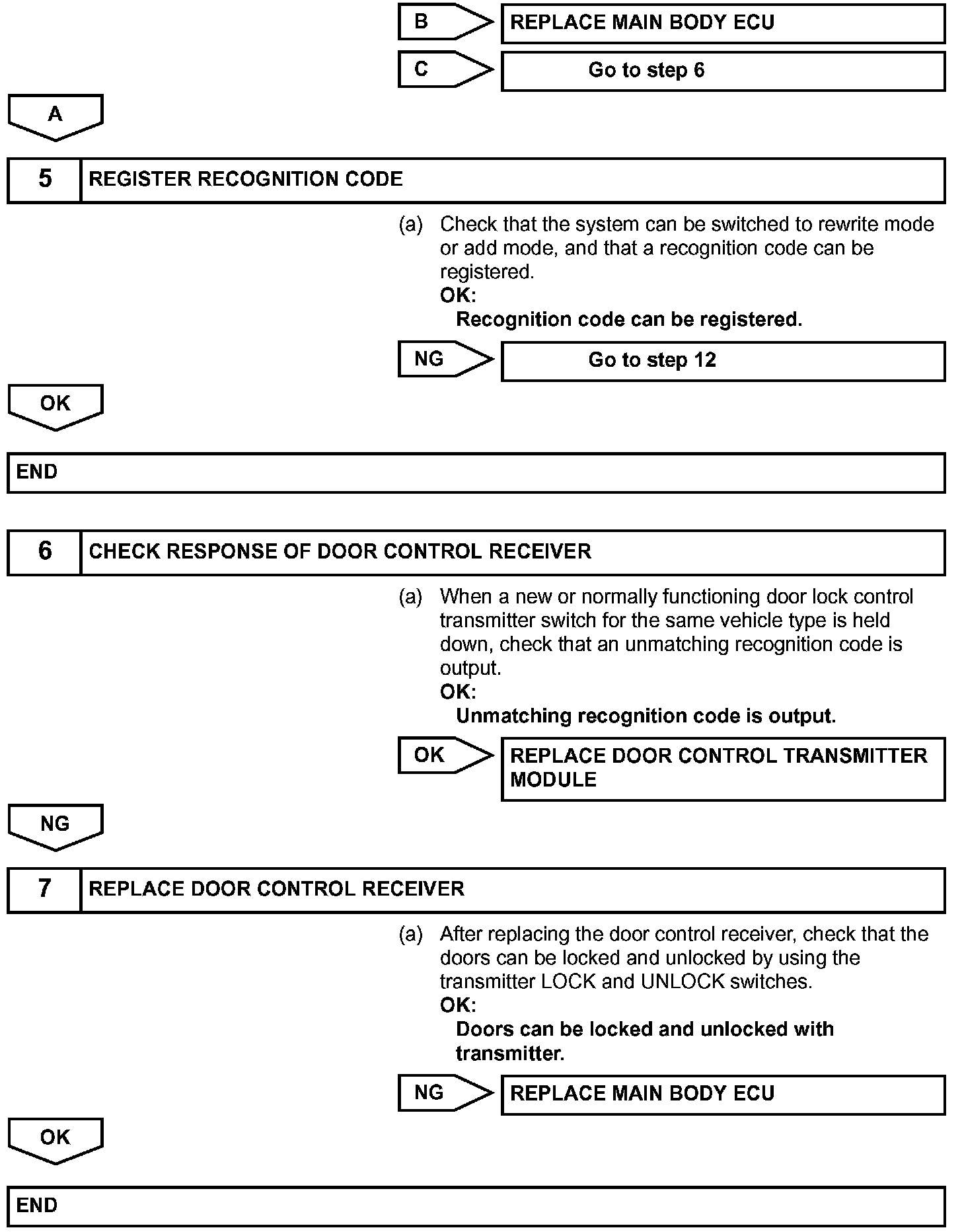

Step 4(Continued)-7:

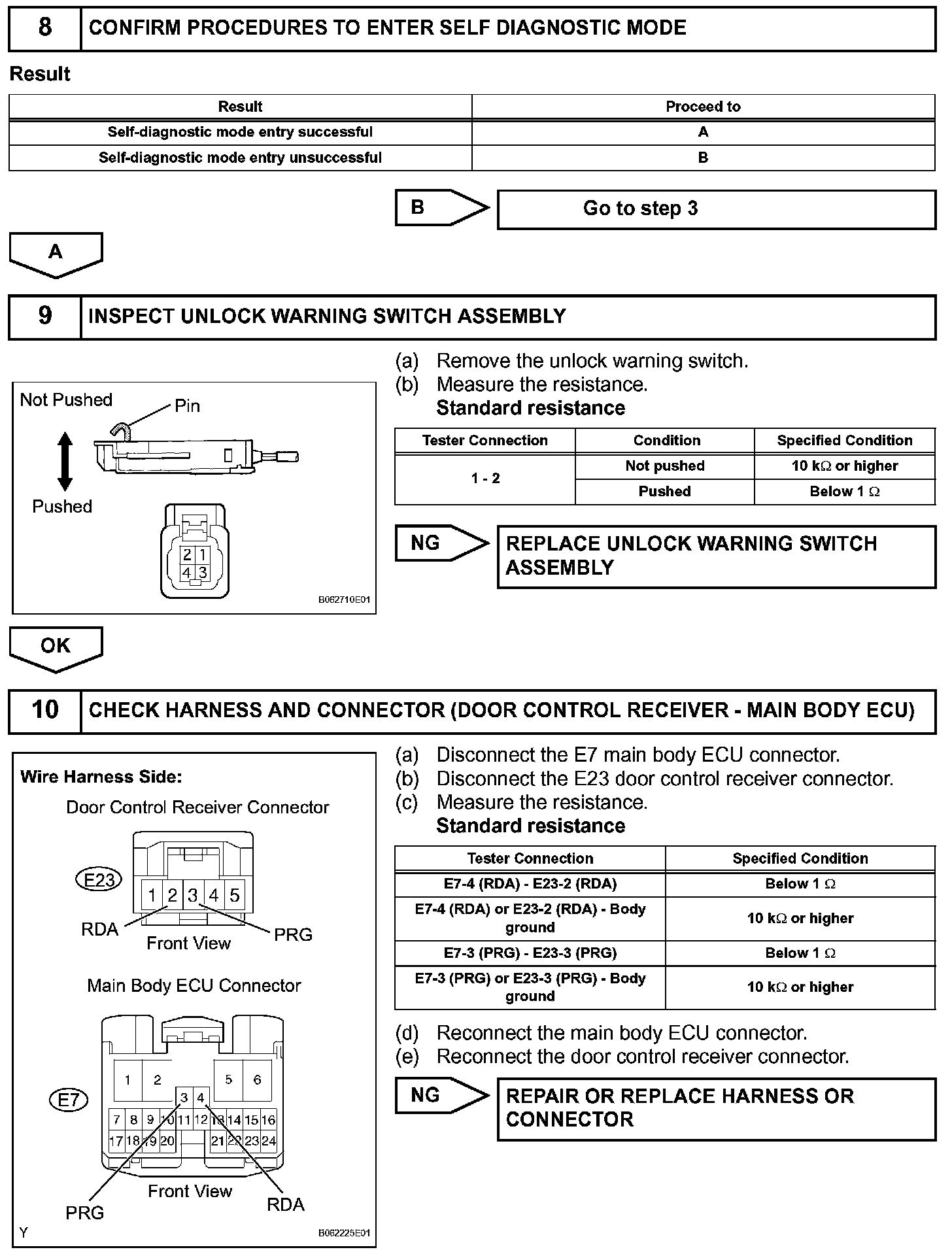

Step 8-10:

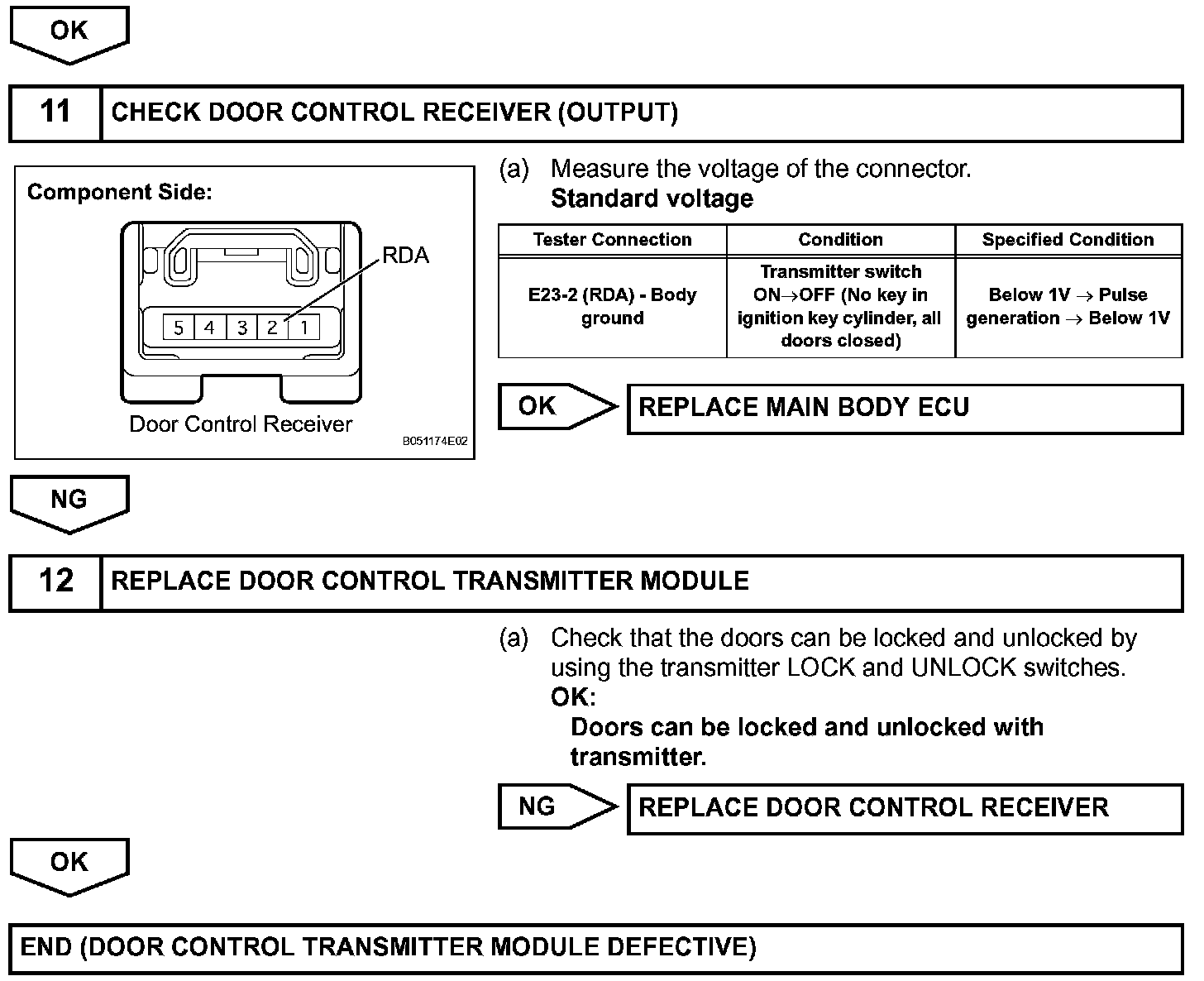

Step 10(Continued)-12:
