Key Lock-In Prevention Function Does Not Work Properly
Key Lock-in Prevention Function does not Work ProperlyDESCRIPTION
When the key is in the ignition key cylinder or the door courtesy light ON signal is output to the main body ECU, performing the door lock operation with the lock switch does not lock the doors.

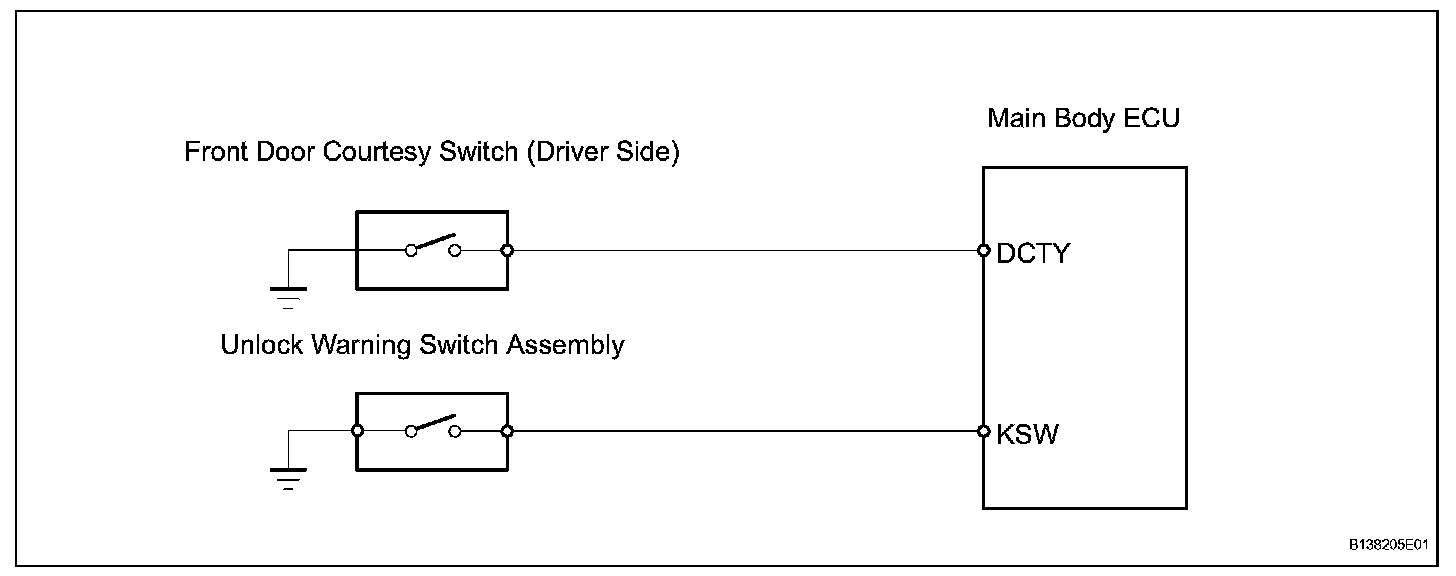

Wiring Diagram:
INSPECTION PROCEDURE

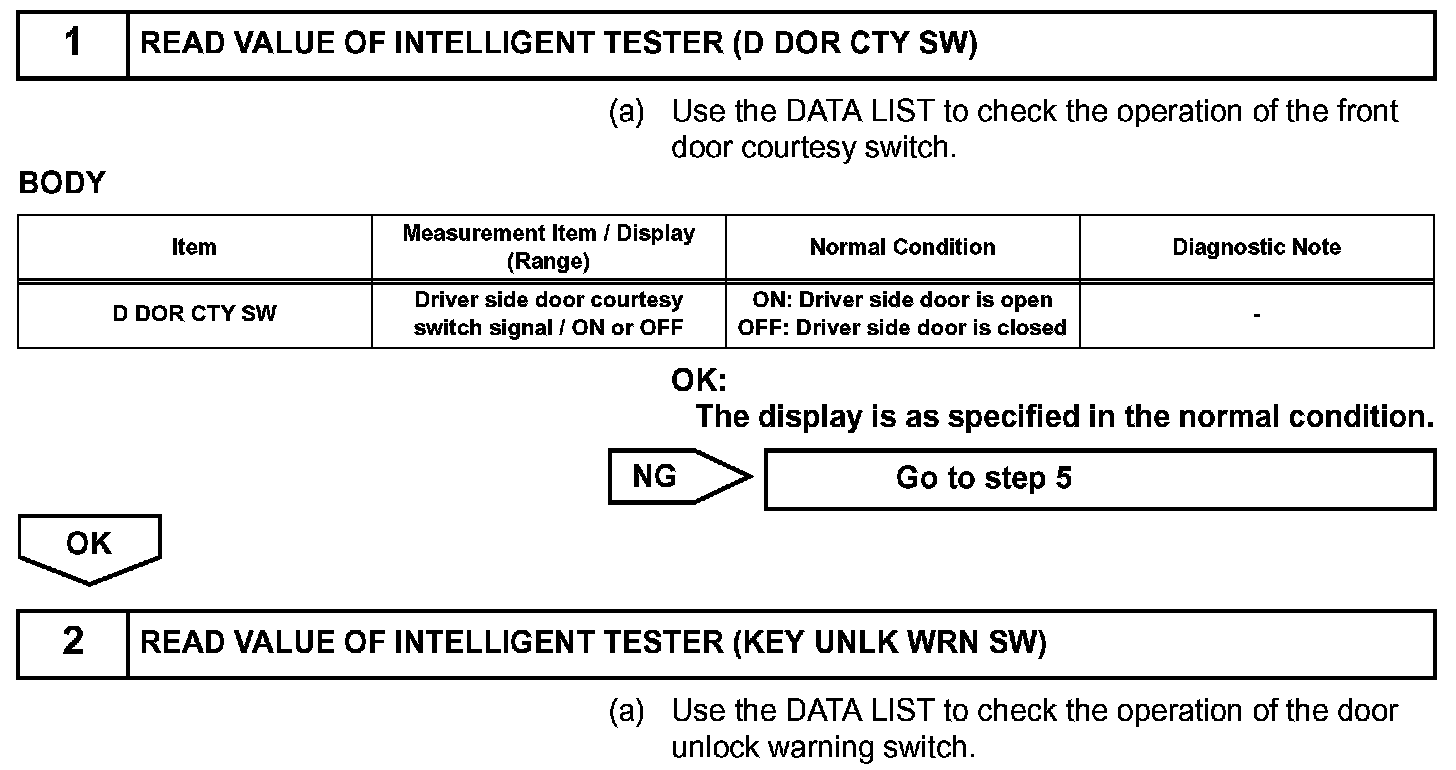

Step 1-2:

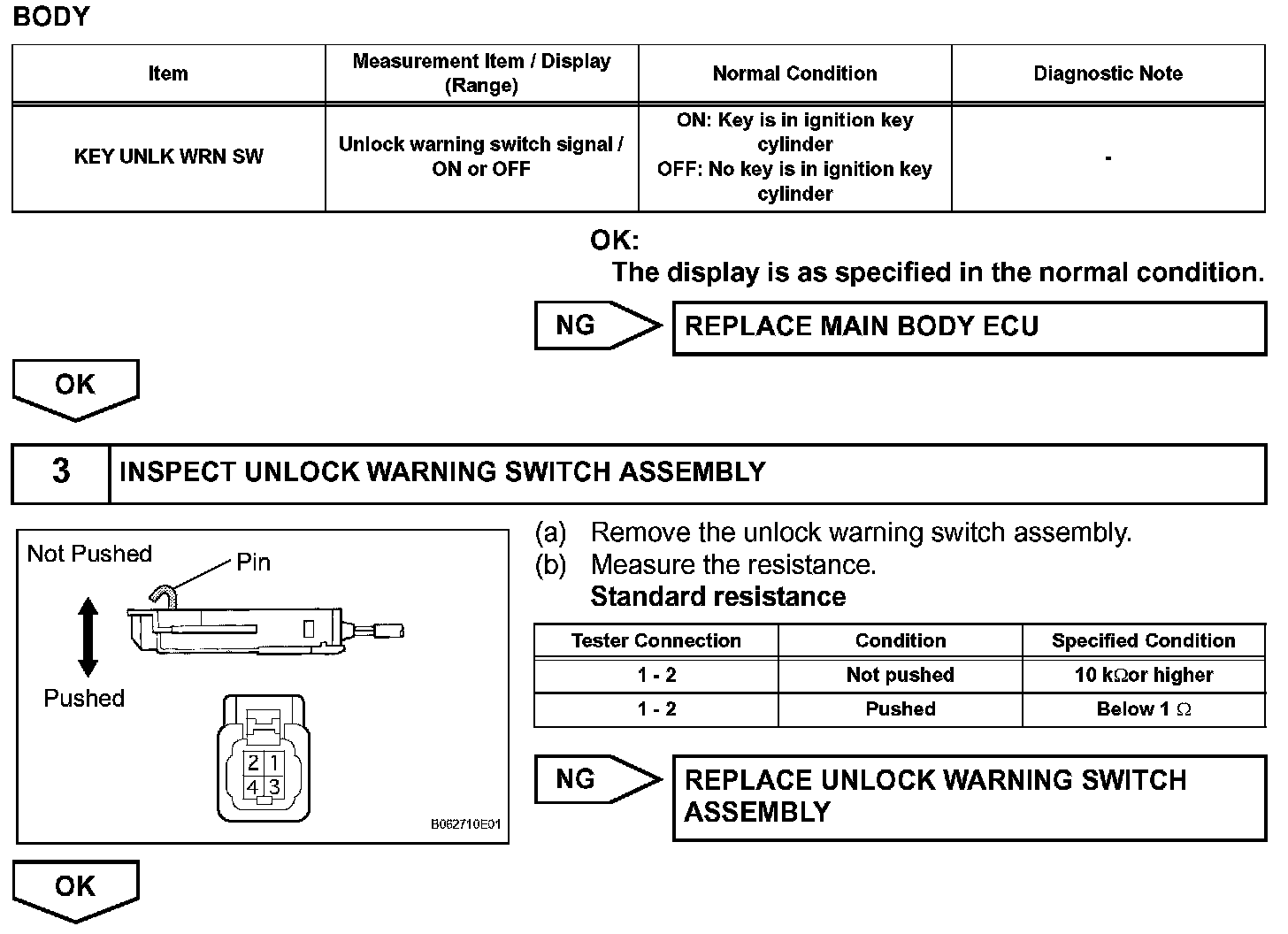

Step 2(Continued)-3:

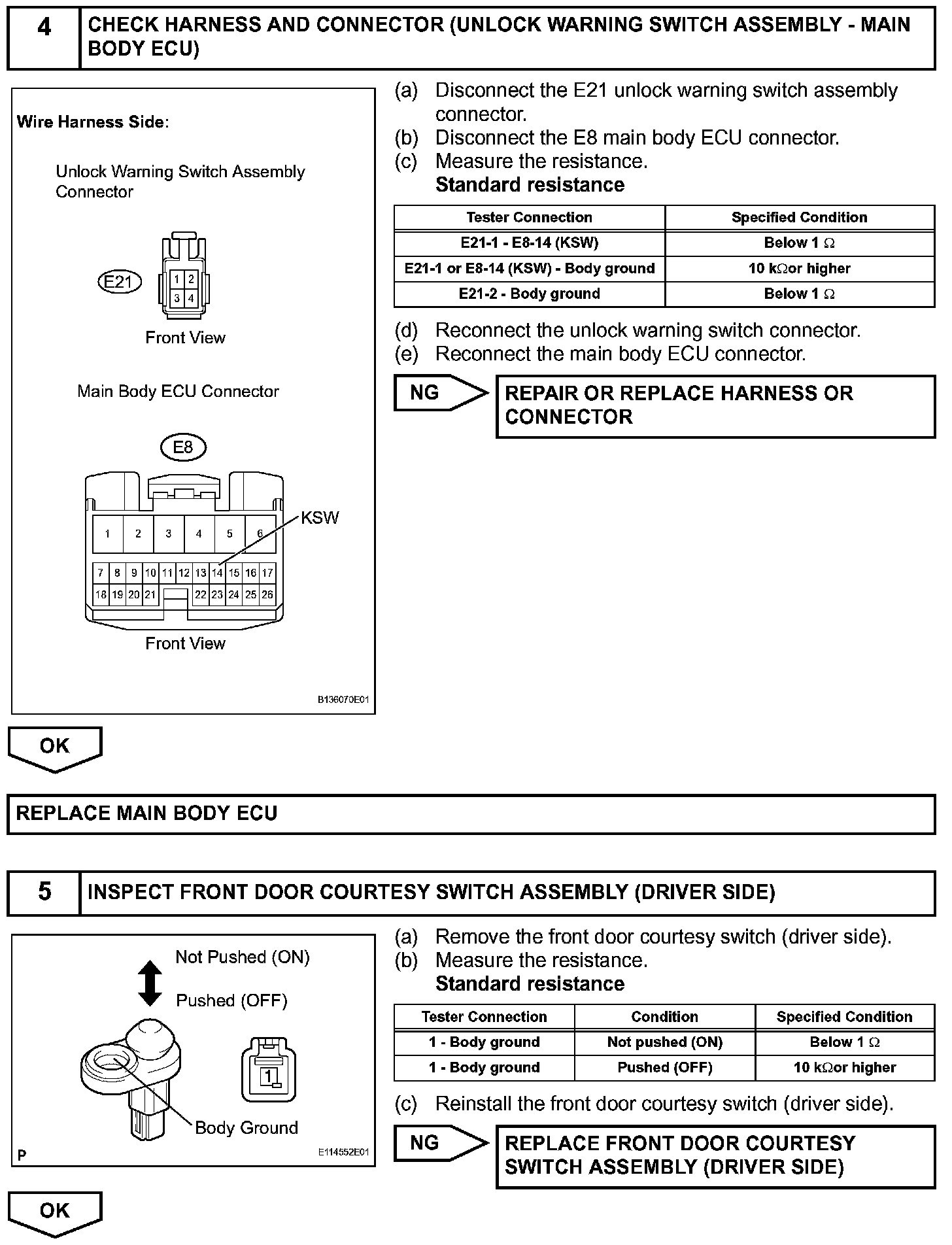

Step 4-5:

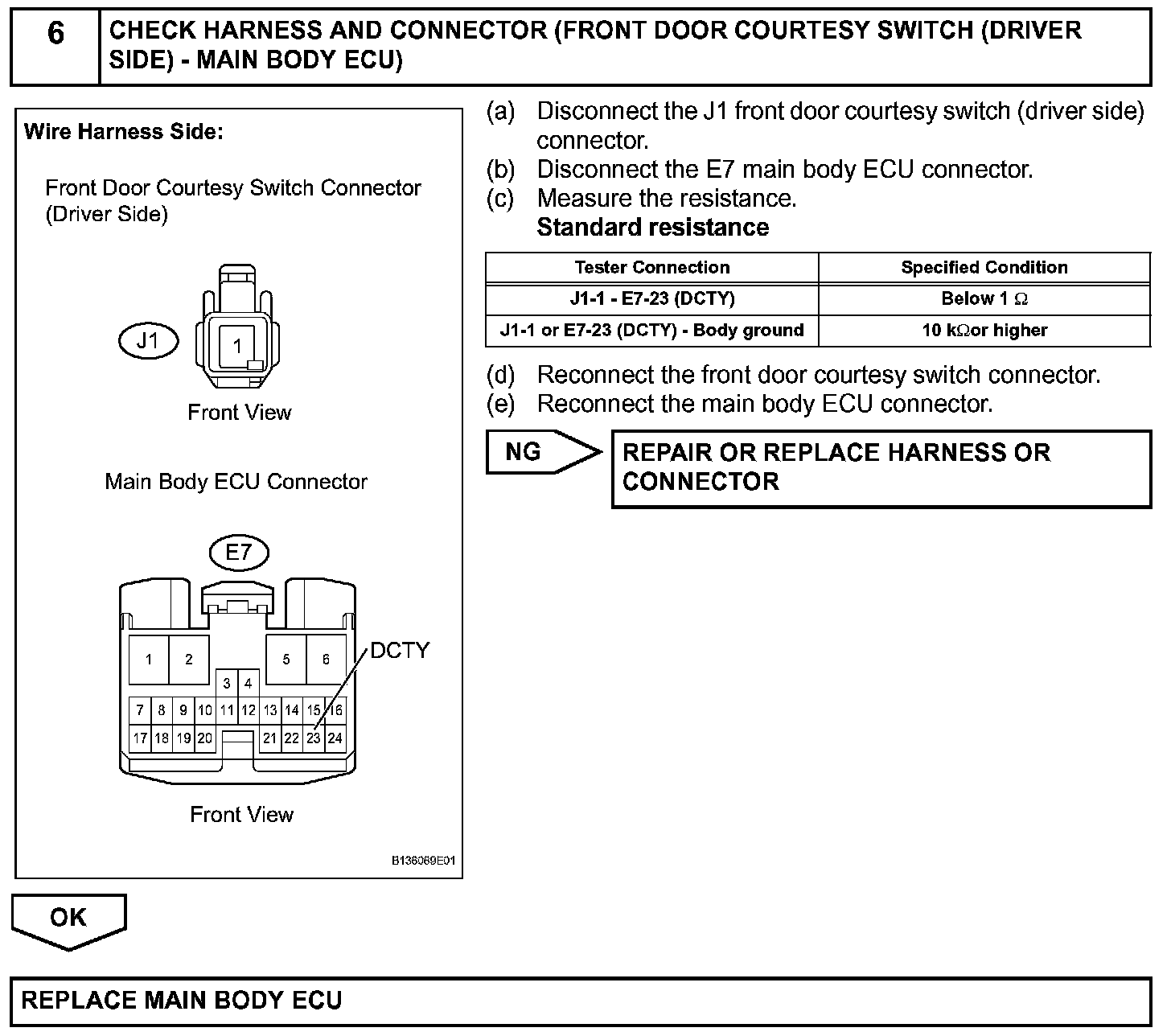

Step 6:
