Cruise Control Switch: Service and Repair

Cruise Control Main Switch:

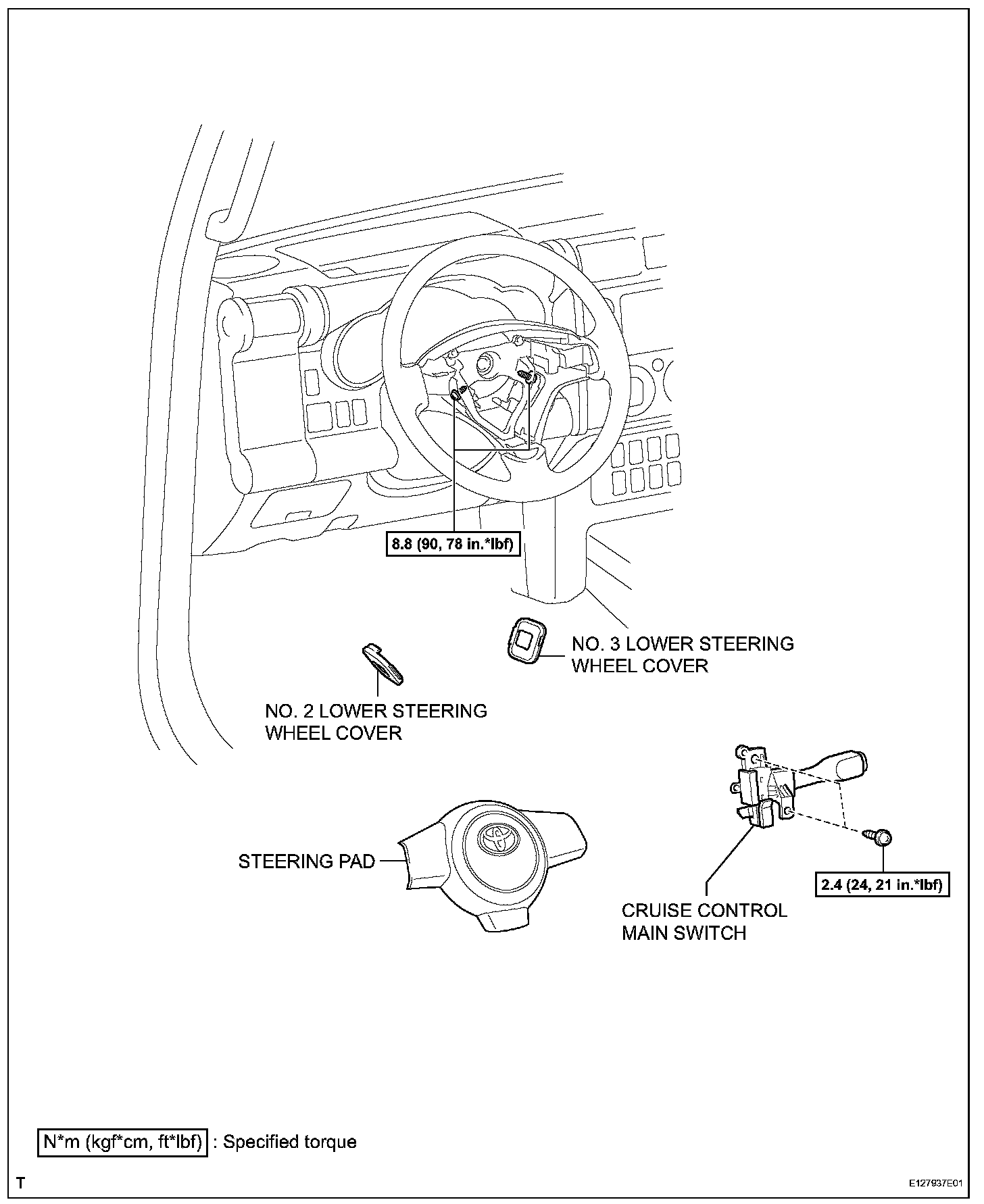

CRUISE CONTROL MAIN SWITCH

REMOVAL

CAUTION: Some of these service operations affect the SRS airbag system. Refer to Restraint Systems; Service Precautions before servicing.

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
Wait for at least 90 seconds after disconnecting the cable to prevent the airbag from working.

2. REMOVE NO. 2 LOWER STEERING WHEEL COVER
3. REMOVE NO. 3 LOWER STEERING WHEEL COVER
4. REMOVE STEERING PAD

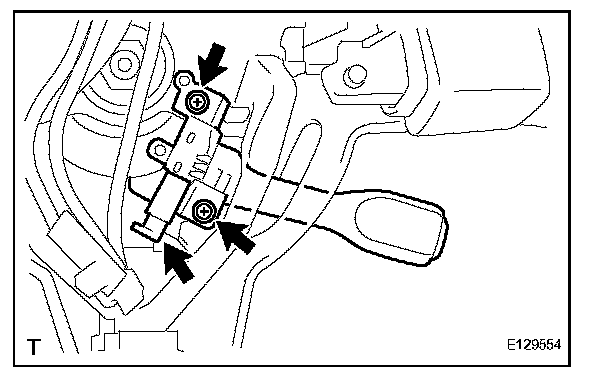

5. REMOVE CRUISE CONTROL MAIN SWITCH
a. Disconnect the connector.
b. Remove the 2 screws and remove the cruise control main switch.

INSTALLATION




1. INSTALL CRUISE CONTROL MAIN SWITCH
a. Install the cruise control main switch with the 2 screws.

Torque: 2.4 N.m (24 kgf.cm, 21 in.lbf)

b. Connect the connector.

2. INSTALL STEERING PAD
3. INSTALL NO. 3 LOWER STEERING WHEEL COVER
4. INSTALL NO. 2 LOWER STEERING WHEEL COVER
5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Torque: 3.9 N.m (40 kgf.cm, 35 in.lbf)

6. INSPECT SRS WARNING LIGHT
