Cruise Control Switch: Testing and Inspection

INSPECTION

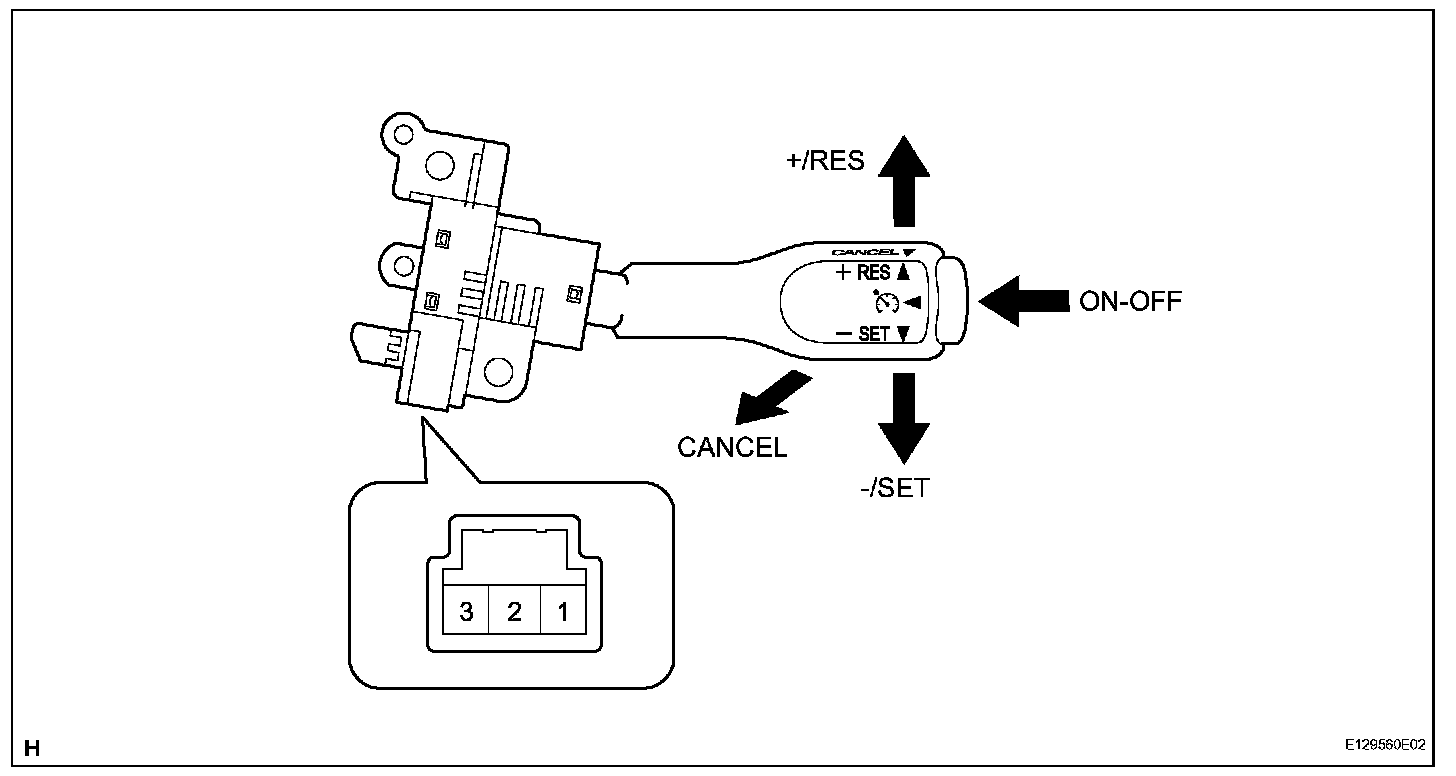

1. INSPECT CRUISE CONTROL MAIN SWITCH

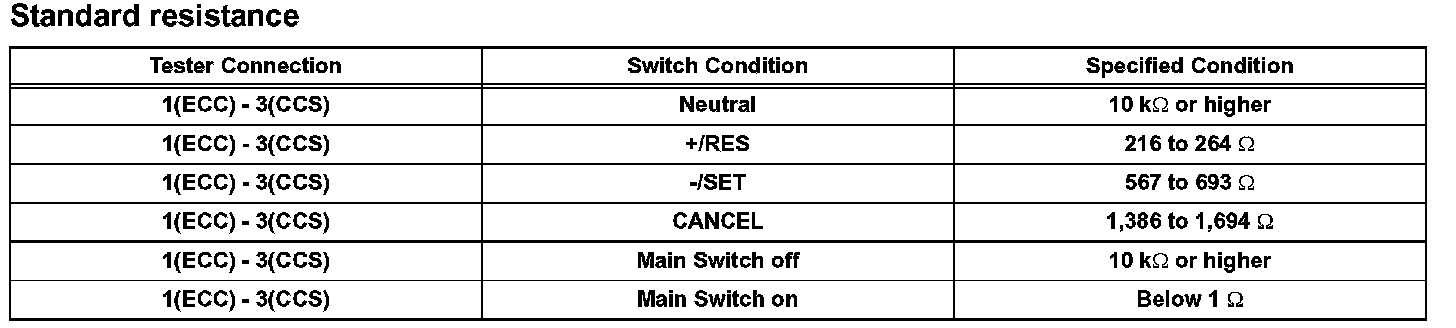

a. Measure the resistance and check the results in accordance with the value(s) in the table given.

If the result is not as specified, replace the cruise control main switch.
