Electronic Brake Control Module

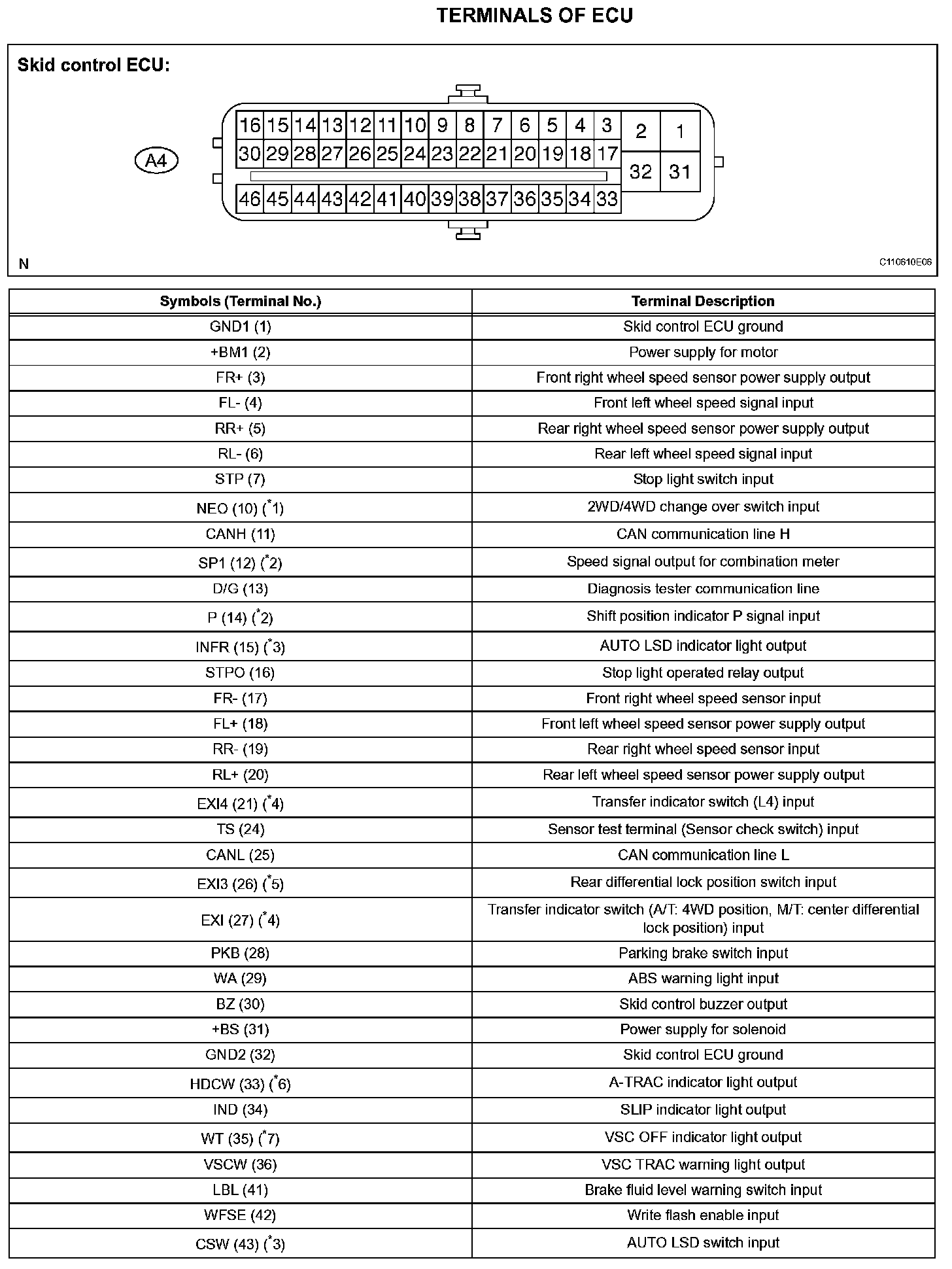

Terminals Of Control Modules/Pinouts - Terminals Of ECU (Part 1):

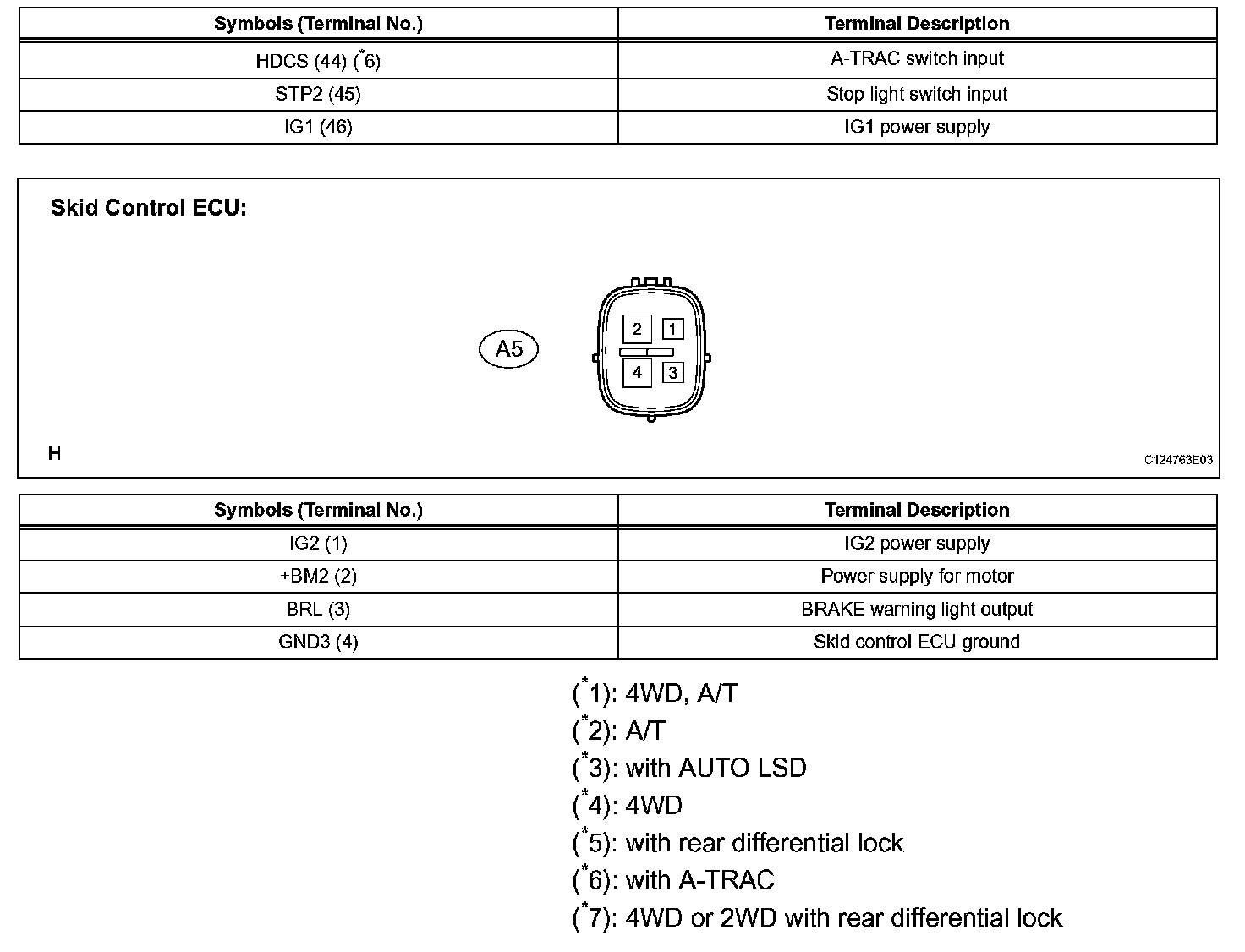

Terminals Of Control Modules/Pinouts - Terminals Of ECU (Part 2):

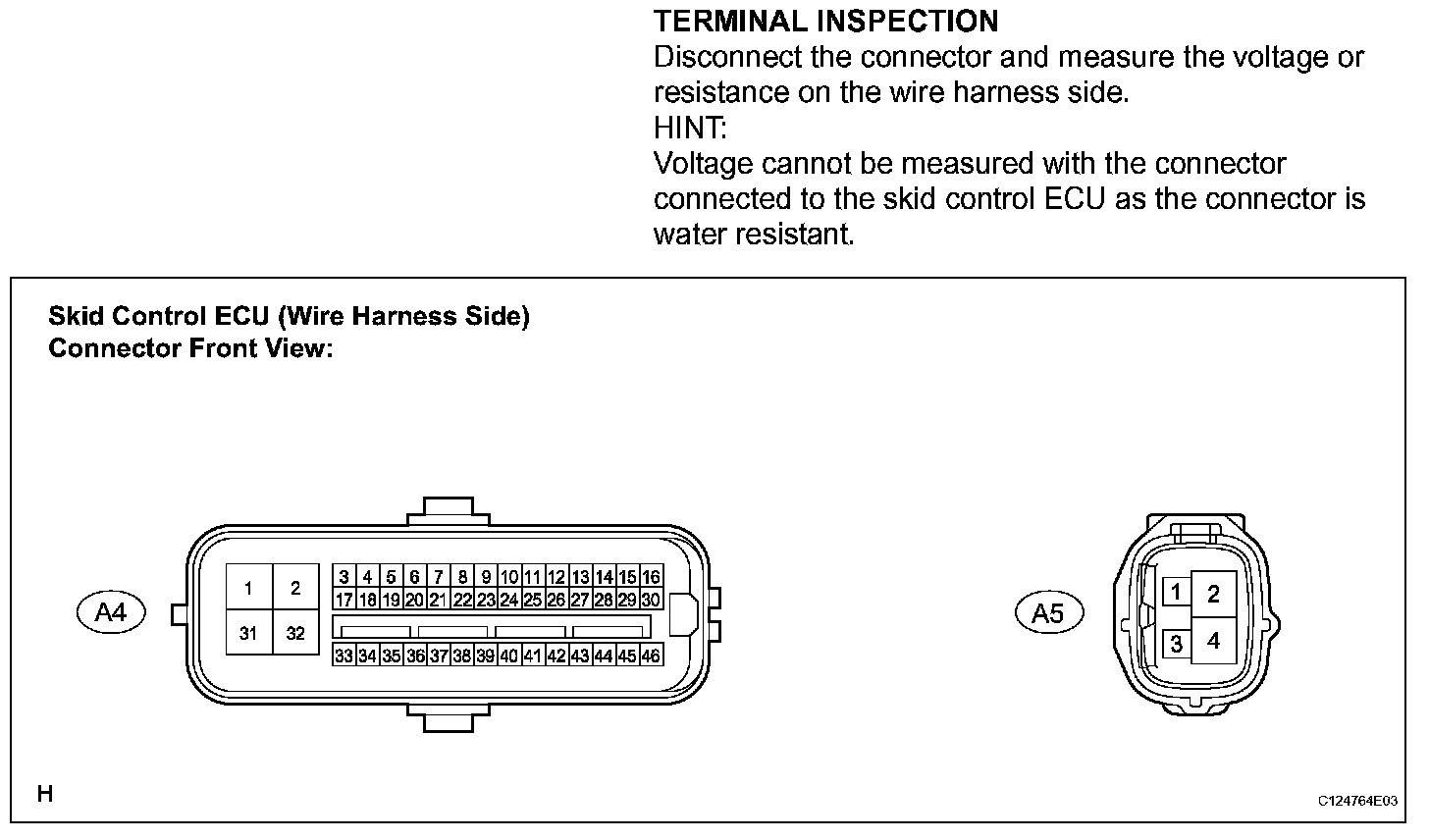

Terminals Of Control Modules/Pinouts - Terminal Inspection (Part 1):

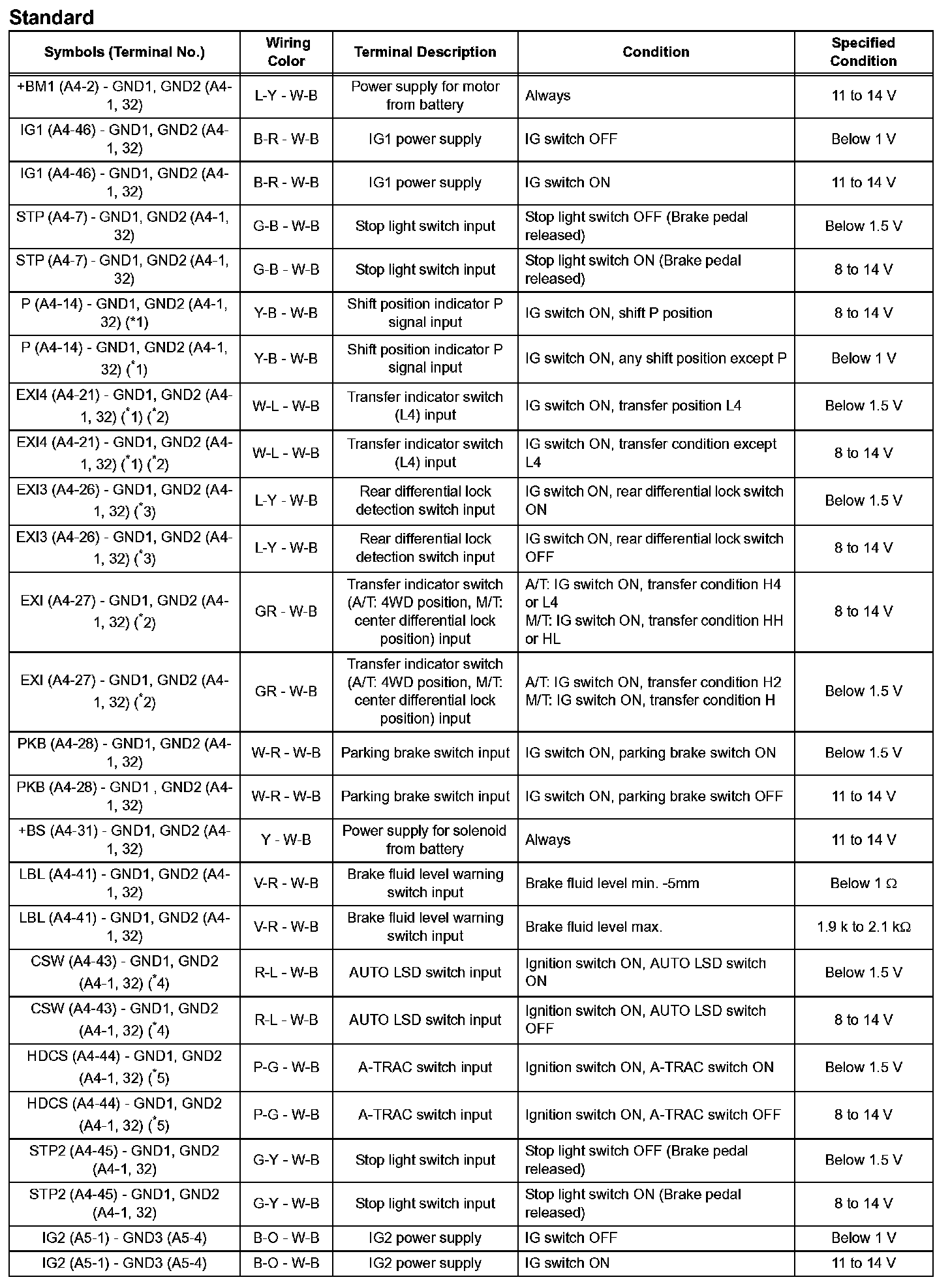

Terminals Of Control Modules/Pinouts - Terminal Inspection (Part 2):

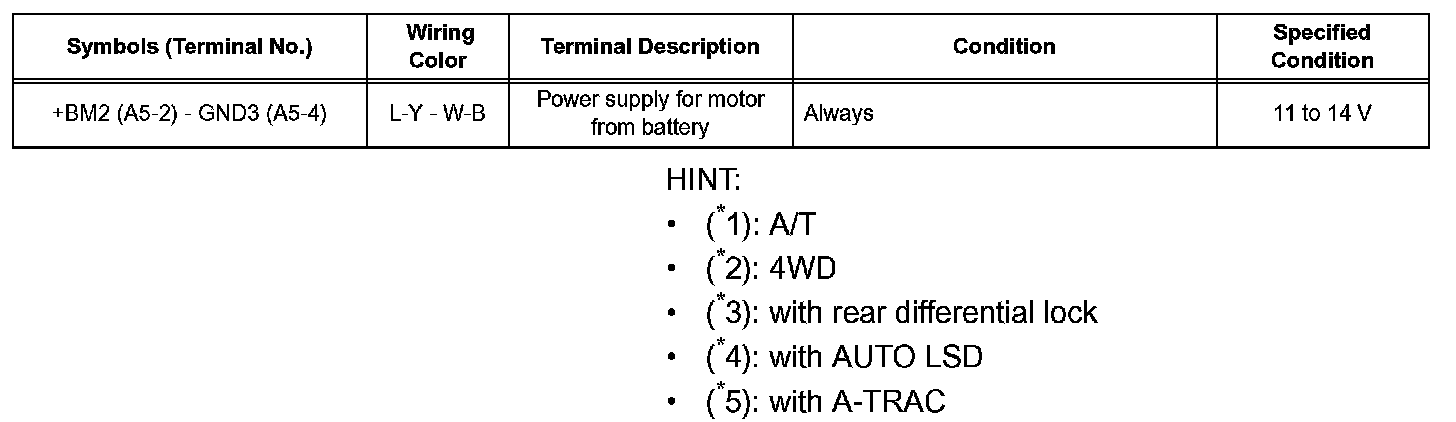

Terminals Of Control Modules/Pinouts - Terminal Inspection (Part 3):
