Coolant Temperature Sensor/Switch (For Computer)
Coolant Temperature Sensor/Switch (For Computer)

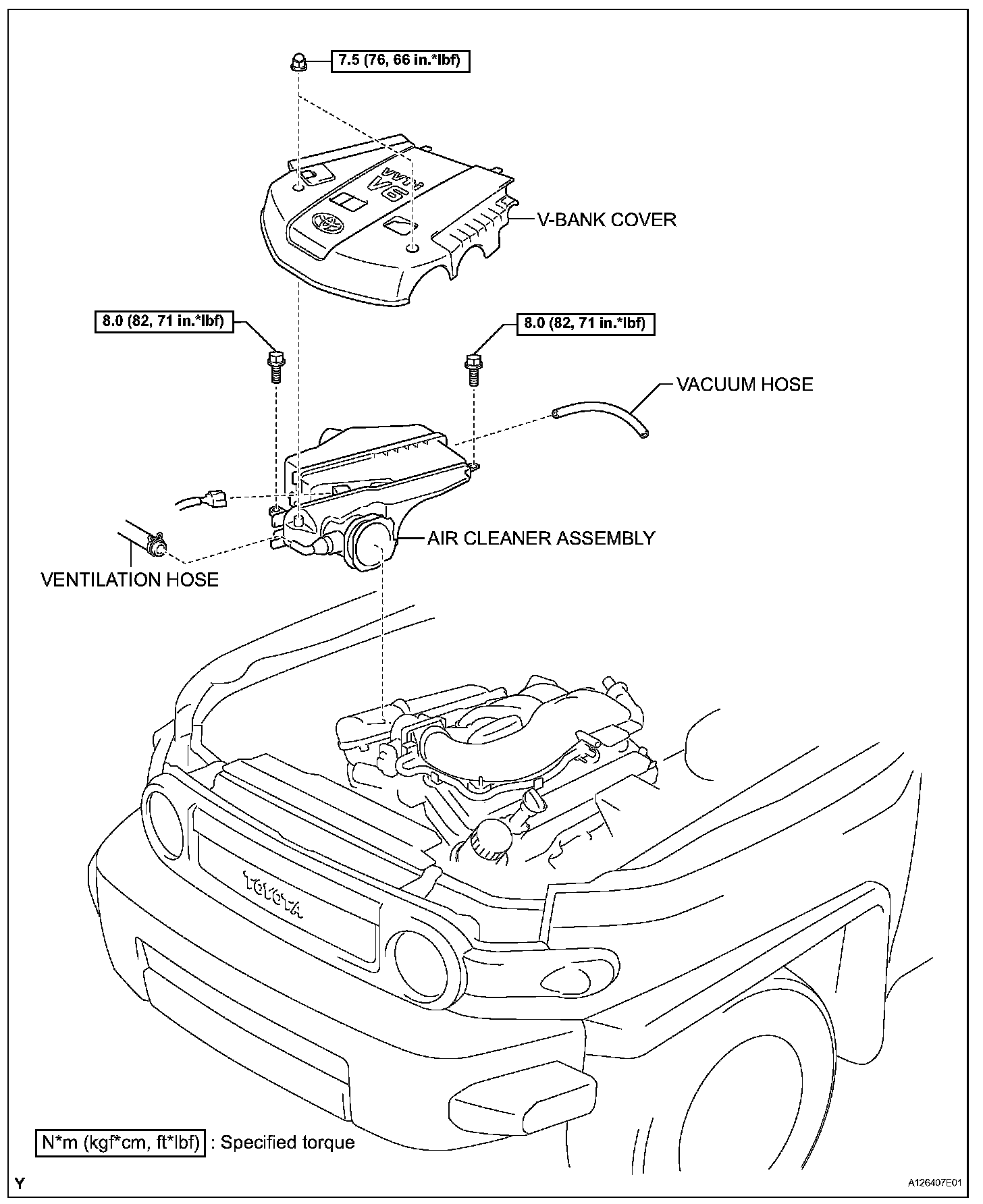

Engine Coolant Temperature Sensor (Part 1):

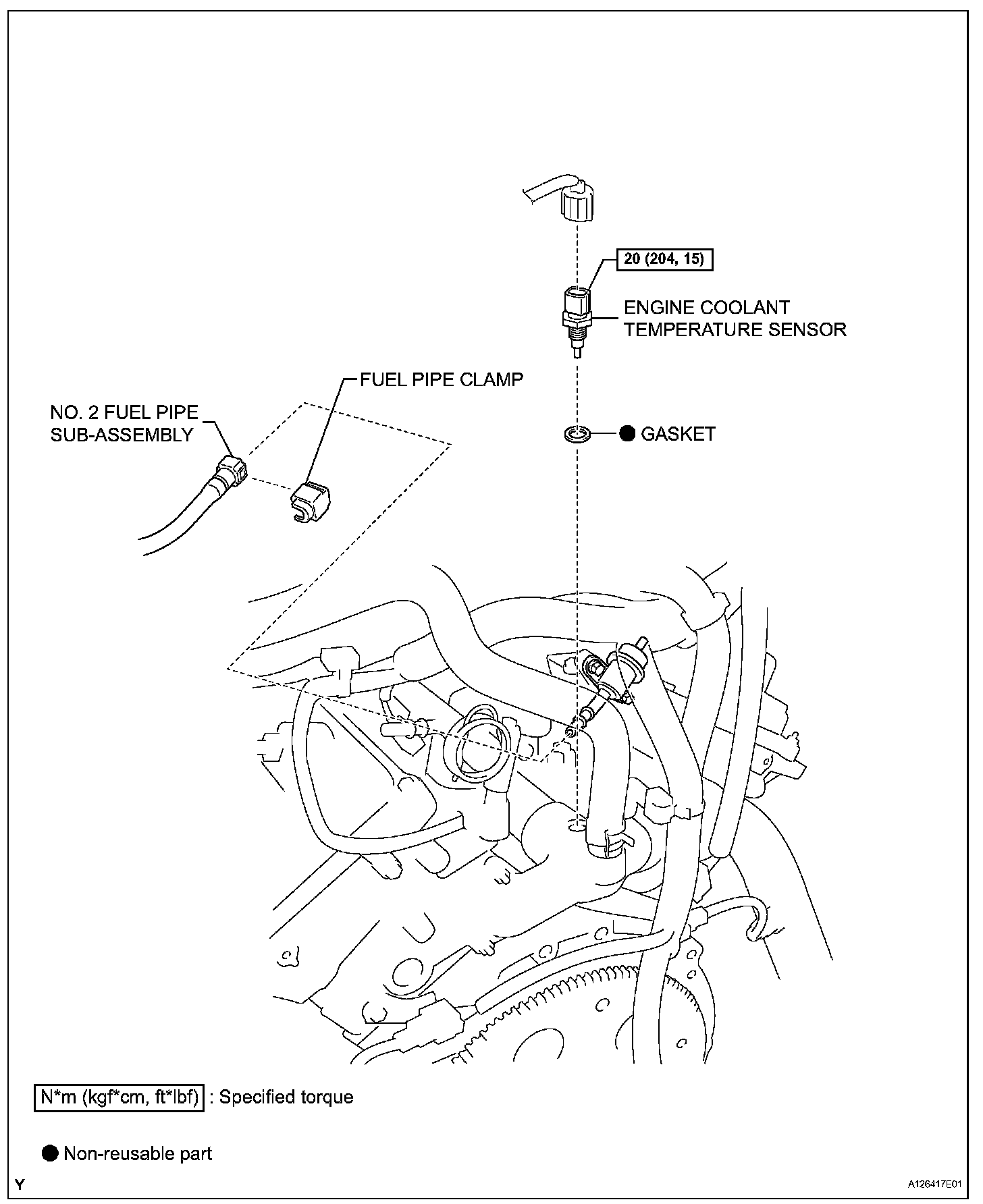

Engine Coolant Temperature Sensor (Part 2):

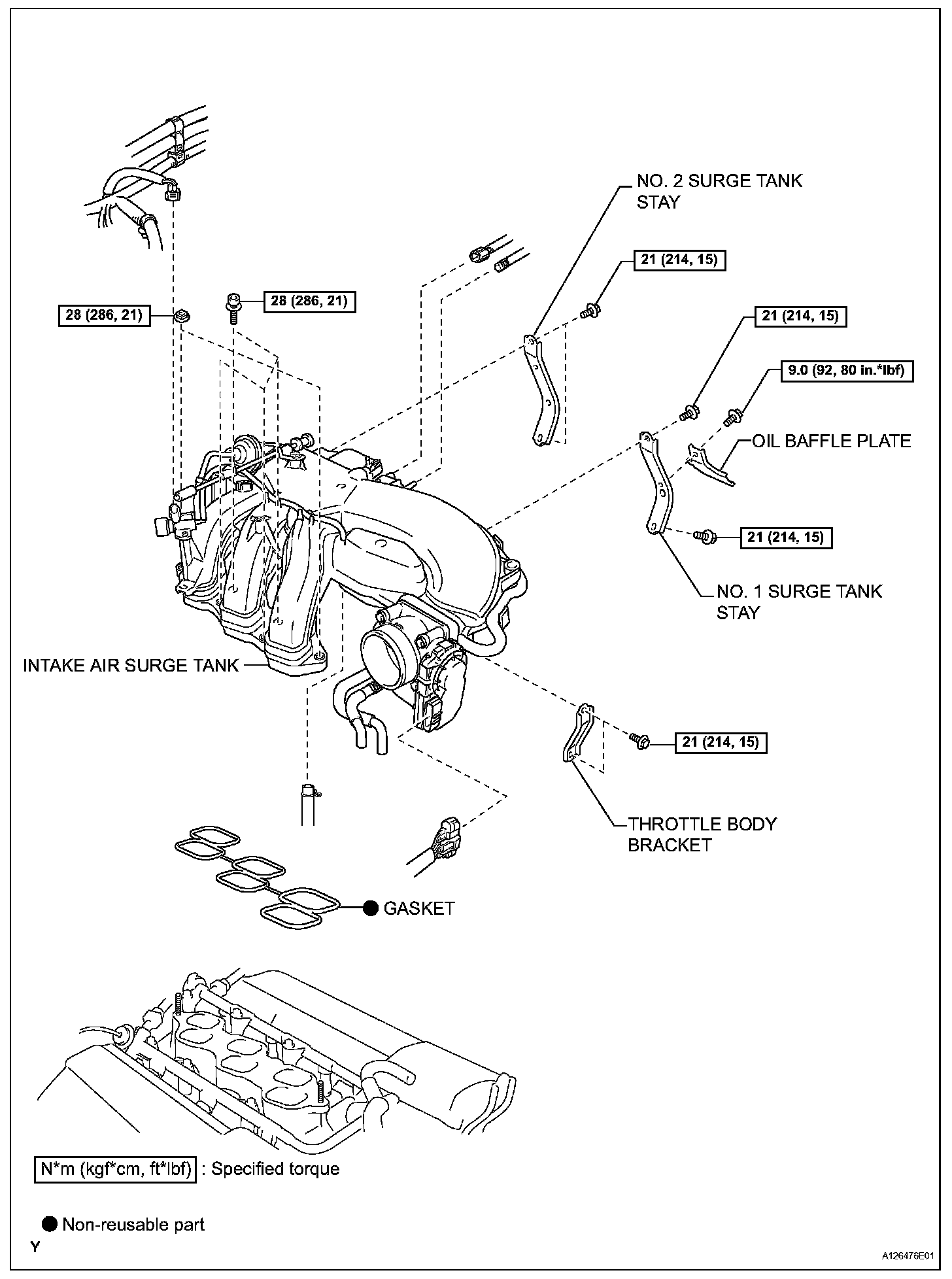

Engine Coolant Temperature Sensor (Part 3):
