Knock Sensor

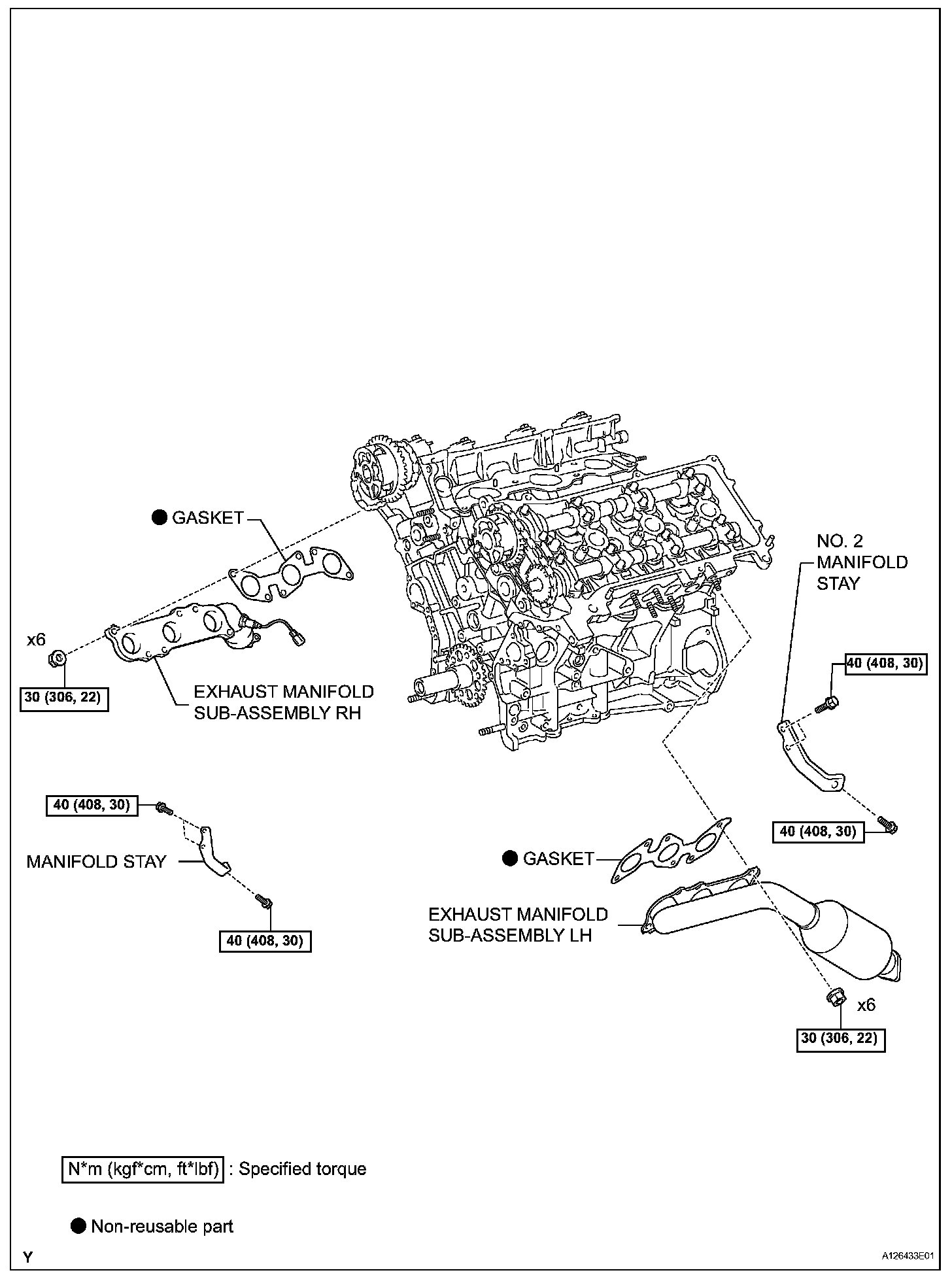

Knock Sensor (Part 1):

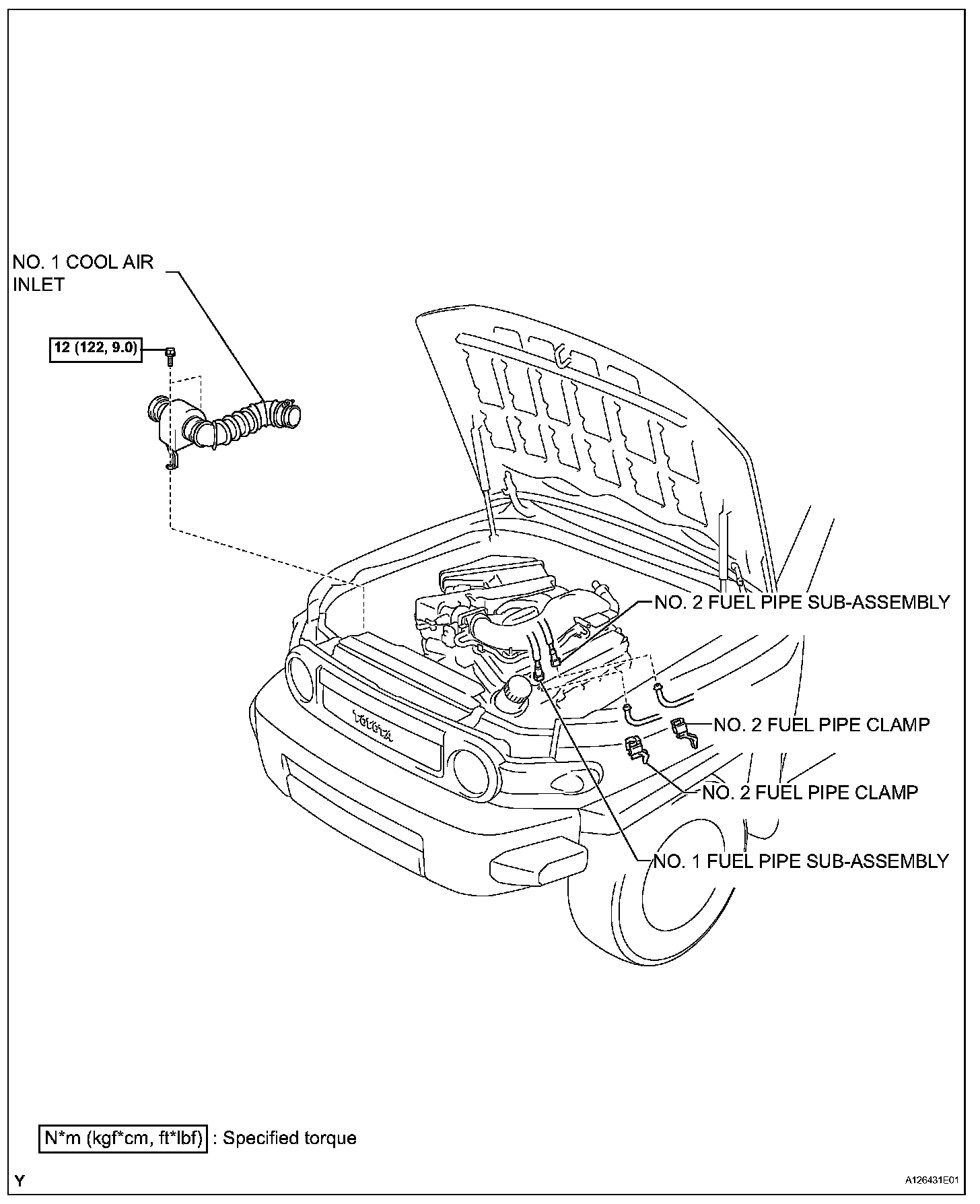

Knock Sensor (Part 2):

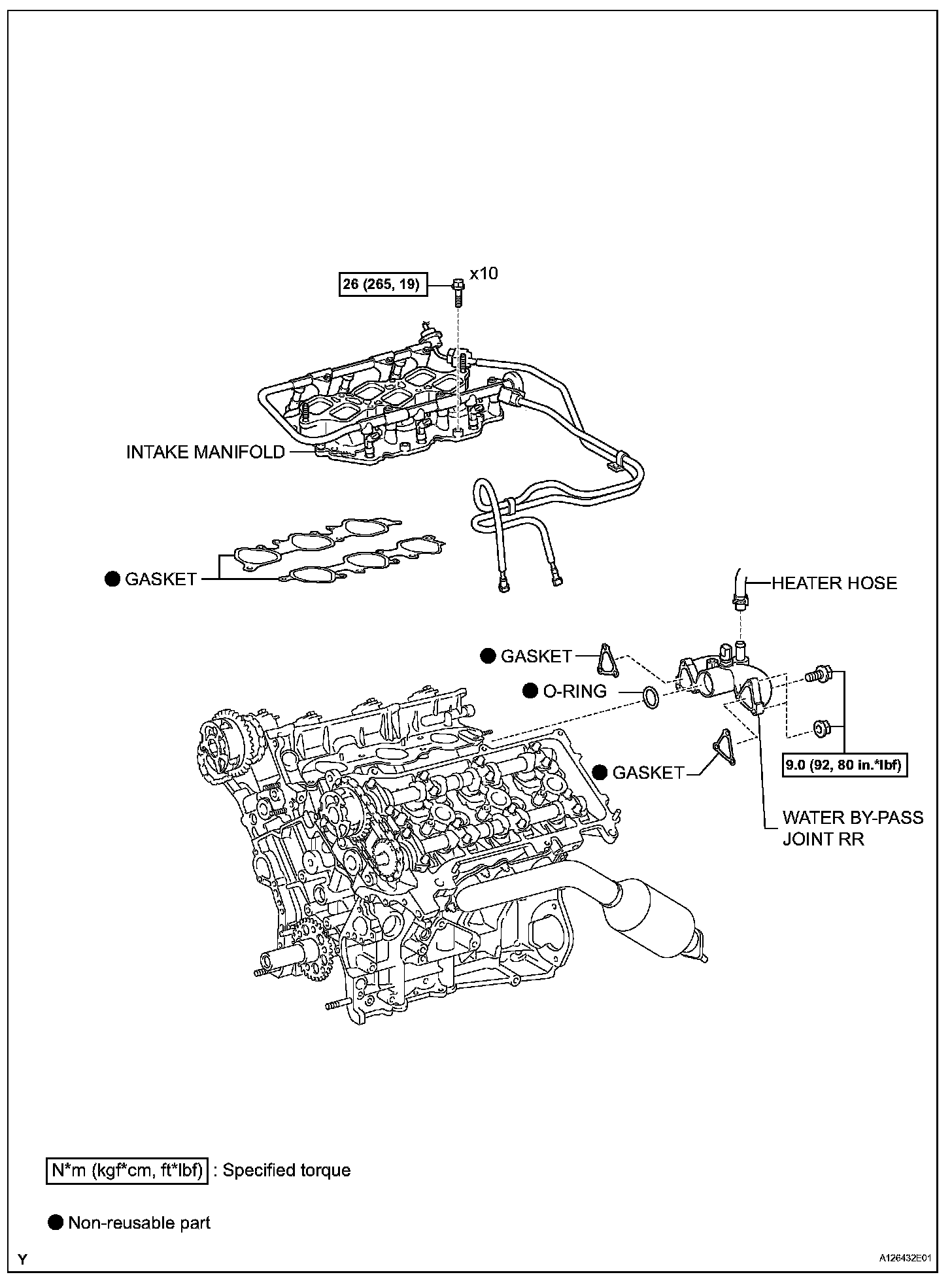

Knock Sensor (Part 3):

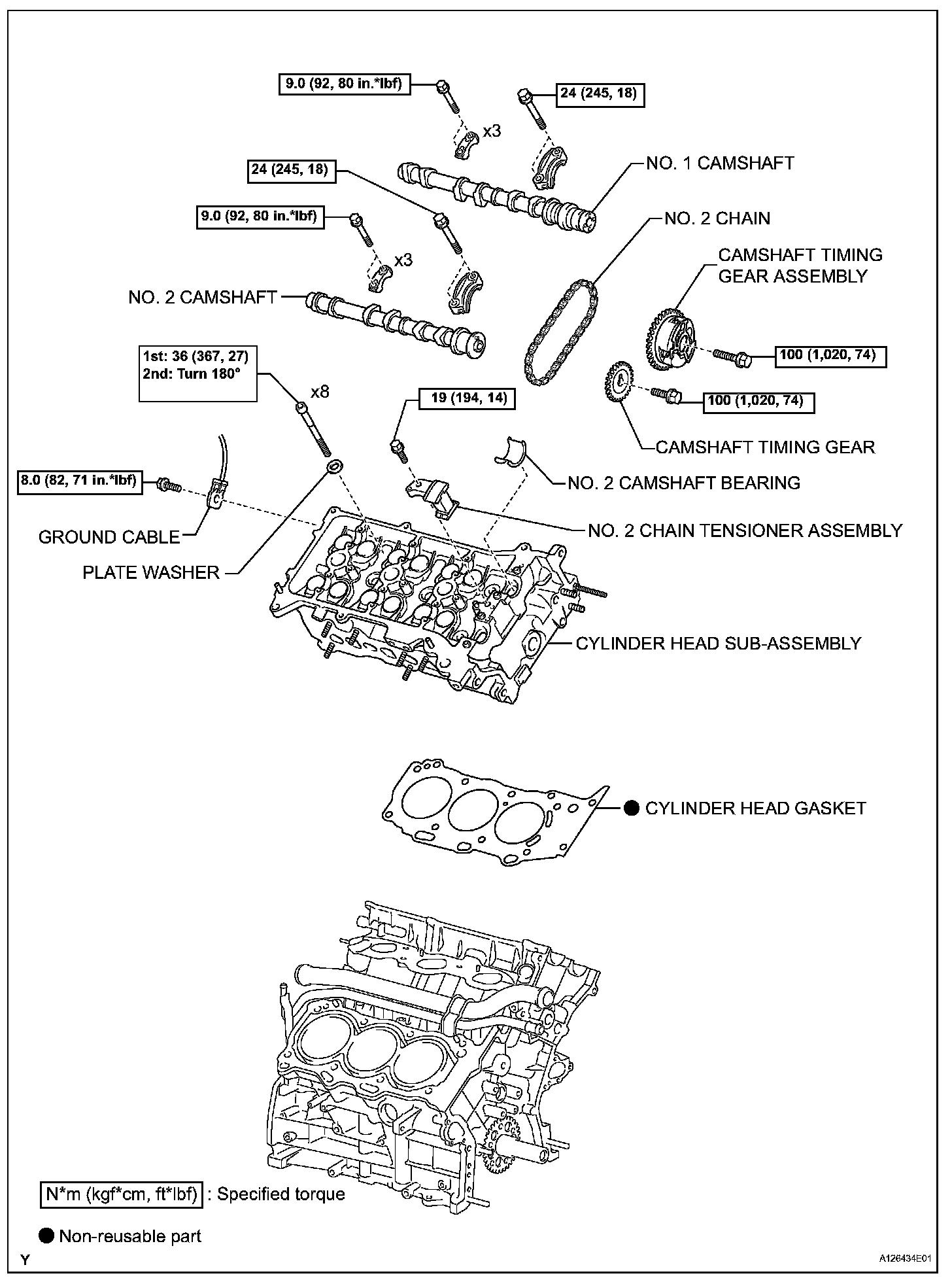

Knock Sensor (Part 4):

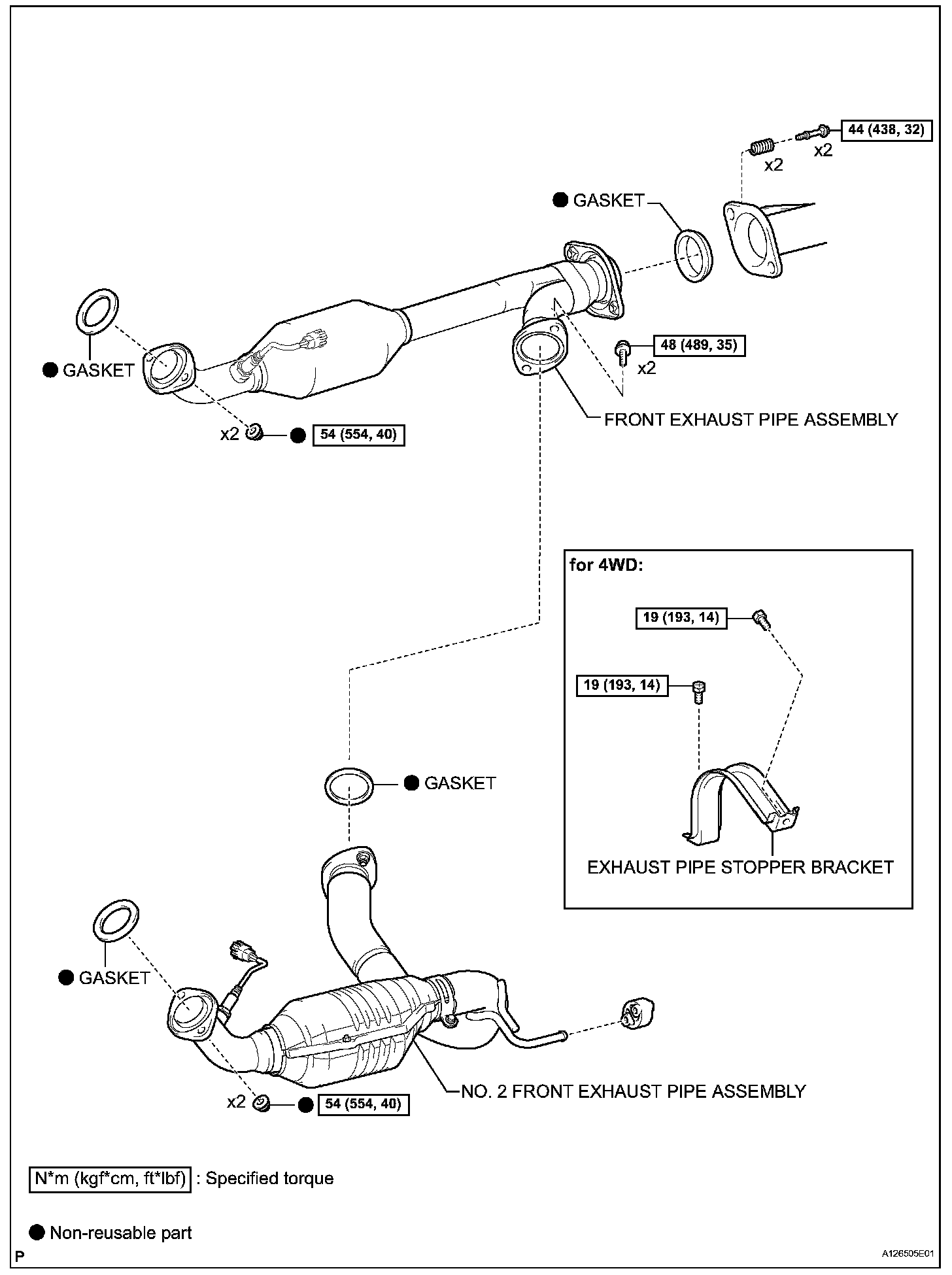

Knock Sensor (Part 5):

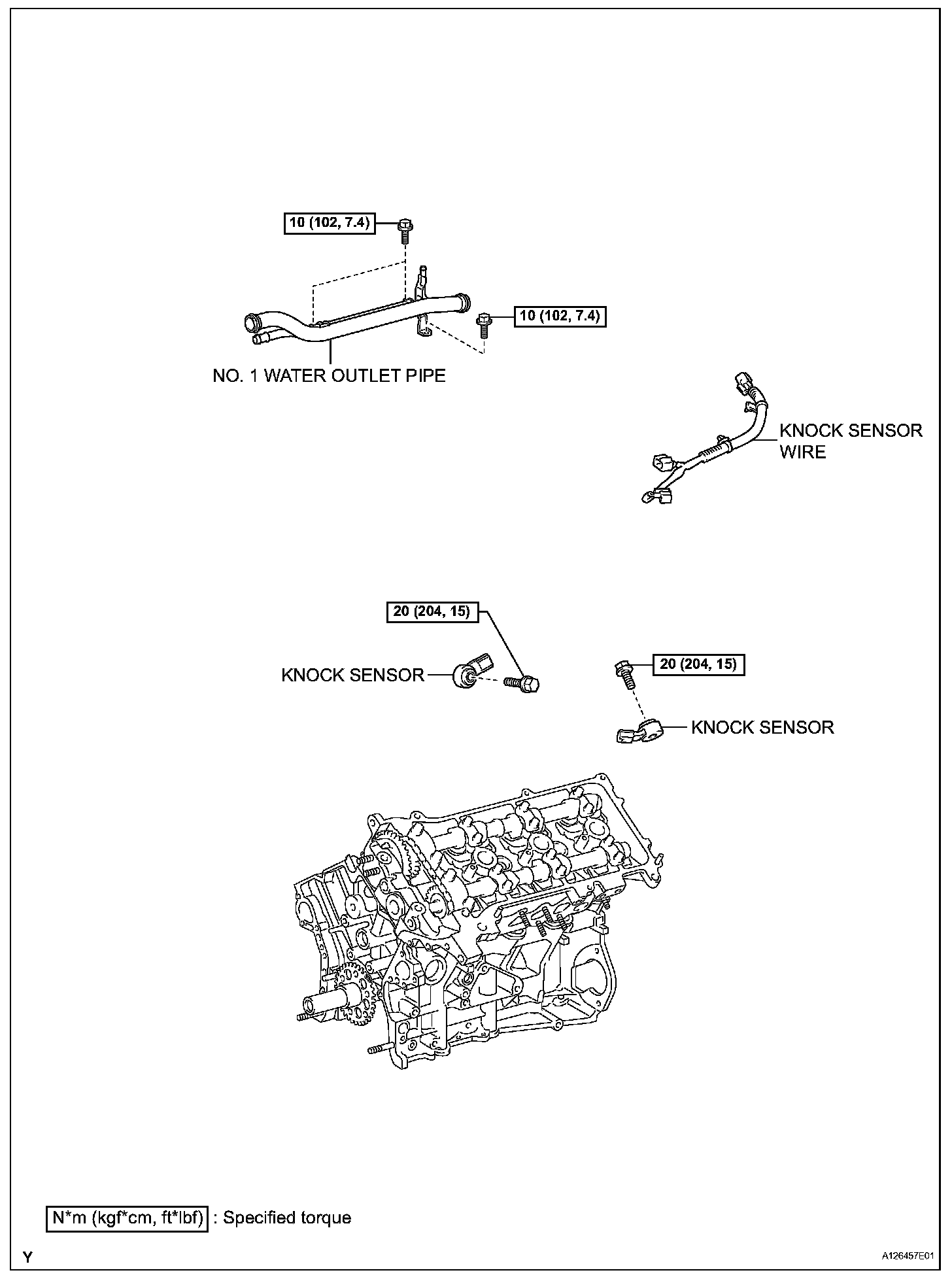

Knock Sensor (Part 6):
