Variable Valve Timing Actuator

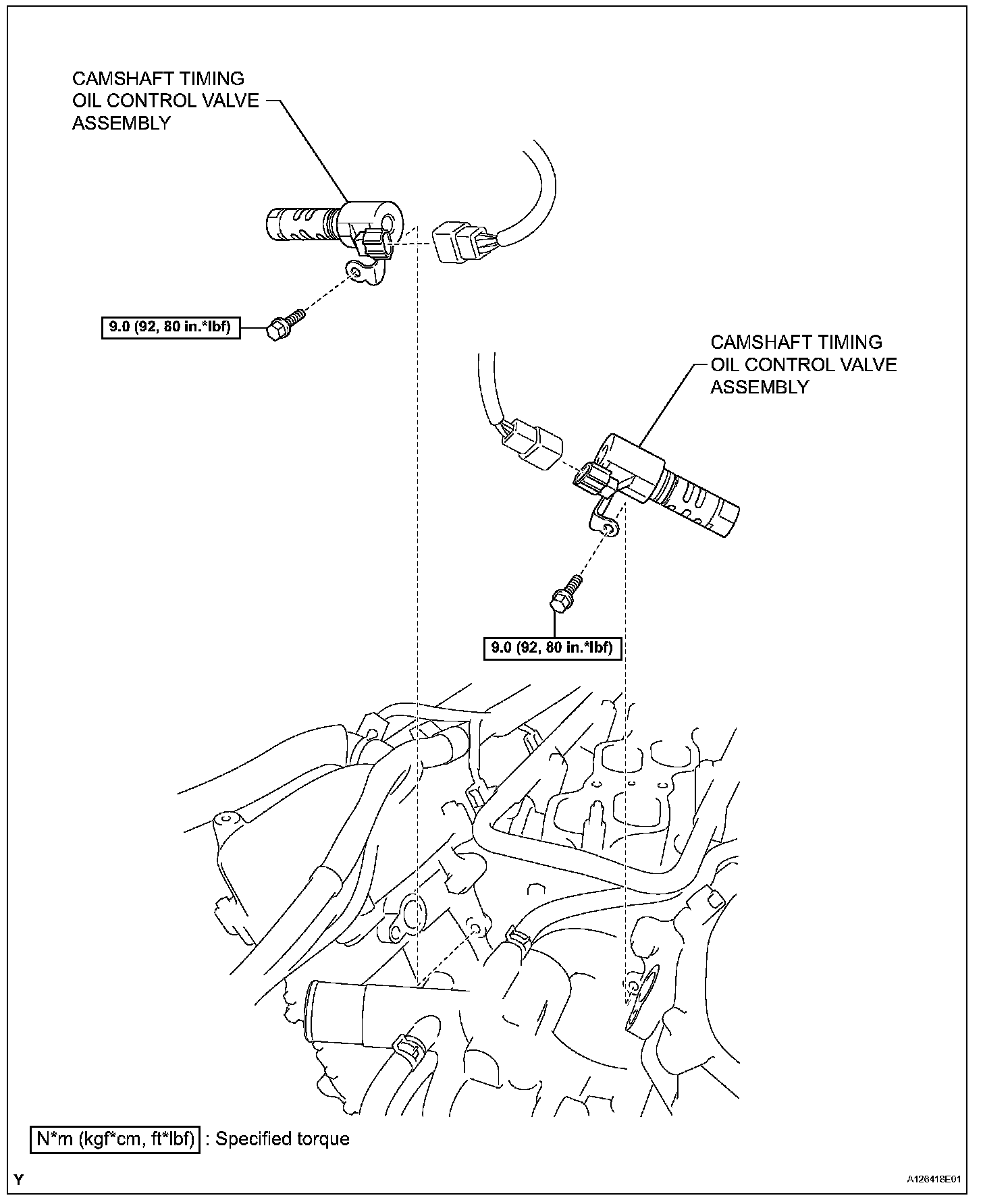

Camshaft Timing Oil Control Valve Assembly (Part 1):



Camshaft Timing Oil Control Valve Assembly (Part 2):



Camshaft Timing Oil Control Valve Assembly (Part 3):
