Power Distribution Relay: Testing and Inspection
INVERTER RELAYON-VEHICLE INSPECTION
1. INSPECT INVERTER RELAY
a. Check the resistance.

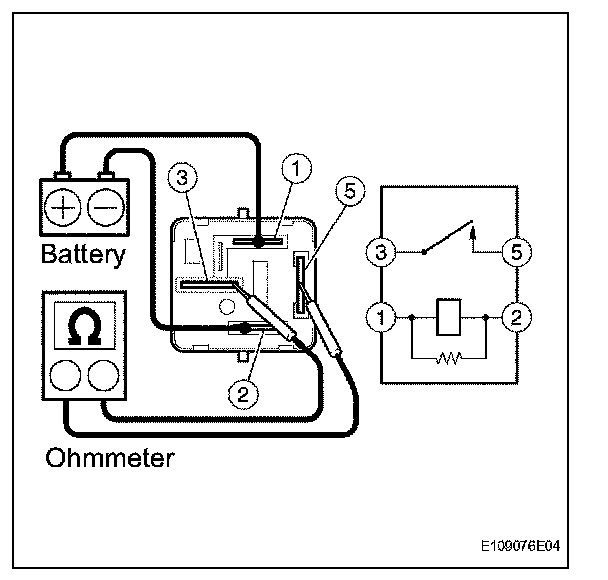

1. Using an ohmmeter, measure the resistance between the terminals.

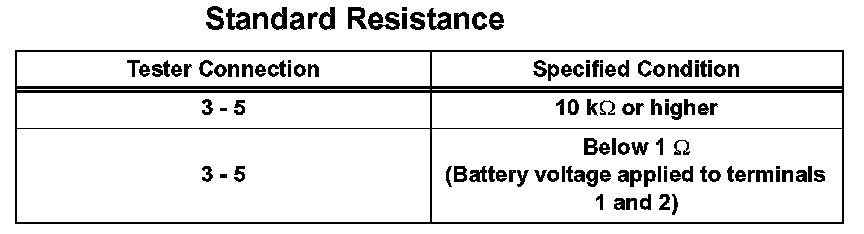

If the result is not as specified, replace the inverter relay.
