Coolant Temperature Sensor/Switch (For Computer): Service and Repair
REMOVAL1. DISCHARGE FUEL SYSTEM PRESSURE
2. DRAIN ENGINE COOLANT
3. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
4. REMOVE V-BANK COVER
5. REMOVE AIR CLEANER ASSEMBLY
6. REMOVE THROTTLE BODY BRACKET
7. REMOVE OIL BAFFLE PLATE
8. REMOVE NO. 1 SURGE TANK STAY
9. REMOVE NO. 2 SURGE TANK STAY
10. REMOVE INTAKE AIR SURGE TANK
11. DISCONNECT NO. 2 FUEL PIPE SUB-ASSEMBLY
12. REMOVE ENGINE COOLANT TEMPERATURE SENSOR

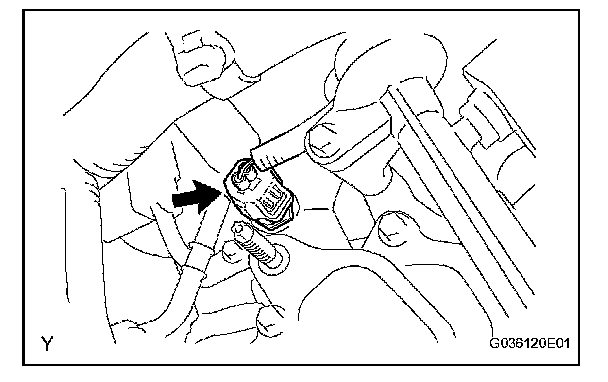

a. Disconnect the connector.

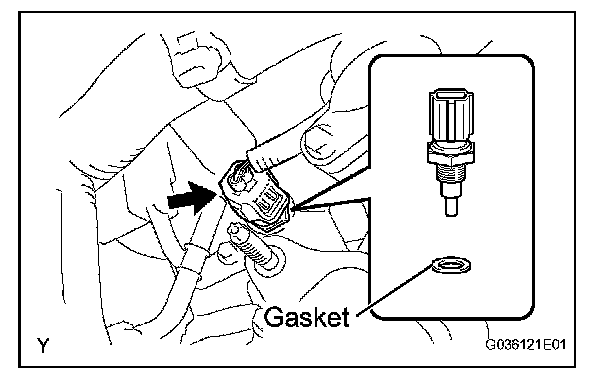

b. Using a 19 mm deep socket wrench, remove the water temperature sensor and gasket.
INSTALLATION
1. INSTALL ENGINE COOLANT TEMPERATURE SENSOR
a. Using a 19 mm deep socket wrench, install the water temperature sensor with a new gasket.
Torque: 20 N.m (204 kgf.cm, 15 ft.lbf)
b. Connect the connector
2. CONNECT NO. 2 FUEL PIPE SUB-ASSEMBLY
3. INSTALL INTAKE AIR SURGE TANK
4. INSTALL NO. 2 SURGE TANK STAY
5. INSTALL NO. 1 SURGE TANK STAY
6. INSTALL OIL BAFFLE PLATE
7. INSTALL THROTTLE BODY BRACKET
8. INSTALL AIR CLEANER ASSEMBLY
9. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 3.9 N.m (40 kgf.cm, 35 in.lbf)
10. ADD ENGINE COOLANT
11. CHECK FOR ENGINE COOLANT LEAKAGE
12. CHECK FOR FUEL LEAKAGE
13. INSTALL V-BANK COVER.
