Crankshaft Position Sensor: Testing and Inspection

INSPECTION




1. INSPECT CRANKSHAFT POSITION SENSOR

a. Check the resistance.

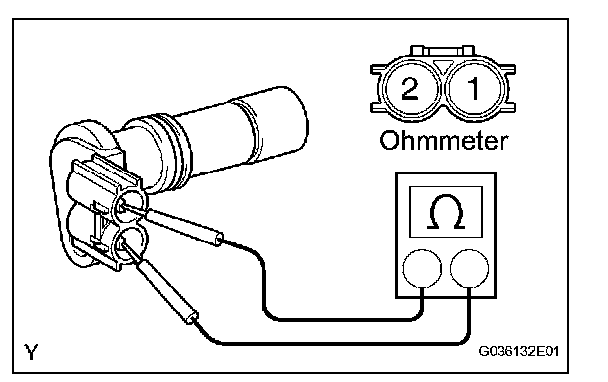

1. Using an ohmmeter, measure the resistance between the terminals.

Standard resistance: 1,850 to 2,450 ohms at 20°C (68°F)

If the result is not as specified, replace the crankshaft position sensor.
