Fail-Safe Chart

FAIL-SAFE CHART

1. FAIL-SAFE FUNCTION
a. When communication fails in any of the CAN bus lines (communication lines) due to a short circuit or other causes, the fail-safe function, which is specified for each system, operates to prevent the system from malfunctioning.

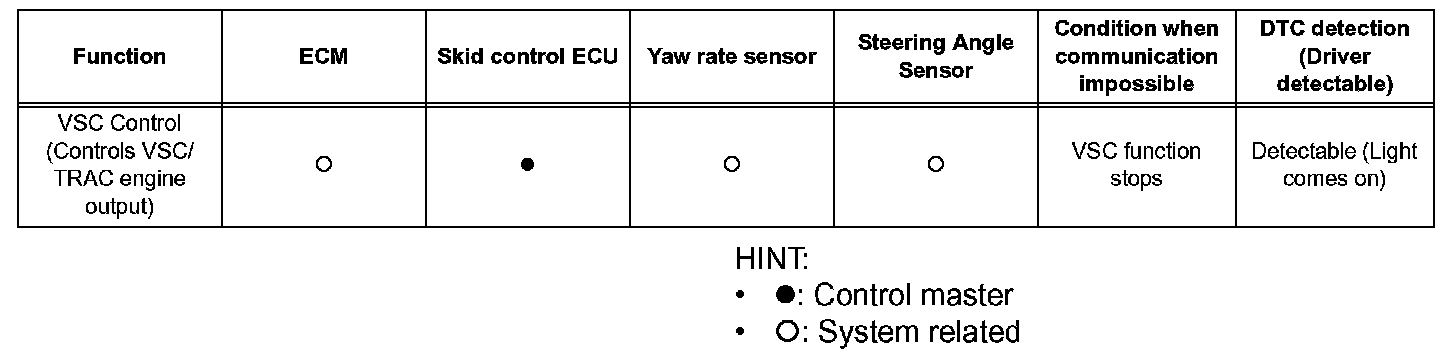

b. Relationships between components and system functions and effects of communication failure on these functions.
