Air Fuel Ratio Sensor
INSPECTION1. REMOVE AIR FUEL RATIO SENSOR
a. Check the resistance.

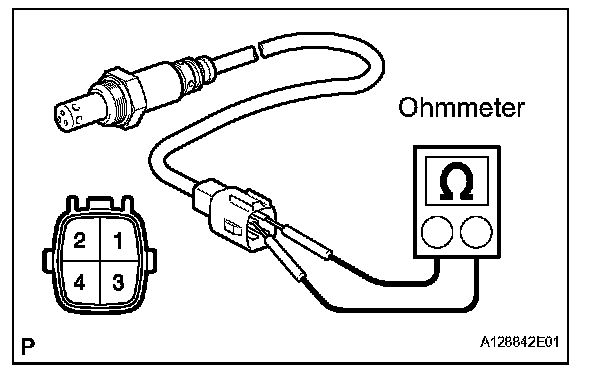

1. Using an ohmmeter, measure the resistance between the terminals.

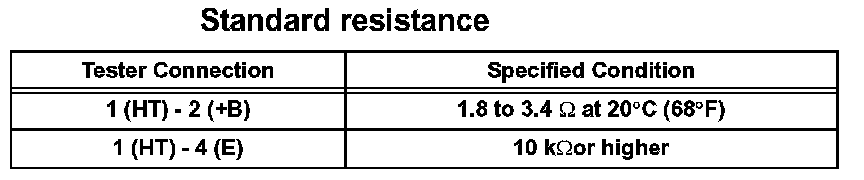

If the result is not as specified, replace the air fuel ratio sensor.
1. REMOVE AIR FUEL RATIO SENSOR
a. Check the resistance.
1. Using an ohmmeter, measure the resistance between the terminals.
If the result is not as specified, replace the air fuel ratio sensor.
