Variable Valve Timing Actuator Position Sensor: Service and Repair
REMOVAL1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
2. DRAIN ENGINE COOLANT
3. REMOVE V-BANK COVER
4. REMOVE AIR CLEANER ASSEMBLY
5. REMOVE VVT SENSOR
a. Bank 1 side VVT sensor:

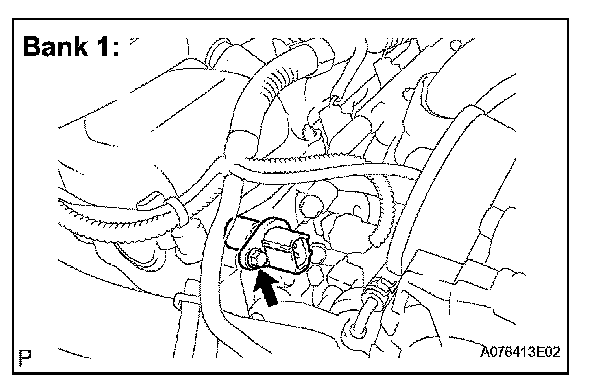

1. Disconnect the VVT sensor connector.
2. Remove the bolt and VVT sensor.
b. Bank 2 side VVT sensor:

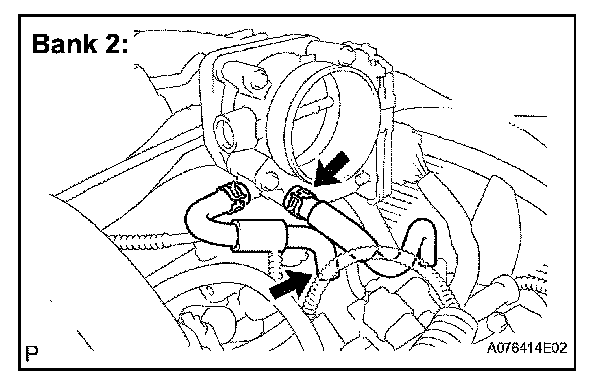

1. Disconnect the No. 4 water by-pass hose and No. 5 water by-pass hose.
2. Disconnect the VVT sensor connector.

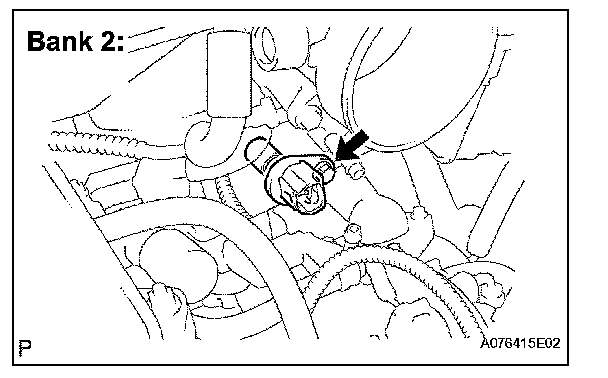

3. Remove the bolt and VVT sensor.
INSTALLATION
1. INSTALL VVT SENSOR
a. Bank 2 side VVT sensor:

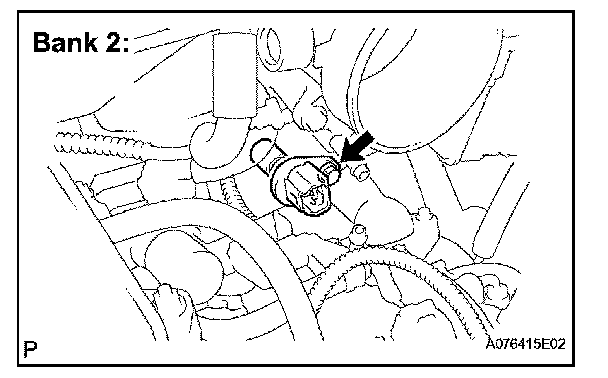

1. Apply a light coat of engine oil to the O-ring of the VVT sensor.
2. Install the VVT sensor with the bolt.
Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)
3. Connect the VVT sensor connector.

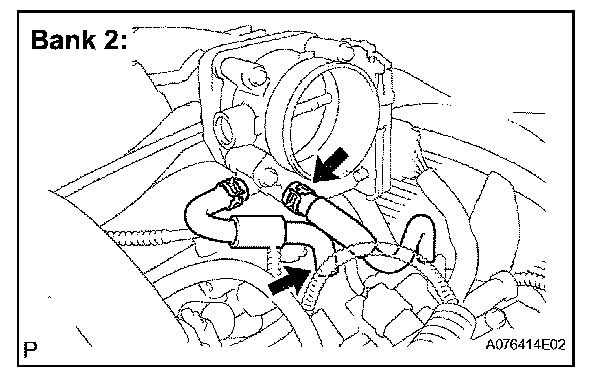

4. Connect the No. 4 water by-pass hose and No. 5 water by-pass hose.
b. Bank 1 side VVT sensor:

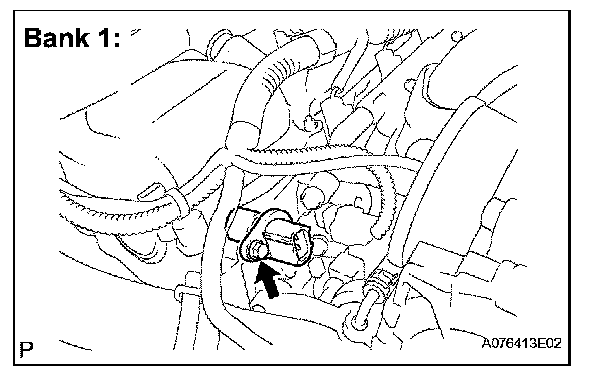

1. Apply a light coat of engine oil to the O-ring of the VVT sensor.
2. Install the VVT sensor with the bolt.
Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)
3. Connect the VVT sensor connector.
2. INSTALL AIR CLEANER ASSEMBLY
3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 3.9 N.m (40 kgf.cm, 35 in.lbf)
4. ADD ENGINE COOLANT
5. CHECK FOR ENGINE COOLANT LEAKAGE
6. INSTALL V-BANK COVER.
