Ignition Timing: Testing and Inspection

INSPECT IGNITION TIMING

NOTICE:
^ Turn all the electrical systems OFF.
^ Conduct the inspection when the cooling fan motor is turned OFF.

(a) Warm up the engine.





(b) When using the intelligent tester:

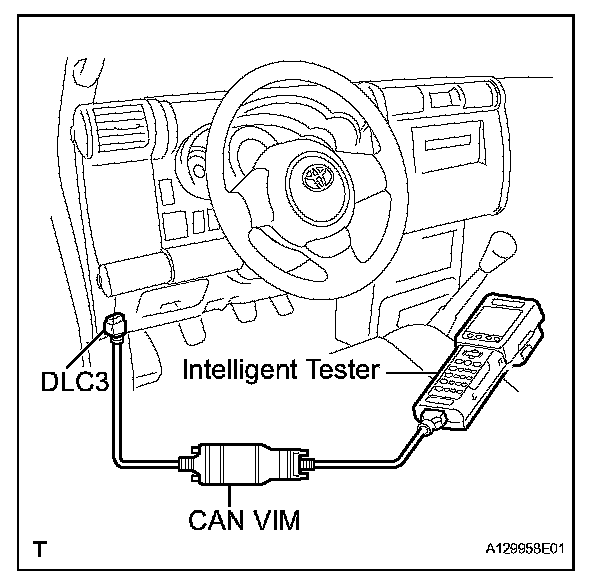

(1) Connect the intelligent tester to the DLC3.
(2) Select the following menu items: DIAGNOSIS / ENHANCED OBD II / DATA LIST / PRIMARY / IGN ADVANCE.
(3) Inspect the ignition timing during idling.
Ignition timing: 7 to 24°CA BTDC during idling (Transmission in neutral position)
(4) Check that the ignition timing advances immediately when the engine speed is increased.





(c) When not using intelligent tester:

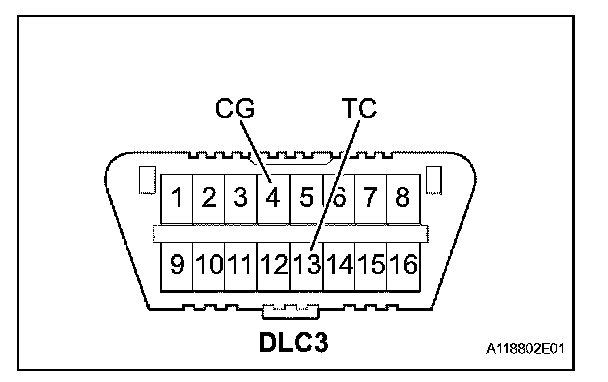

(1) Using SST, connect the terminals 13 (TC) and 4 (CG) of the DLC3.
SST 09843-18040

NOTICE: Do not connect the terminals incorrectly as it causes breakage of the engine.

(2) Remove the air cleaner.

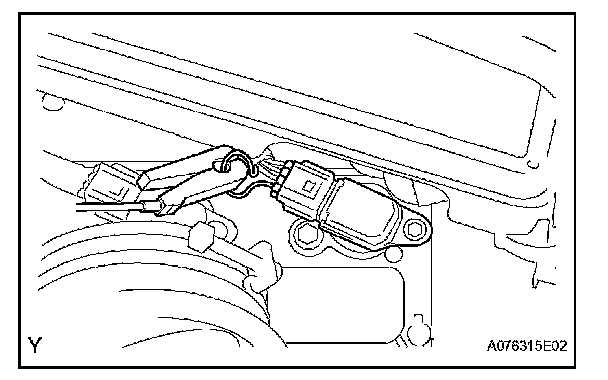

(3) Pull out the wire harness shown in the illustration.
(4) Connect the tester probe of a timing light to the wire of the ignition coil connector for the No. 1 cylinder.

NOTICE:
^ Use timing light that detects the first signal.
^ After checking, wrap the wire harness with tape.

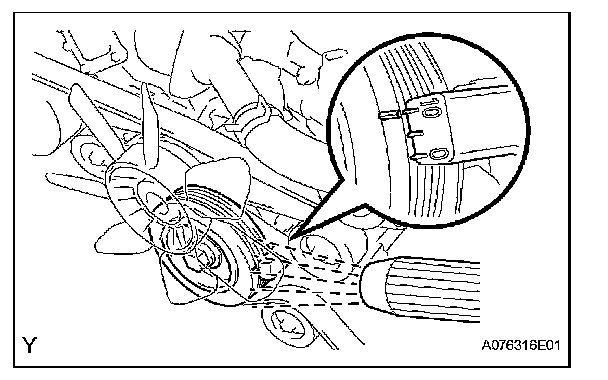

(5) Inspect the ignition timing during idling.
Ignition timing: 8 to 12°CA BTDC during idling (Transmission in neutral position)
(6) Remove SST from the DLC3.
(7) Inspect the ignition timing during idling.
Ignition timing: 7 to 24°CA BTDC during idling (Transmission in neutral position)
(8) Install the air cleaner.
