Speed Sensor Inspection

INSPECTION

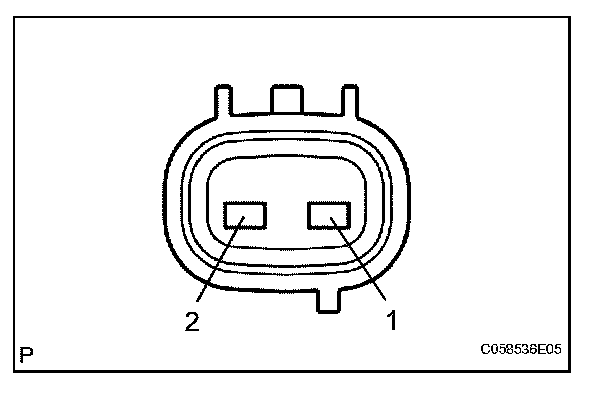

1. INSPECT TRANSMISSION REVOLUTION SENSOR (NT)
(a) Measure the resistance of the sensor.

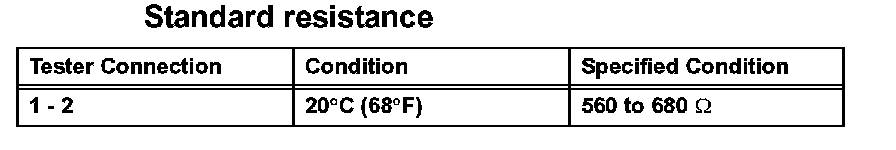

Standard resistance:

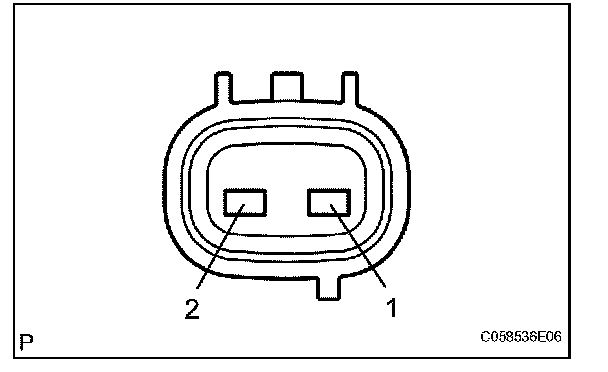

2. INSPECT TRANSMISSION REVOLUTION SENSOR (SP2)
(a) Measure the resistance of the sensor.

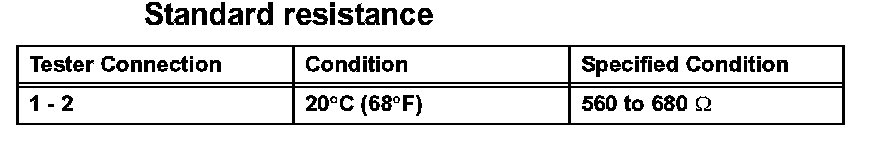

Standard resistance:
