System Specifications
Cylinder BlockCrankshaft thrust clearance
Standard 0.04 to 0.24 mm (0.0016 to 0.0094 in.)
Maximum 0.30 mm (0.0118 in.)
Cylinder block warpage
Maximum 0.05 mm (0.0020 in.)
Cylinder bore diameter
Standard 94.000 to 94.012 mm (3.7008 to 3.7013 in.)
Maximum 94.132 mm (3.7060 in.)
Crankshaft bearing cap set bolt Diameter
Standard 10.0 to 10.2 mm (0.393 to 0.402 in.)
Crankshaft Circle runout
Maximum 0.06 mm (0.0024 in.)
Main journal Diameter 71.988 to 72.000 mm (2.8342 to 2.8346 in.)
Main journal Taper and out-of-round
Maximum 0.02 mm (0.0008 in.)
Crank pin Diameter 55.992 to 56.000 mm (2.2044 to 2.2047 in.)
Crank pin Taper and out-of-round
Maximum 0.02 mm (0.0008 in.)
Crankshaft
Oil clearance
Standard 0.018 to 0.030 mm (0.0007 to 0.0012 in.)
Maximum 0.046 mm (0.0018 in.)
Thrust clearance 0.04 to 0.24 mm (0.0016 to 0.0094 in.)
Maximum 0.30 mm (0.0018 in.)
Straight pin Protrusion
Pin A Standard 22.5 to 23.5 mm (0.886 to 0.925 in.)
Pin B Standard 10.5 to 11.5 mm (0.413 to 0.453 in.)
Pin C Standard 8.5 to 9.5 mm (0.335 to 0.374 in.)
Pin D Standard 5.5 to 6.5 mm (0.217 to 0.256 in.)
CRANKSHAFT MAIN BEARING
Temporarily install the 8 main bearing cap bolts in the inside positions.

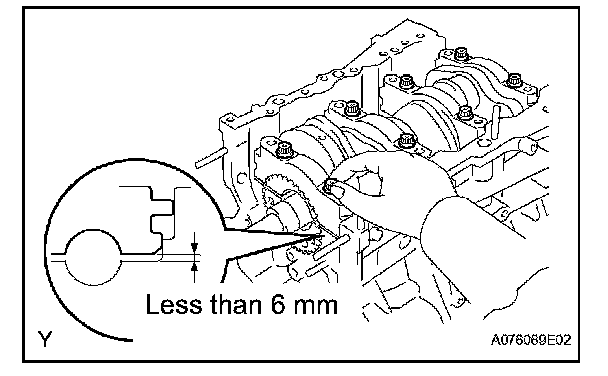

Install the main bearing caps. Tighten the 2 bolts for each bearing cap until the clearance between the bearing cap and the cylinder block is under 6 mm (0.23 in.).

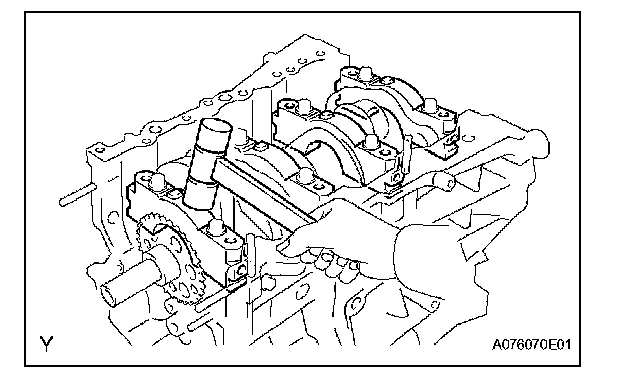

Using a plastic-faced hammer, lightly tap the bearing cap to ensure a proper fit.
Apply a light coat of engine oil to the threads of the main bearing cap bolts.

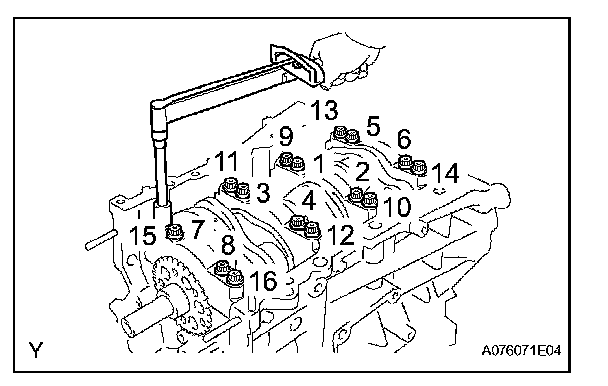

Install the 16 main bearing cap bolts. Using several steps, tighten the bolts uniformly in the sequence shown in the illustration.
Torque 61 N*m (622 kgf*cm, 45 ft.*lbf.)
Mark the front side of the bearing cap bolts with paint.

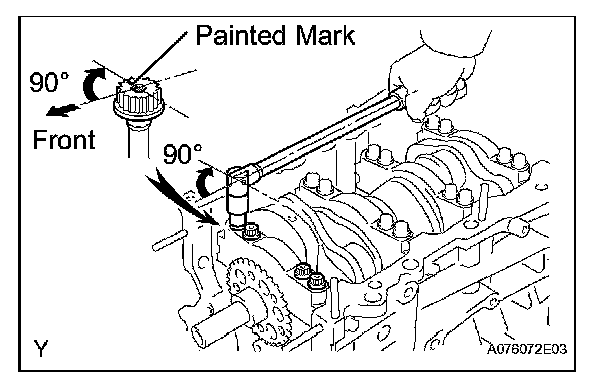

Retighten the bearing cap bolts 90° in the sequence as shown.
Check that the painted marks are now at a 90° angle from the front.

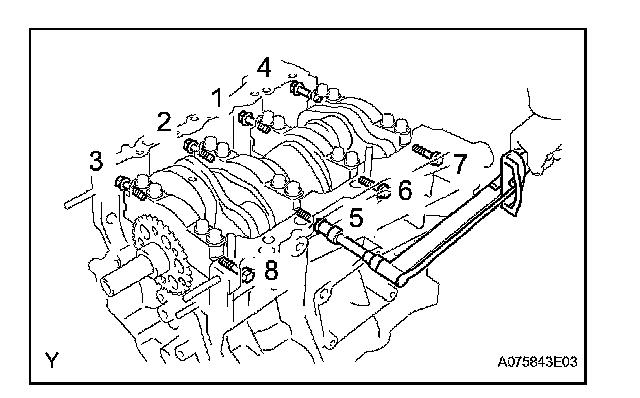

Using several steps, tighten the 8 main bearing cap bolts uniformly in the sequence shown in the illustration.
Torque 25 N*m (255 kgf*cm, 18 ft.*lbf.)
Connecting Rod
Connecting rod
Thrust clearance
Standard 0.15 to 0.30 mm (0.0059 to 0.0118 in.)
Maximum 0.35 mm (0.0138 in.)
Oil clearance
Standard 0.026 to 0.046 mm (0.0010 to 0.0018 in.)
Maximum 0.066 mm (0.0025 in.)
Connecting rod out-of alignment
Maximum 0.05 mm (0.0020 in.) per 100 mm (3.94 in.)
Connecting rod twist
Maximum 0.15 mm (0.0059 in.) per 100 mm (3.94 in.)
Connecting rod bushing
Internal diameter 22.005 to 22.014 mm (0.8662 to 0.8665 in.)
Connecting rod bolt
Diameter
Standard 7.2 to 7.3 mm (0.283 to 0.287 in.)
Minimum 7.0 mm (0.276 in.)
Thrust clearance
Standard 0.15 to 0.30 mm (0.0059 to 0.0118 in.)
Minimum 0.35 mm (0.0138 in.)
CONNECTING ROD CAP
Apply a light coat of engine oil to the threads of the connecting rod cap bolts.
Tighten the bolts alternately to the specified torque.
Torque 25 N*m (250 kgf*cm, 18 ft.*lbf.)
Mark the front side of the each connecting cap bolt with paint.
Retighten the cap bolts 90° as shown in the illustration.
Piston
Piston
Diameter 93.910 to 93.940 mm (3.6972 to 3.6984 in.)
Oil clearance
Standard 0.060 to 0.102 mm (0.0031 to 0.0040 in.)
Maximum 0.13 mm (0.0051 in.)
Piston pin
Diameter 21.997 to 22.006 mm (0.8660 to 0.8664 in.)
Oil clearance
Standard 0.005 to 0.011 mm (0.0002 to 0.0004 in.)
Maximum 0.050 mm (0.0020 in.)
Piston ring
Groove clearance
No. 1 0.02 to 0.07 mm (0.0008 to 0.0028 in.)
No. 2 0.02 to 0.06 mm (0.0008 to 0.0024 in.)
Oil 0.07 to 0.15 mm (0.0028 to 0.0060 in.)
Piston pin
Internal diameter 22.001 to 22.010 mm (0.8662 to 0.8665 in.)
Piston ring
End gap
No. 1
Standard 0.30 to 0.40 mm (0.0118 to 0.0157 in.)
Maximum 1.0 mm (0.039 in.)
No. 2
Standard 0.40 to 0.50 mm (0.0157 to 0.0197 in.)
Maximum 1.1 mm (0.043 in.)
Oil (Side rail)
Standard 0.10 to 0.40 mm (0.0039 to 0.0157 in.)
Maximum 1.0 mm (0.039 in.)
CRANKSHAFT PULLEY
Torque 250 N*m (2,549 kgf*cm, 185 ft.*lbf.)
