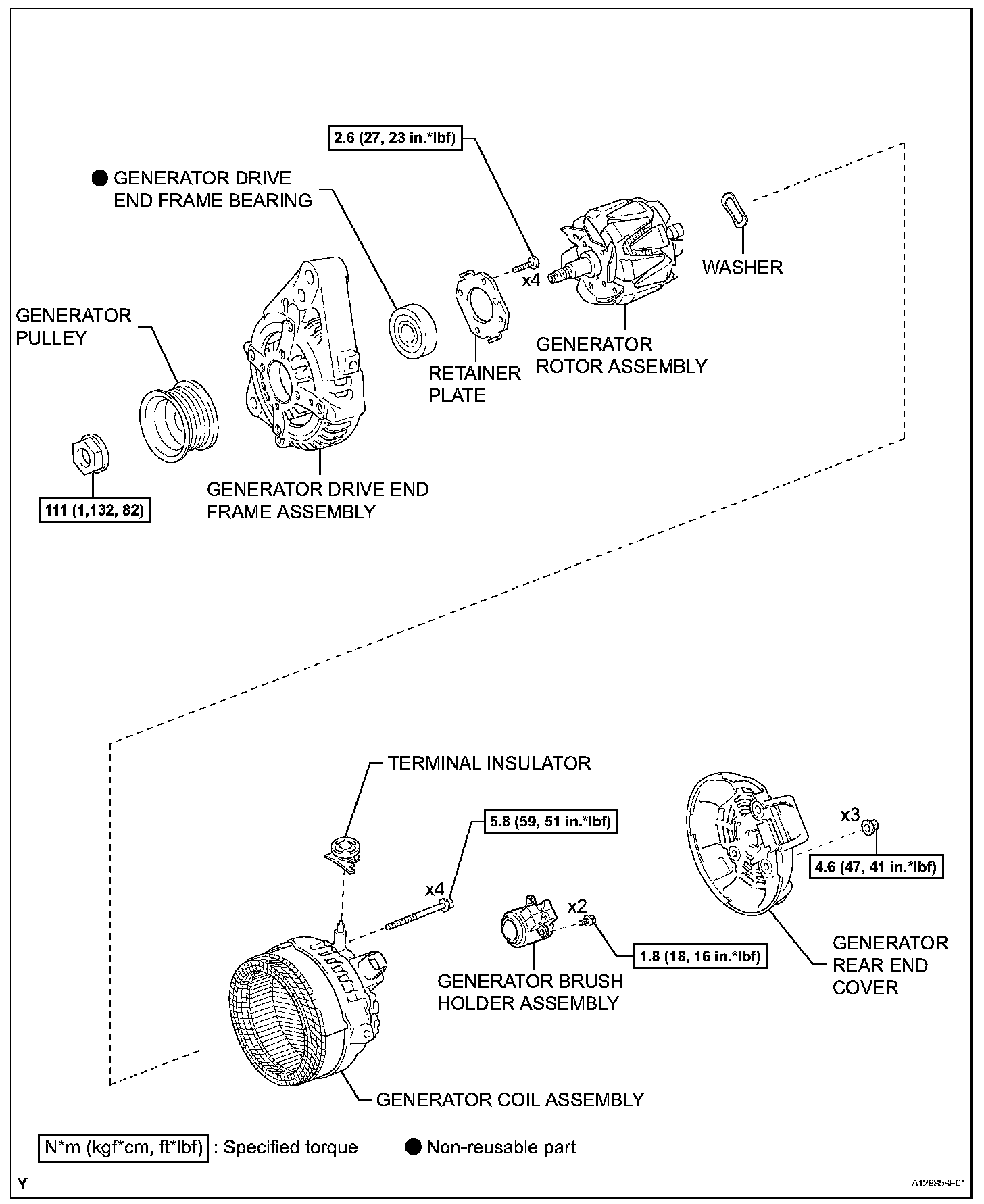

Overhaul

Generator:






DISASSEMBLY







1. REMOVE GENERATOR PULLEY

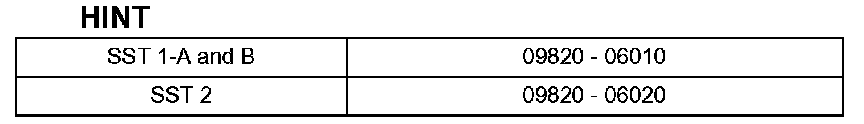

SST 09820-63010 (09820-06010, 09820-06020)

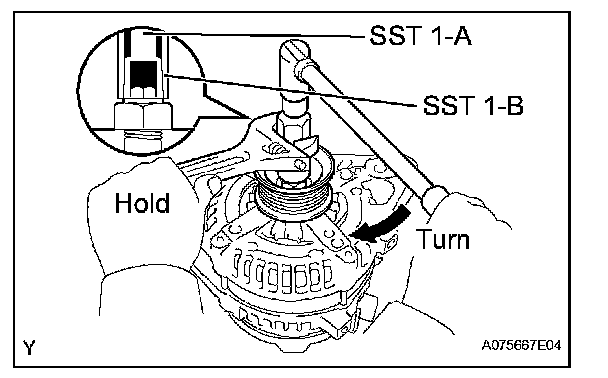

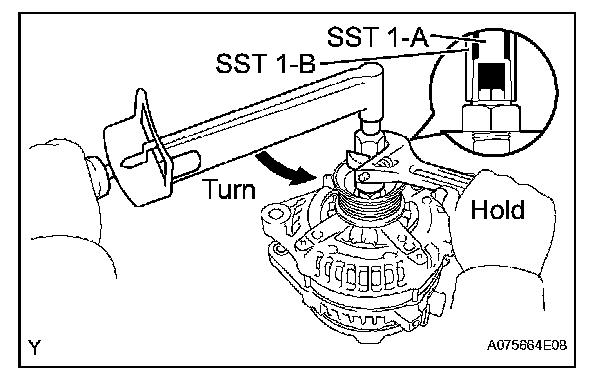

a. Hold SST 1-A with a torque wrench, and tighten SST 1-B clockwise with the specified torque.

Torque: 39 N.m (400 kgf.cm, 29 ft.lbf)

NOTE: Check that SST is secured to the rotor shaft.




b. Mount SST 2 in a vise.

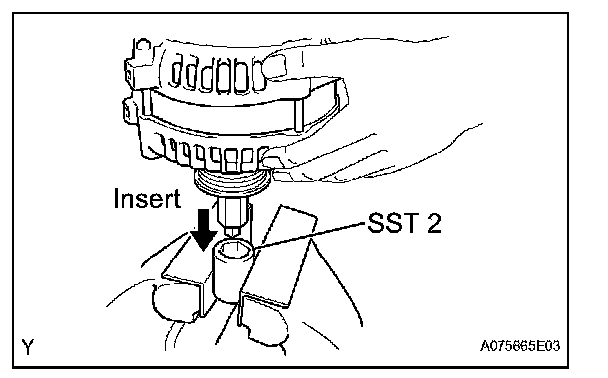

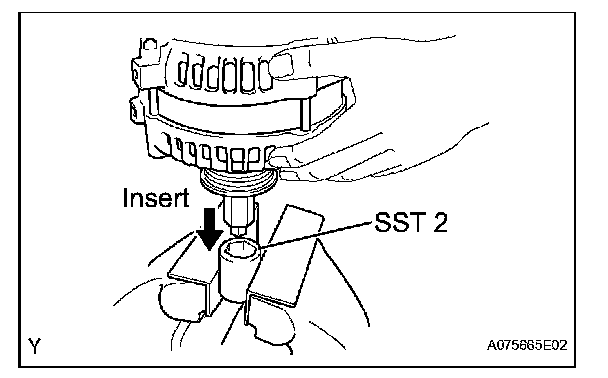

c. Insert SST 1-A and B into SST 2, and attach the pulley nut to SST 2.

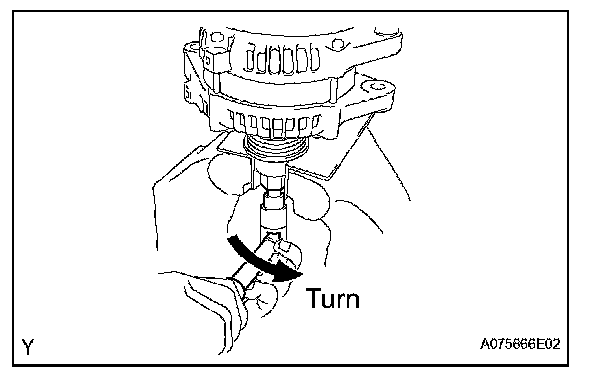

d. To loosen the pulley nut, turn SST 1-A in the direction shown in the illustration.

NOTE: To prevent damage to the rotor shaft, do not loosen the pulley nut more than one-half turn.

e. Remove the generator from SST 2.




f. Turn SST 1-B, and remove SST 1-A and B.
g. Remove the pulley nut and pulley.




2. REMOVE GENERATOR REAR END COVER

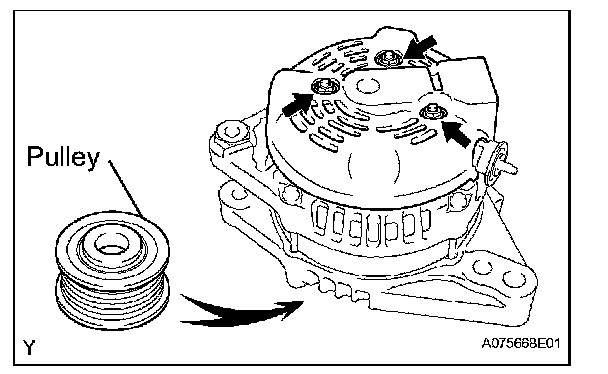

a. Place the generator on the pulley.
b. Remove the 3 nuts and the rear end cover.

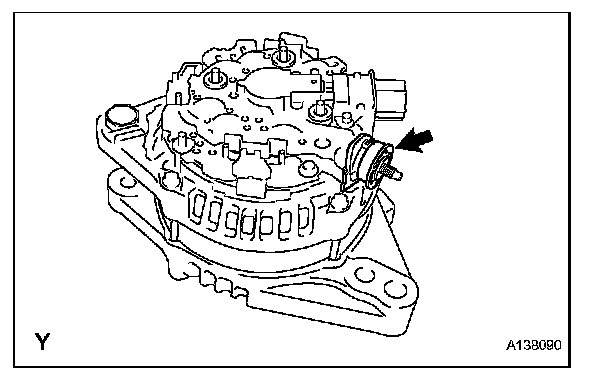

3. REMOVE TERMINAL INSULATOR




4. REMOVE GENERATOR BRUSH HOLDER ASSEMBLY

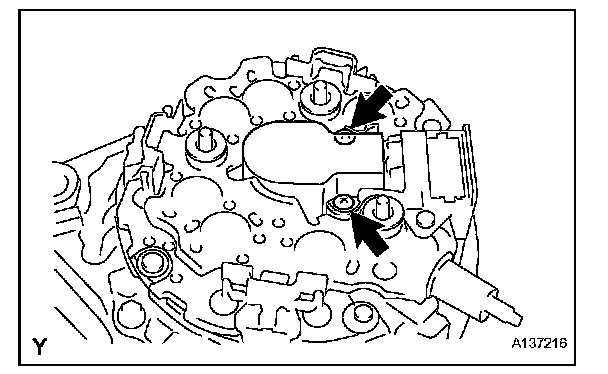

a. Remove the 2 screws and the brush holder.




5. REMOVE GENERATOR COIL ASSEMBLY

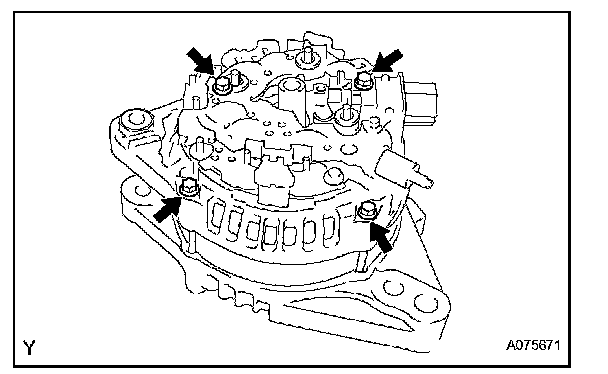

a. Remove the 4 bolts.

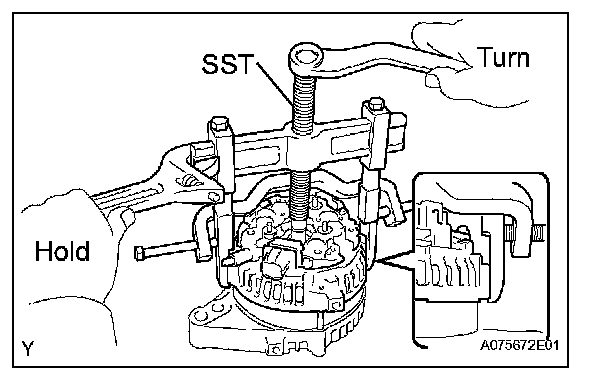

b. Using SST, remove the coil.

SST 09950-40011 (09951-04020, 09952-04010, 09953-04020, 09954-04010, 09955-04071, 09957-04010, 09958-04011)




6. REMOVE GENERATOR ROTOR ASSEMBLY

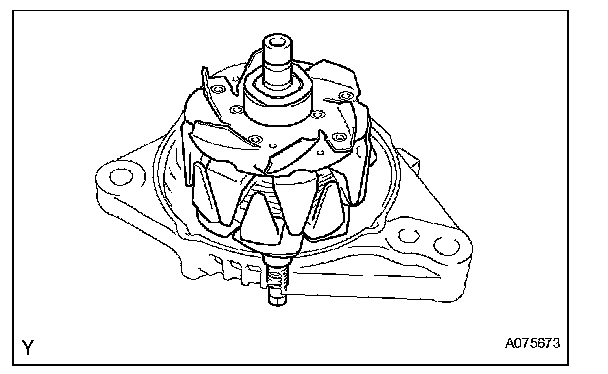

a. Remove the washer and rotor.

7. REMOVE GENERATOR DRIVE END FRAME BEARING

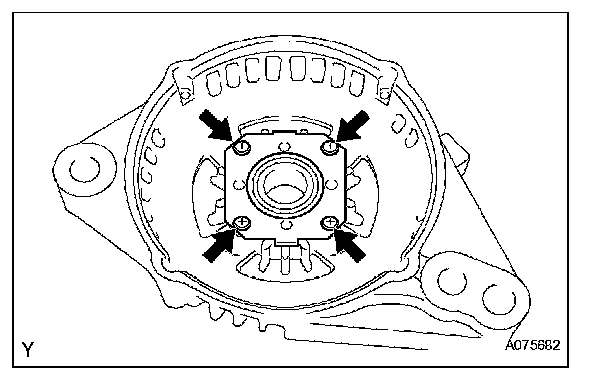

a. Remove the 4 screws and the retainer plate.

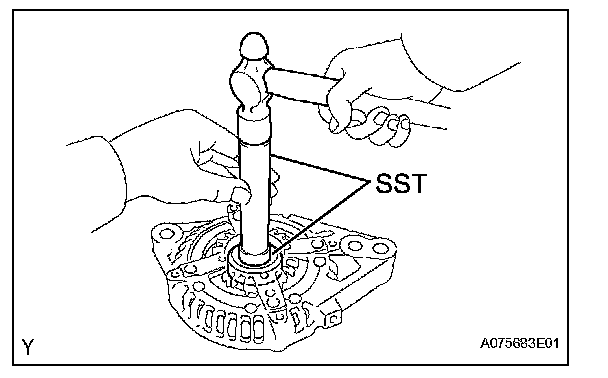

b. Using SST, tap out the bearing.

SST 09950-60010 (09951-00250), 09950-70010 (09951-07100)

REASSEMBLY




1. INSTALL GENERATOR DRIVE END FRAME BEARING

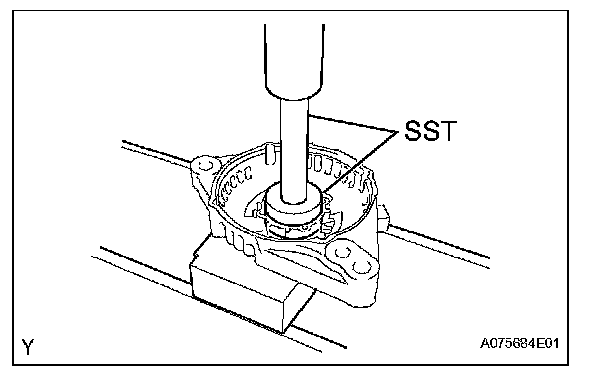

a. Using SST and a press, press in a new bearing.

SST 09950-60010 (09951-00470), 09950-70010 (09951-07100)

b. Install the retainer plate with the 4 screws.

Torque: 2.6 N.m (27 kgf.cm, 23 in.lbf)

2. INSTALL GENERATOR ROTOR ASSEMBLY
a. Place the drive end frame on the rotor.
b. Install the rotor and washer.




3. INSTALL GENERATOR COIL ASSEMBLY

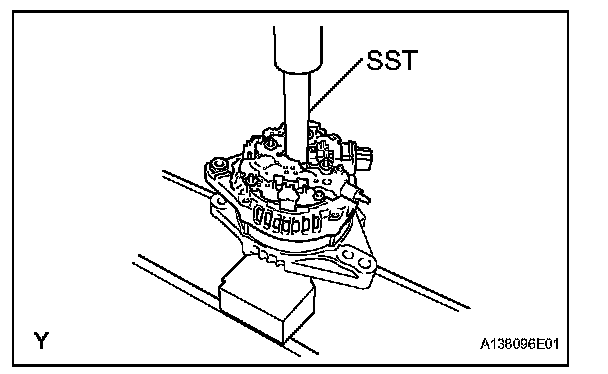

a. Using SST and a press, press in the coil carefully.

SST 09285-76010

b. Install the 4 bolts.

Torque: 5.8 N.m (59 kgf.cm, 51 in.lbf)




4. INSTALL GENERATOR BRUSH HOLDER ASSEMBLY
a. Install the 2 screws.

Torque: 1.8 N.m (18 kgf.cm, 16 in.lbf)

5. INSTALL TERMINAL INSULATOR
6. INSTALL GENERATOR REAR END COVER
a. Install the rear end cover with the 3 nuts.

Torque: 4.6 N.m (47 kgf.cm, 41 in.lbf)







7. INSTALL GENERATOR PULLEY

SST 09820-63010 (09820-06010, 09820-06020)

a. Install the pulley onto the rotor shaft by tightening the pulley nut by hand.

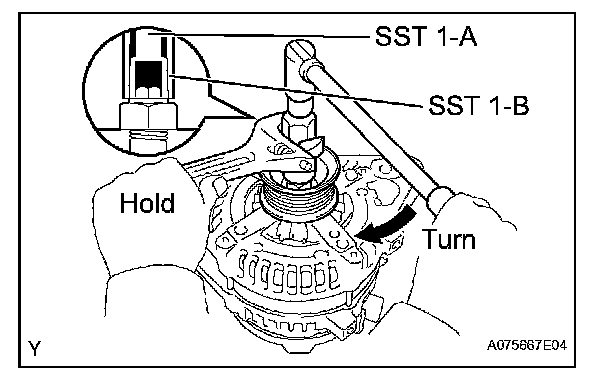

b. Hold SST 1-A with a torque wrench, and tighten SST 1-B clockwise with the specified torque.

Torque: 39 N.m (400 kgf.cm, 29 ft.lbf)

NOTE: Check that SST is secured to the rotor shaft.




c. Mount SST 2 in a vice.
d. Insert SST 1-A and B into SST 2, and attach the pulley nut to SST 2.




e. Tighten the pulley nut by turning SST 1-A in the direction shown in the illustration.

Torque: 111 N.m (1,132 kgf.cm, 82 ft.lbf)

f. Remove the generator from SST 2.




g. Turn SST 1-B, and remove SST 1-A and B.
h. Turn the pulley, and check that the pulley moves smoothly.
