Ignition Switch: Testing and Inspection
INSPECTION1. INSPECT IGNITION SWITCH ASSEMBLY

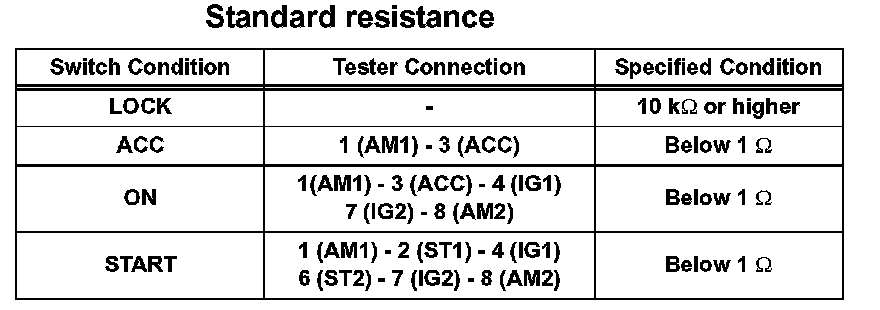

a. Check the resistance.

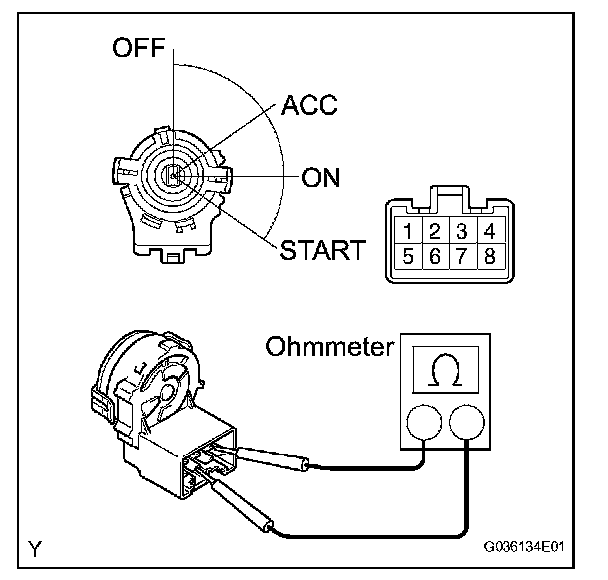

1. Using an ohmmeter, measure the resistance between the terminals.
If the result is not as specified, replace the ignition switch.
1. INSPECT IGNITION SWITCH ASSEMBLY
a. Check the resistance.
1. Using an ohmmeter, measure the resistance between the terminals.
If the result is not as specified, replace the ignition switch.
