Power Window Motor: Service and Repair

POWER WINDOW REGULATOR MOTOR

Power Window Regulator Motor:

REMOVAL

HINT:
- Use the same procedure for both the RH and LH sides.
- The procedure described below is for the RH side.

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

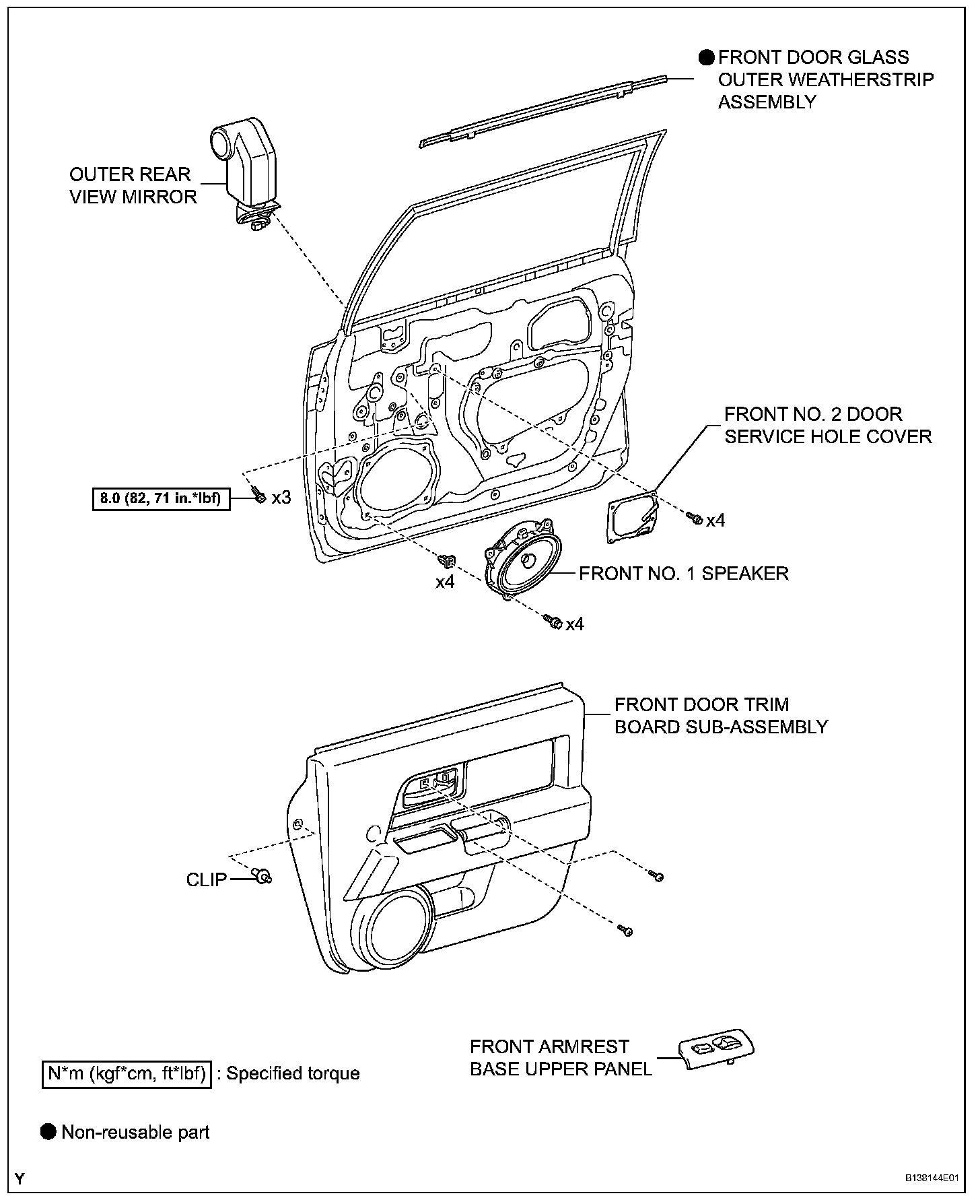

2. REMOVE FRONT ARMREST BASE UPPER PANEL
3. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY
4. REMOVE FRONT NO. 2 DOOR SERVICE HOLE COVER
5. REMOVE OUTER REAR VIEW MIRROR
6. REMOVE FRONT DOOR GLASS OUTER WEATHERSTRIP ASSEMBLY
7. REMOVE FRONT NO. 1 SPEAKER

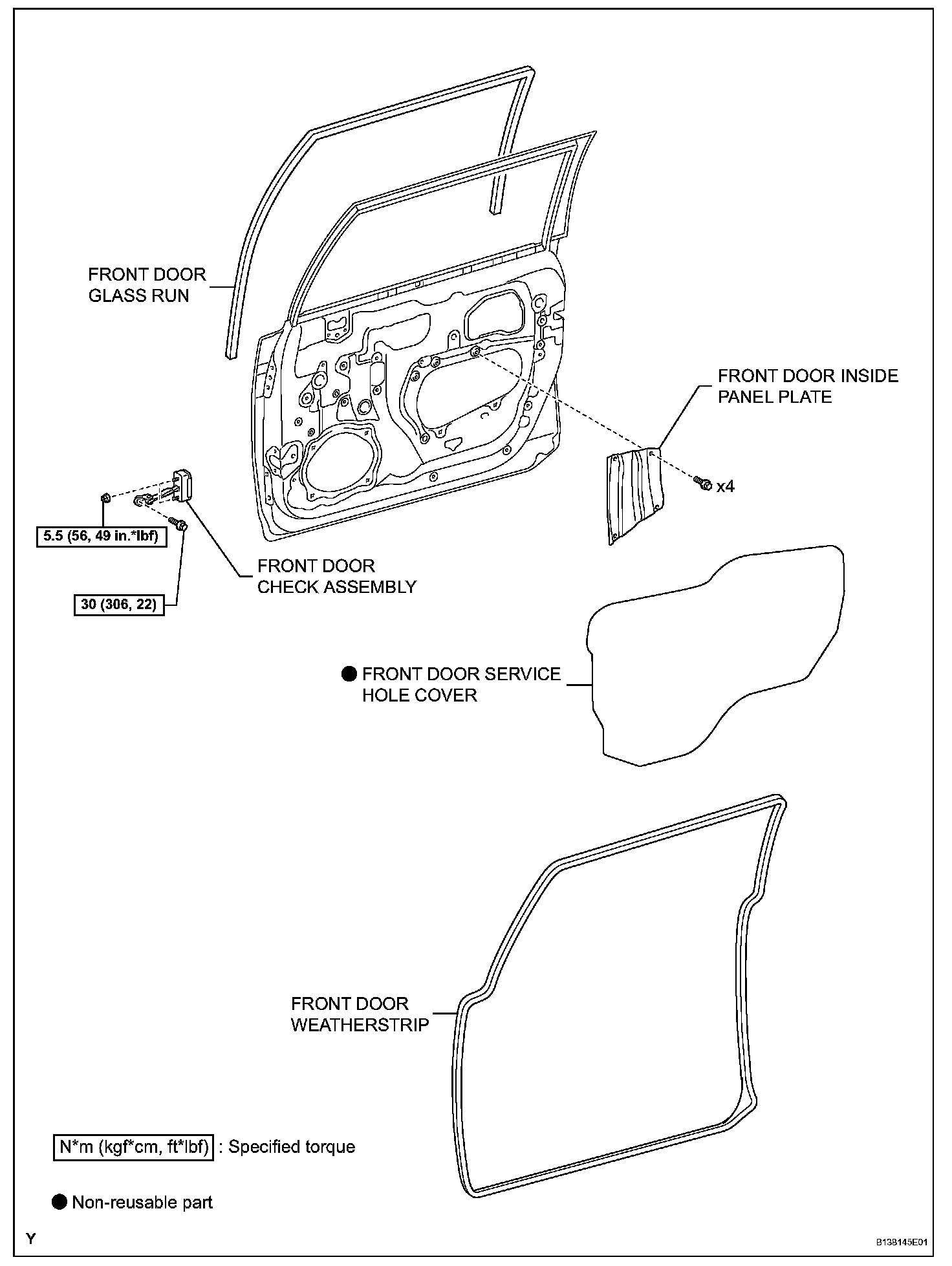

8. REMOVE FRONT DOOR SERVICE HOLE COVER
9. REMOVE FRONT DOOR INSIDE PANEL PLATE
10. REMOVE FRONT DOOR CHECK ASSEMBLY
11. REMOVE FRONT DOOR WEATHERSTRIP
12. REMOVE FRONT DOOR GLASS RUN

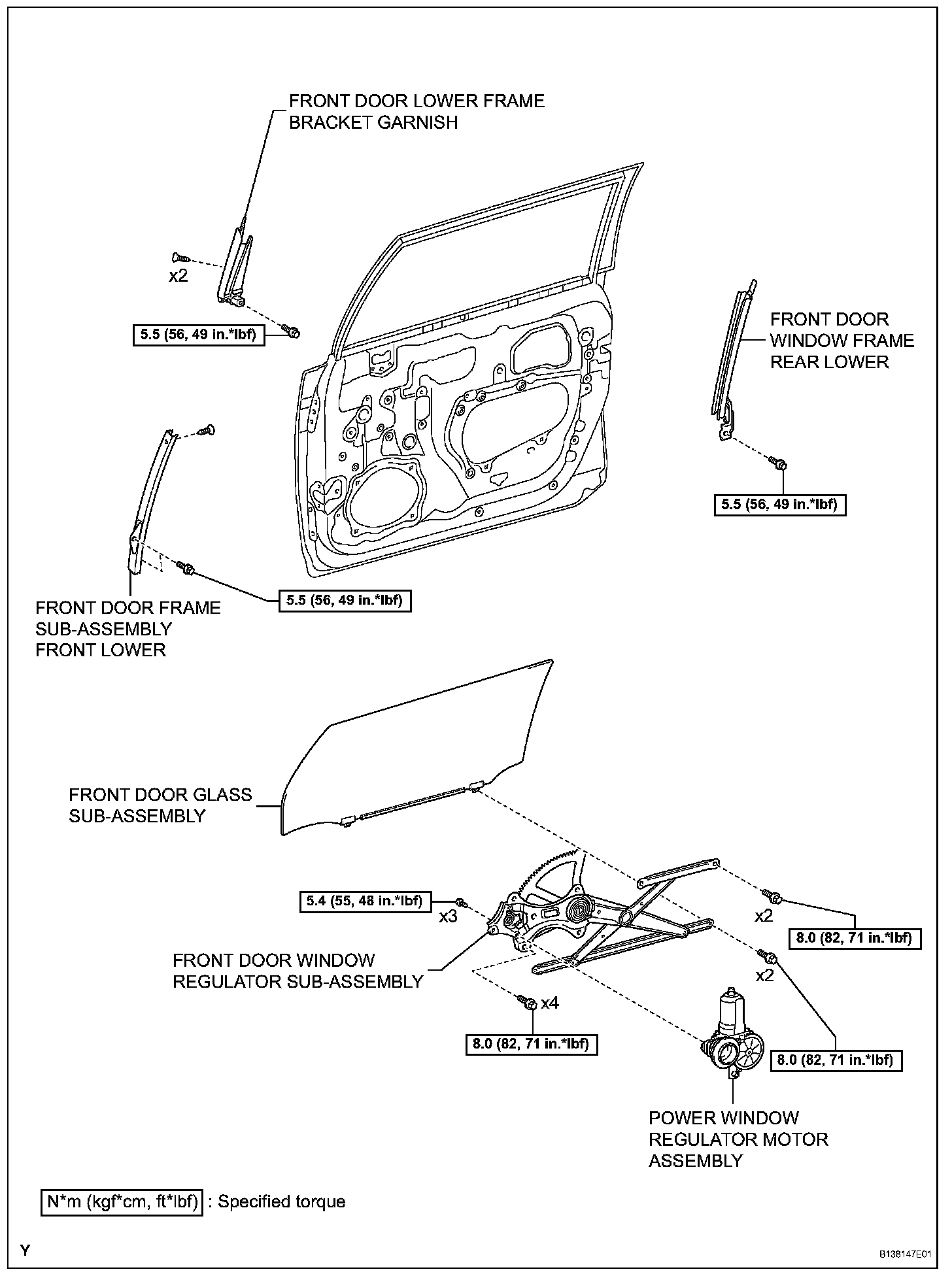

13. REMOVE FRONT DOOR FRAME SUB-ASSEMBLY FRONT LOWER
14. REMOVE FRONT DOOR LOWER FRAME BRACKET GARNISH
15. REMOVE FRONT DOOR WINDOW FRAME REAR LOWER
16. REMOVE FRONT DOOR GLASS SUB-ASSEMBLY
17. REMOVE FRONT DOOR WINDOW REGULATOR SUB-ASSEMBLY
18. REMOVE POWER WINDOW REGULATOR MOTOR ASSEMBLY

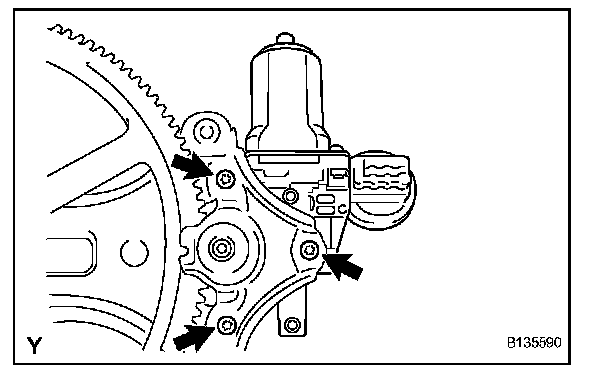

a. Using "Torx" socket wrench T25, remove the 3 screws and the power window regulator motor.

INSTALLATION

1. INSTALL POWER WINDOW REGULATOR MOTOR ASSEMBLY

a. Apply MP grease to the sliding and rotating areas of the regulator motor.

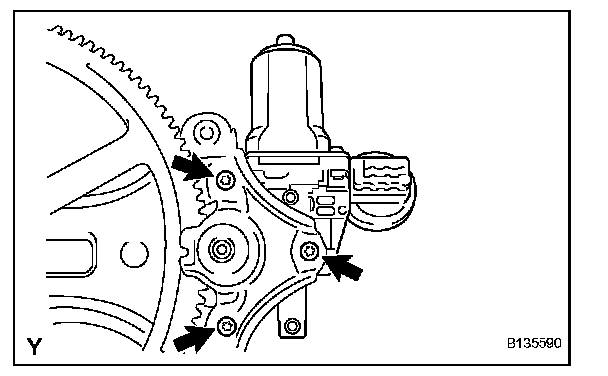

b. Using "Torx" socket wrench T25, install the power window regulator motor with the 3 screws.

Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)

2. INSTALL FRONT DOOR WINDOW REGULATOR SUB-ASSEMBLY
3. INSTALL FRONT DOOR GLASS SUB-ASSEMBLY
4. INSTALL FRONT DOOR WINDOW FRAME REAR LOWER
5. INSTALL FRONT DOOR LOWER FRAME BRACKET GARNISH
6. INSTALL FRONT DOOR FRAME SUB-ASSEMBLY FRONT LOWER
7. INSTALL FRONT DOOR GLASS RUN
8. INSTALL FRONT DOOR WEATHERSTRIP
9. INSTALL FRONT DOOR CHECK ASSEMBLY
10. INSTALL FRONT DOOR INSIDE PANEL PLATE
11. INSTALL FRONT DOOR SERVICE HOLE COVER
12. INSTALL FRONT NO. 1 SPEAKER
13. INSTALL FRONT DOOR GLASS OUTER WEATHERSTRIP ASSEMBLY
14. INSTALL OUTER REAR VIEW MIRROR
15. INSTALL FRONT NO. 2 DOOR SERVICE HOLE COVER
16. INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY
17. INSTALL FRONT ARMREST BASE UPPER PANEL
18. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Torque: 3.9 N.m (40 kgf.cm, 35 in.lbf)
