Front Passenger Side Power Window Switch

FRONT PASSENGER SIDE POWER WINDOW SWITCH

Front Passenger Side Power Window Switch:

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

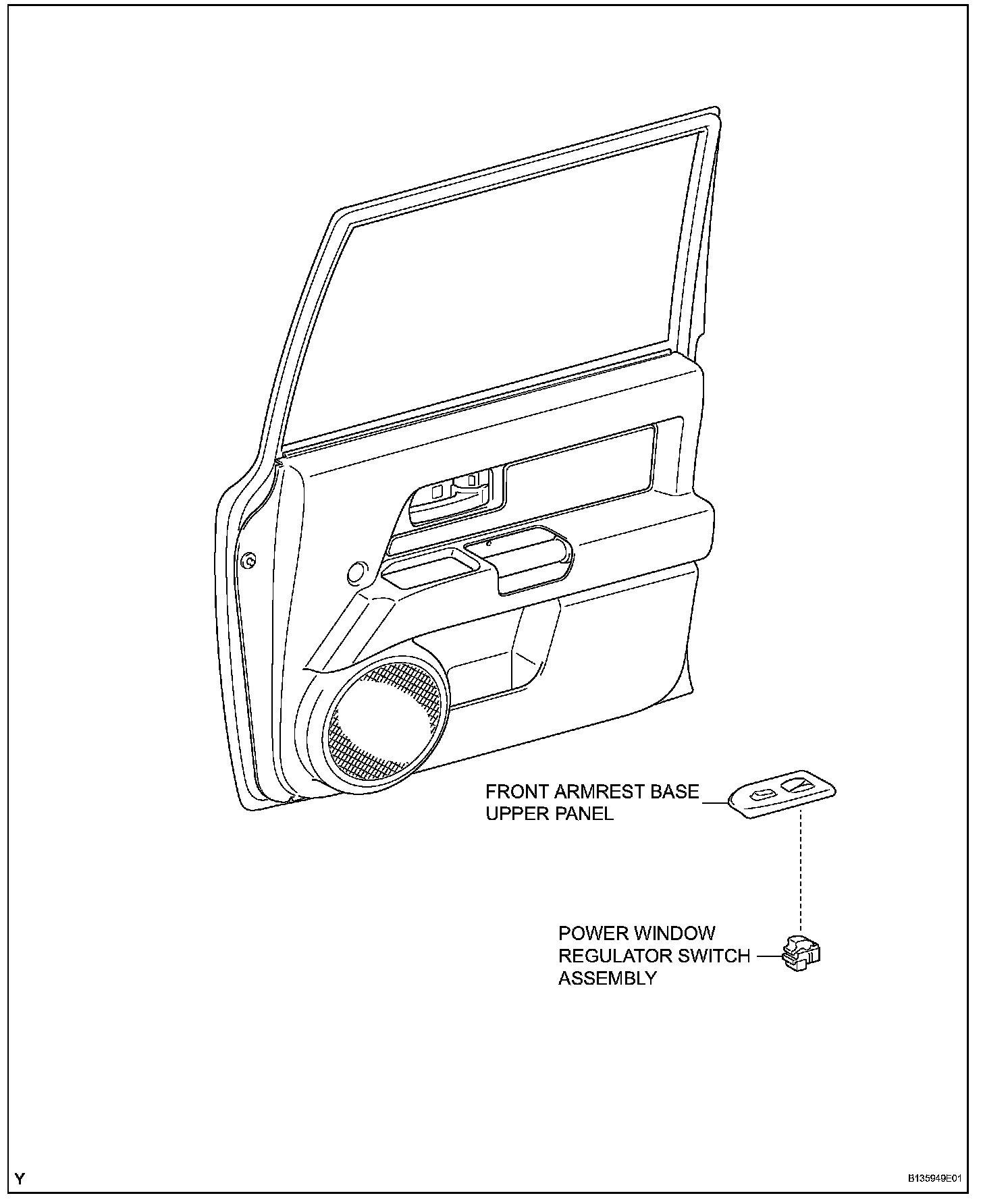

2. REMOVE FRONT ARMREST BASE UPPER PANEL
3. REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY

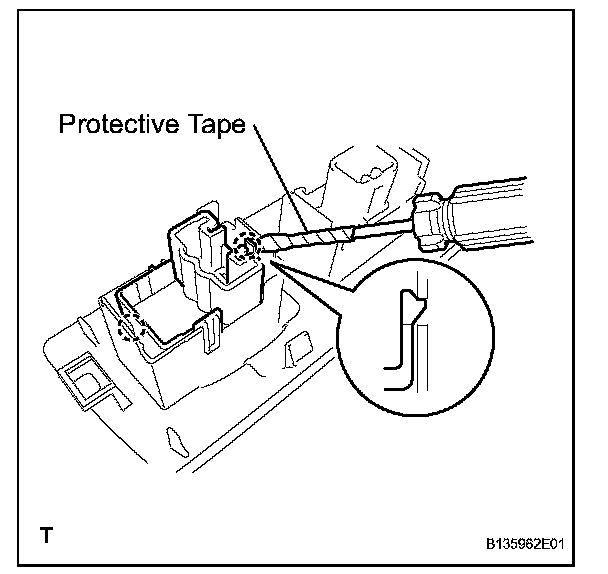

a. Using a screwdriver with its tip wrapped in protective tape, disengage the 2 claws and remove the power window regulator switch.

INSTALLATION

1. INSTALL POWER WINDOW REGULATOR SWITCH ASSEMBLY





a. Engage the 2 claws and install the power window regulator switch.

2. INSTALL FRONT ARMREST BASE UPPER PANEL
3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Torque: 3.9 N.m (40 kgf.cm, 35 in.lbf)
