Transmission Position Sensor/Switch: Locations

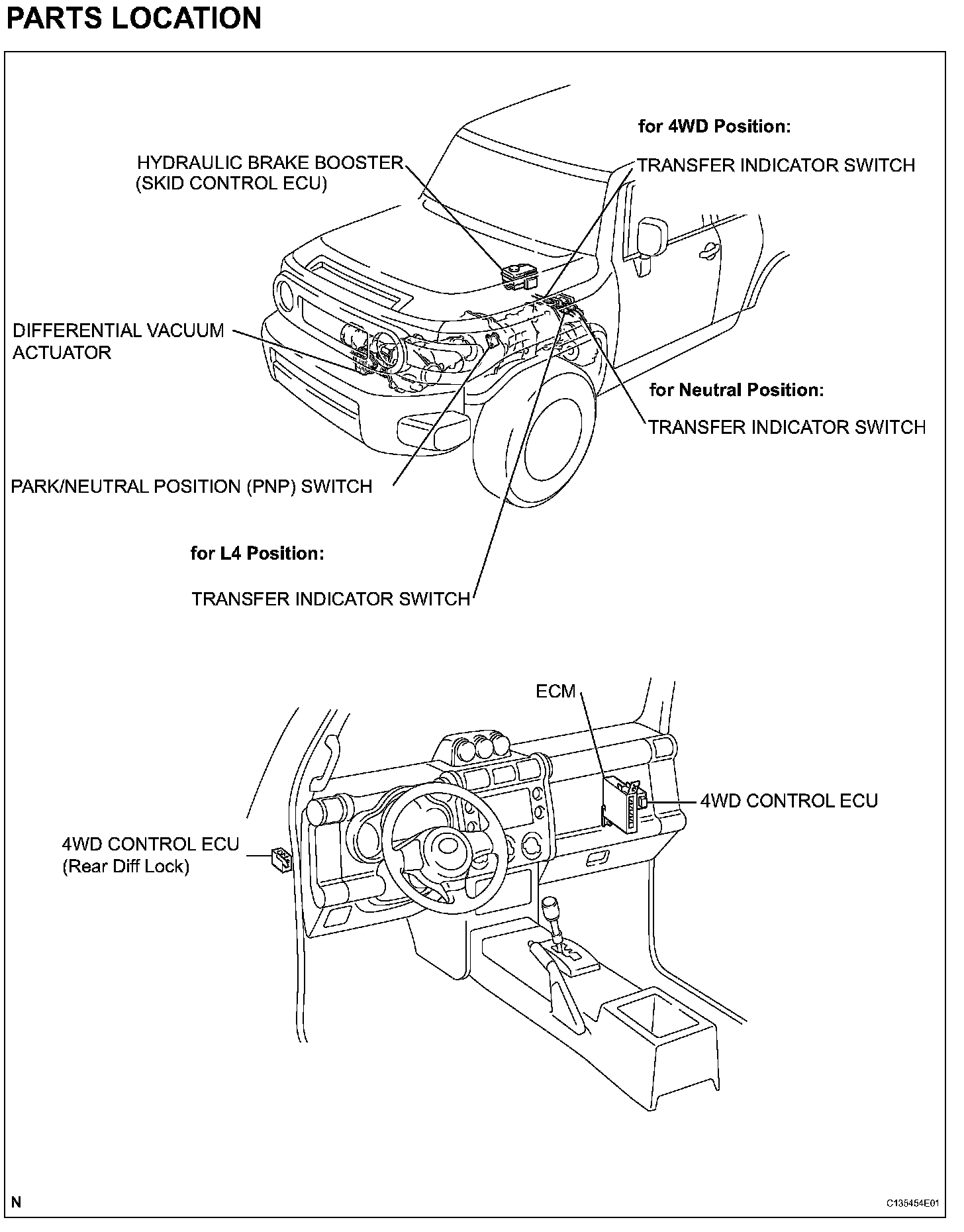

VF2A Transfer:

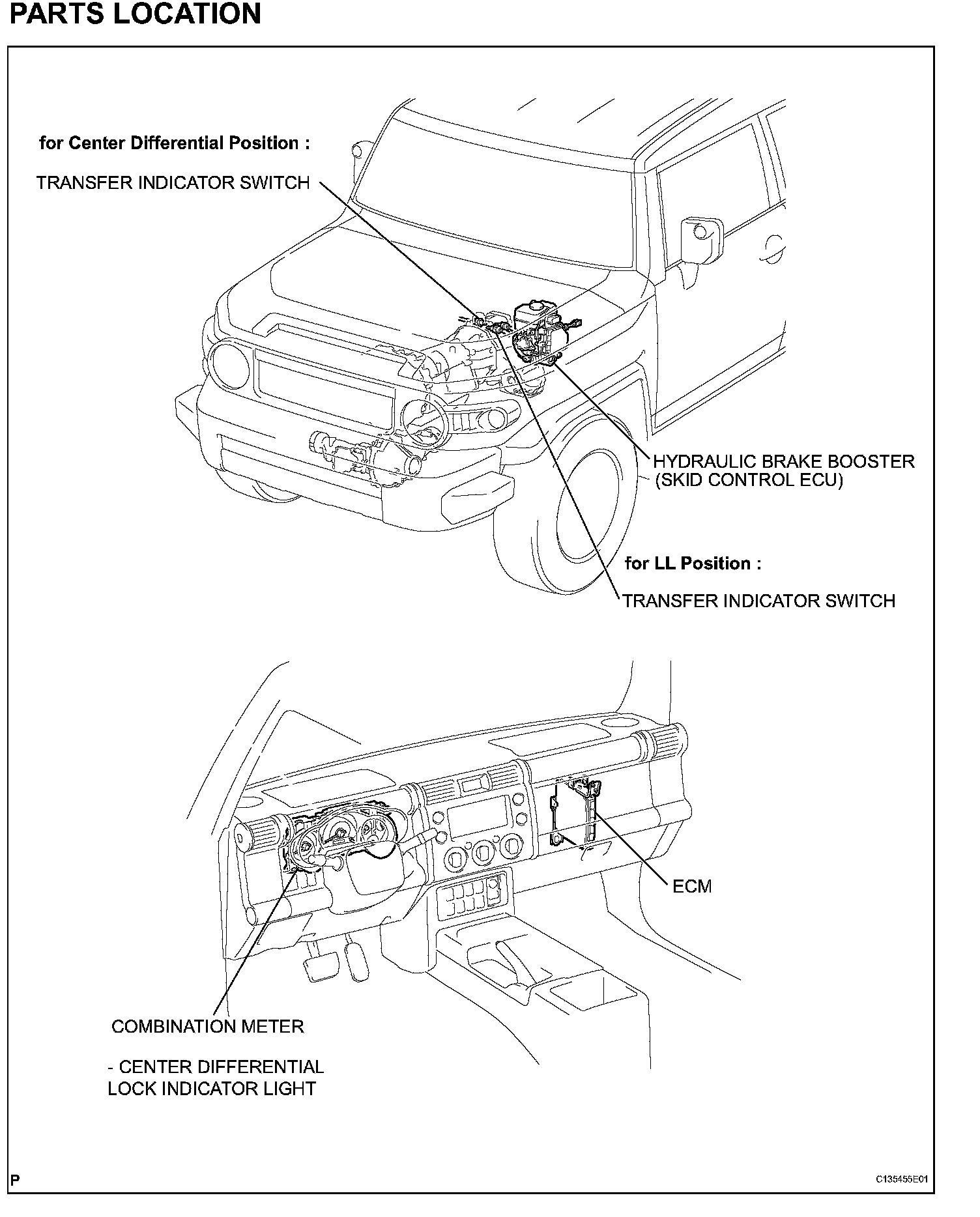

VF2B Transfer:



A/C - VVT:



Ac - Tw:

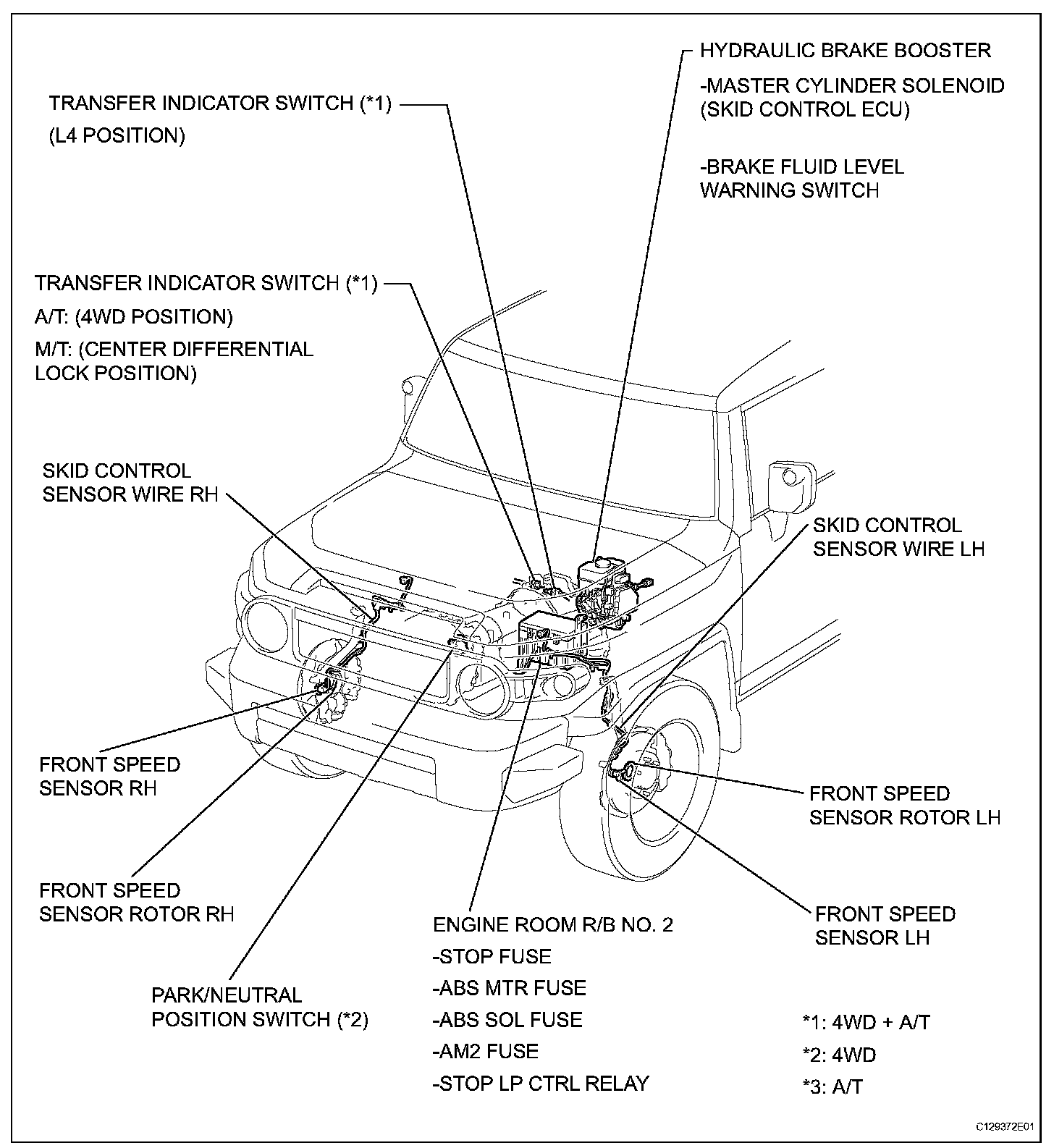

Vehical Stablity Control System:
