CLUTCH START CANCEL SWITCHINSPECTION
1. INSPECT CLUTCH START CANCEL SWITCH ASSEMBLY

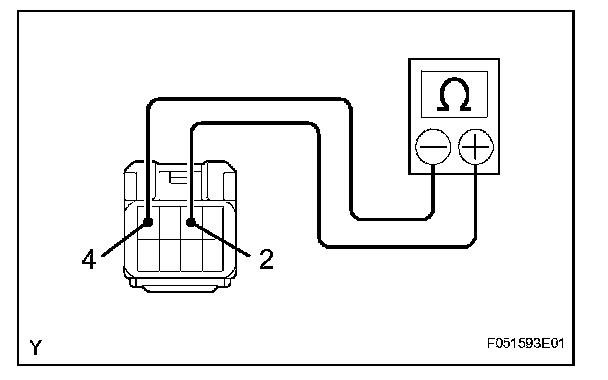

(a) Using an ohmmeter, check that there is resistance between terminals 2 and 4.
Standard: 10 kOhms or higher
If the result is not as specified, replace the clutch start cancel switch.

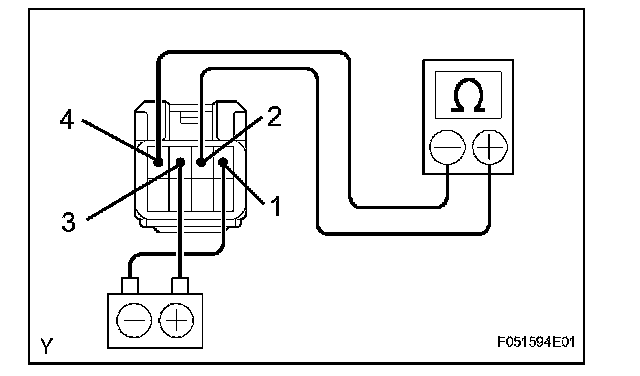

(b) Connect the positive (+) lead from the battery to terminal 3 and connect the negative (-) lead to terminal 1.
(c) Using an ohmmeter, check that there is resistance between terminals 2 and 4.
Standard: 10 kOhms or higher
If the result is not as specified, replace the clutch start cancel switch.

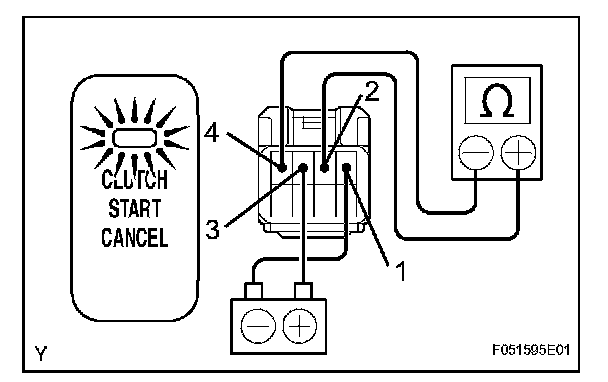

(d) Check that the indicator light comes on and there is resistance between terminals 2 and 4 when the switch is pressed.
Standard: Blow 1 Ohm
If the result is not as specified, replace the clutch start cancel switch.

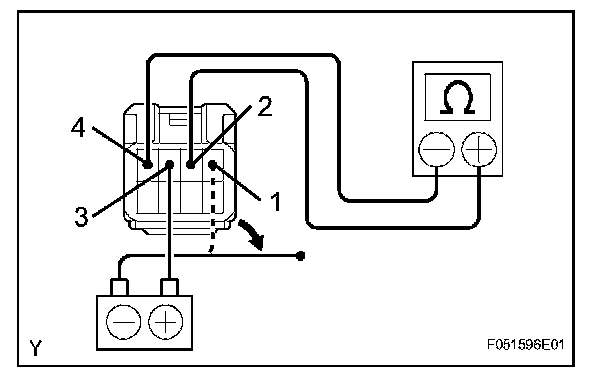

(e) Using an ohmmeter, check that there is resistance between terminals 2 and 4 when the battery lead is disconnected.
Standard: 10 kOhms or higher
If the result is not as specified, replace the clutch start cancel switch.
