Without Scan Tool

CLEAR/RECHECK DTC

HINT:
- Illustrations may differ from the actual vehicle depending on the device setting and options.




a. Start the diagnostic mode.
b. Clear DTC.

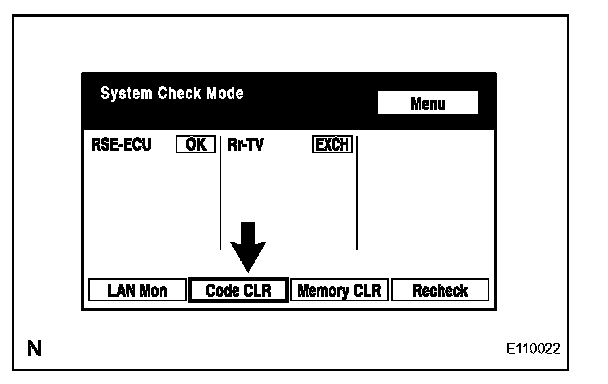

1. Press the "Code CLR" switch for 3 seconds.
2. DTC is cleared.




c. Recheck DTC.

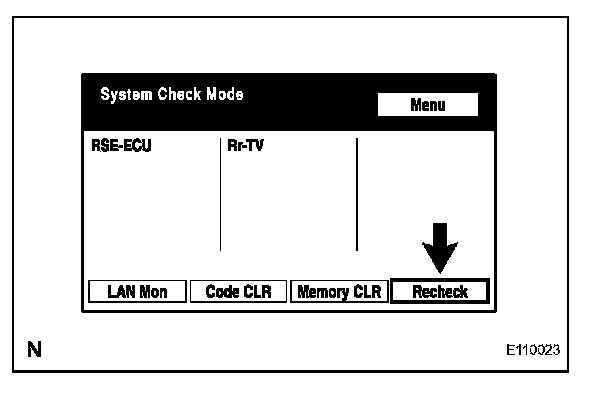

1. Press the "Recheck" switch.

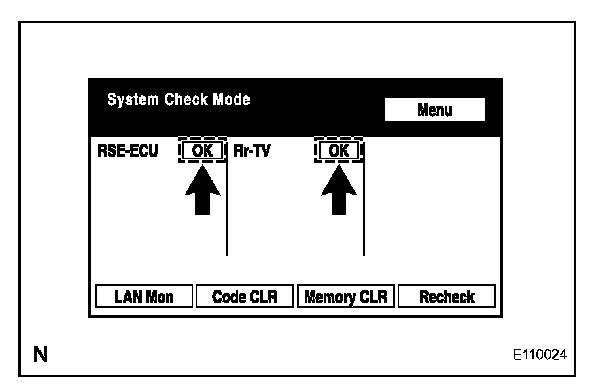

d. Confirm that all diagnostic codes are "OK" when the check results are displayed. If a code other than "OK" is displayed, troubleshooting again.

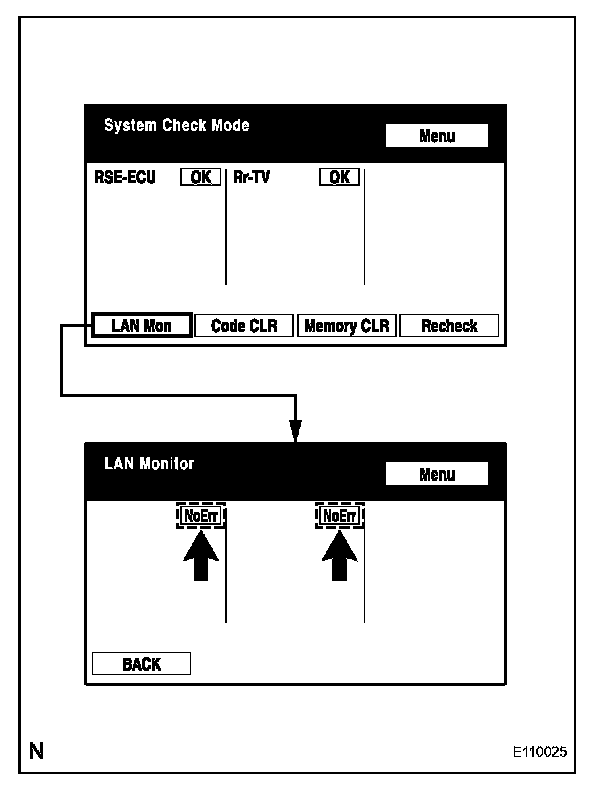

e. Press the "LAN Mon" switch to change to "LAN Monitor" mode.
f. Confirm that all diagnostic codes are "No Err". If a code other than "No Err" is displayed, troubleshoot again.
