Horn Circuit

Horn Circuit

DESCRIPTION

The multiplex network body ECU activates the horn when a panic signal from the door control transmitter is detected.

HINT: The horn for the panic alarm operation function can be set to OFF.

Wiring Diagram:

Step 1:

Step 1 (Continued)-2:

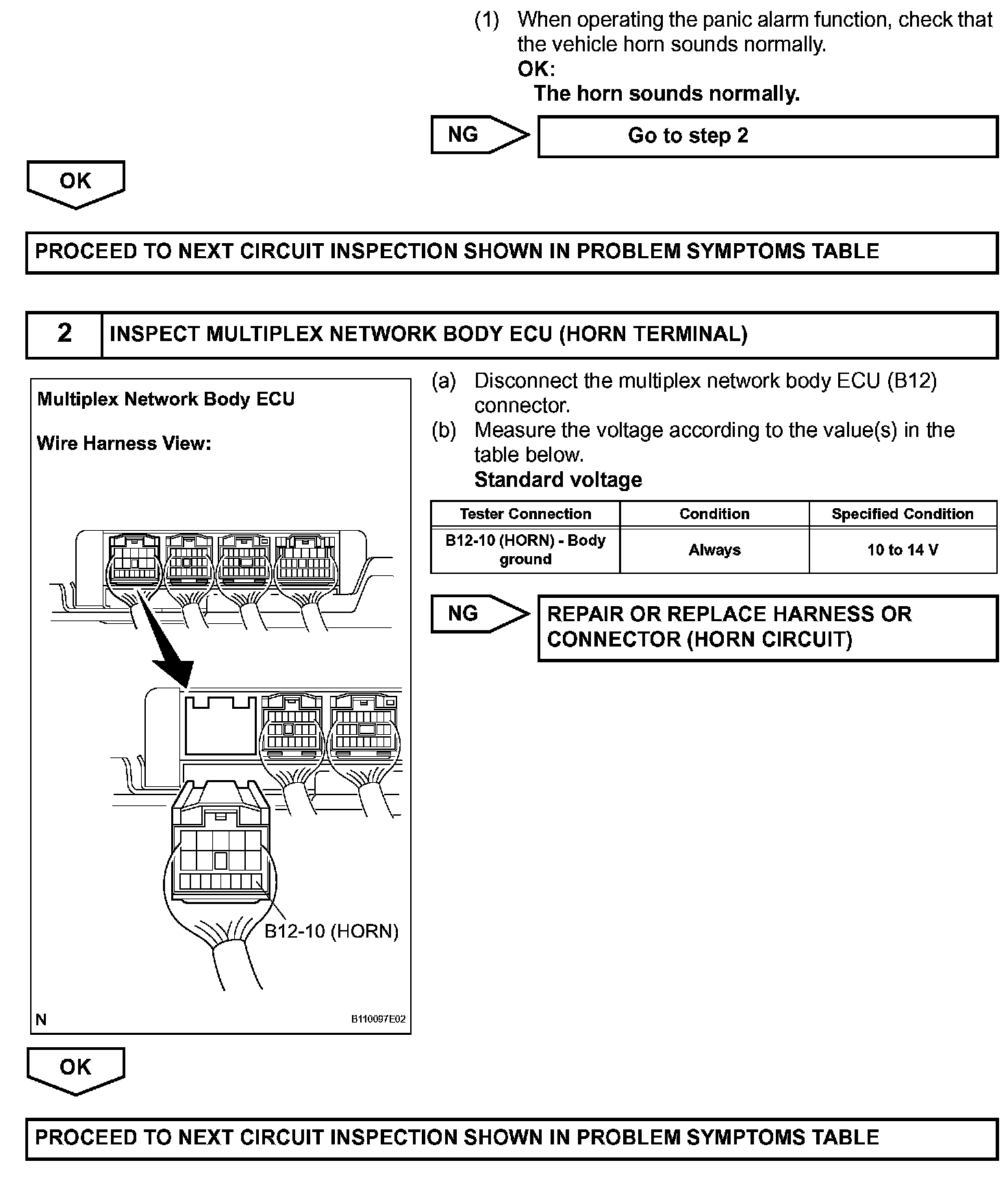

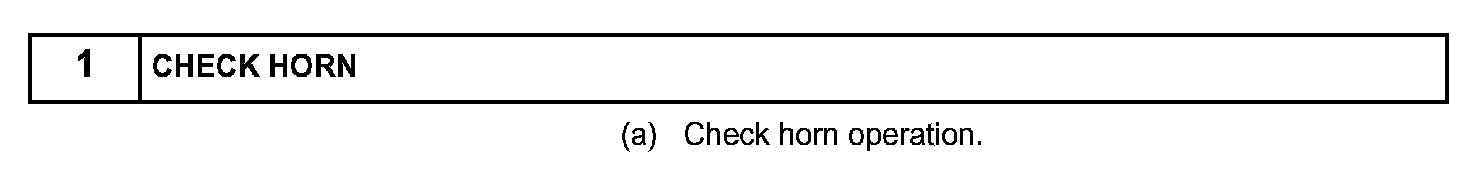

INSPECTION PROCEDURE

HINT: Confirm that the horn is not set to OFF and the vehicle horn sounds when the pad switch is pressed before performing the given inspections. If the horn does not sound, refer to HORN SYSTEM.
