Brakes and Traction Control: Testing and Inspection

PROBLEM SYMPTOMS TABLE

HINT: Refer to the table below to help locate find the cause of the problem. The numbers indicate the priority of the possible cause of problem. Check each part in the order. If necessary, replace these parts.

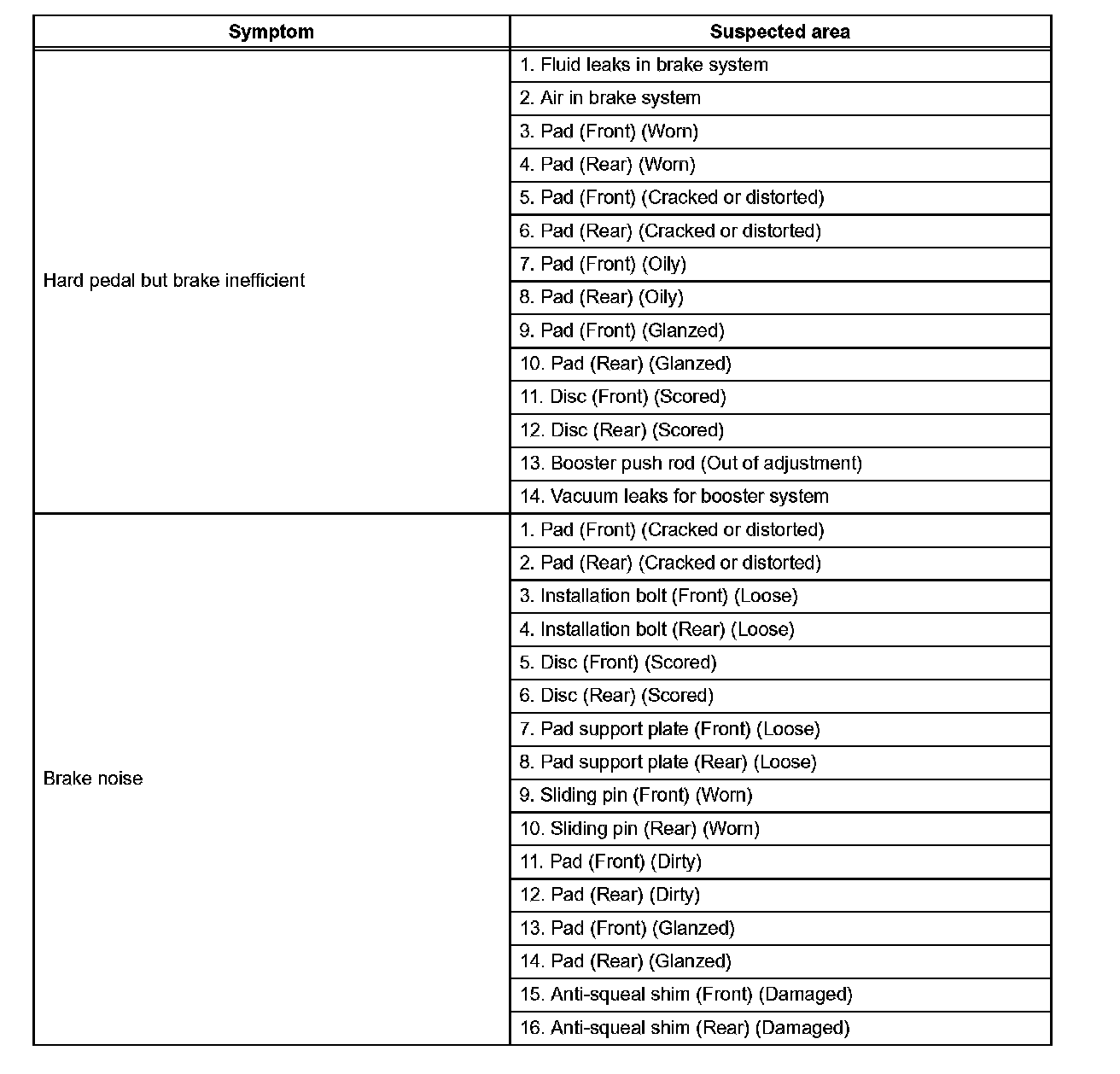

Brake System (Part 1):




Brake System (Part 2):
