Removal and Replacement

Integration Control And Panel:

Integration Control And Panel:

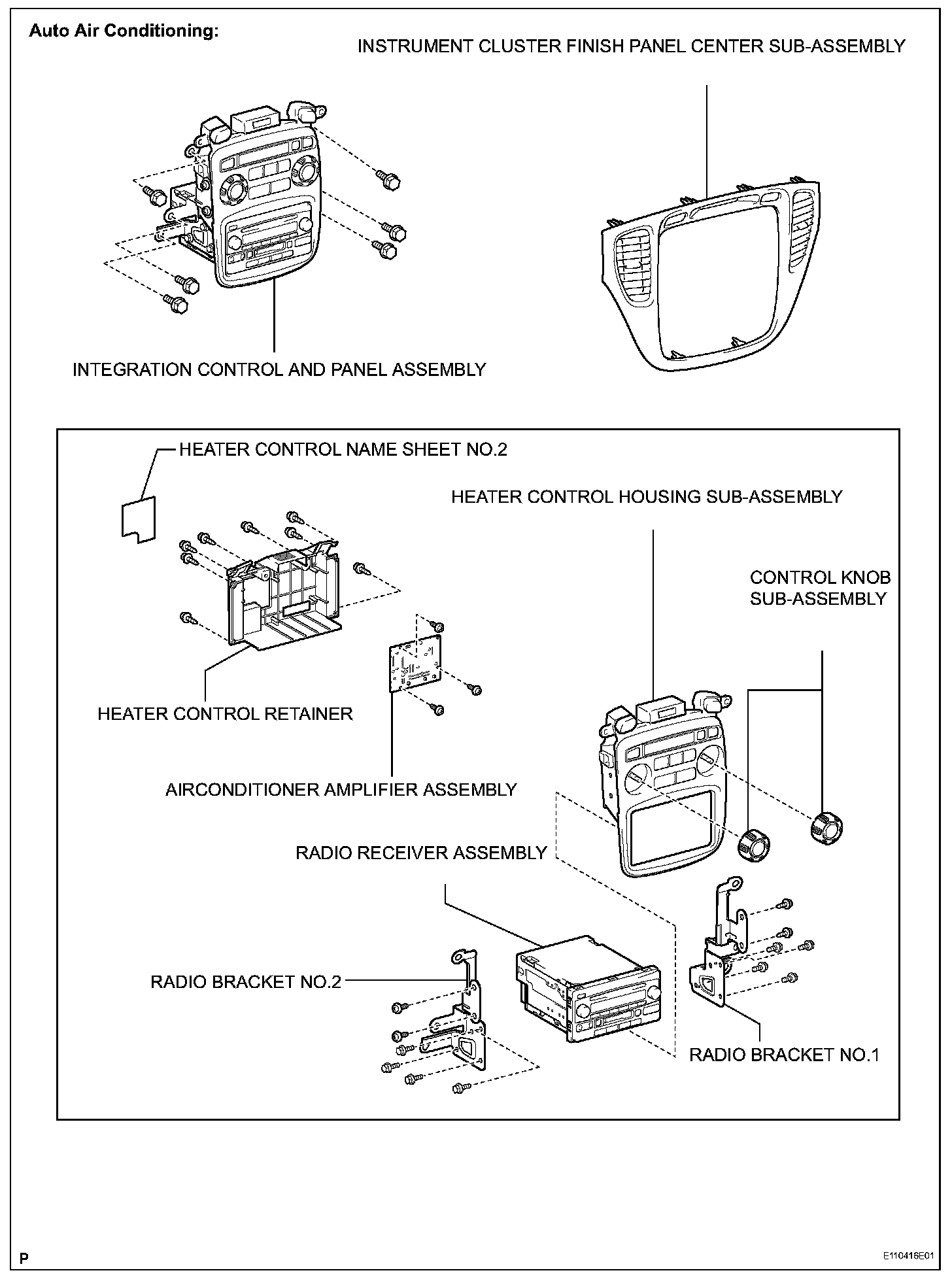

INTEGRATION CONTROL AND PANEL

REMOVAL

1. REMOVE INSTRUMENT CLUSTER FINISH PANEL CENTER SUB-ASSEMBLY
2. REMOVE INTEGRATION CONTROL AND PANEL ASSEMBLY

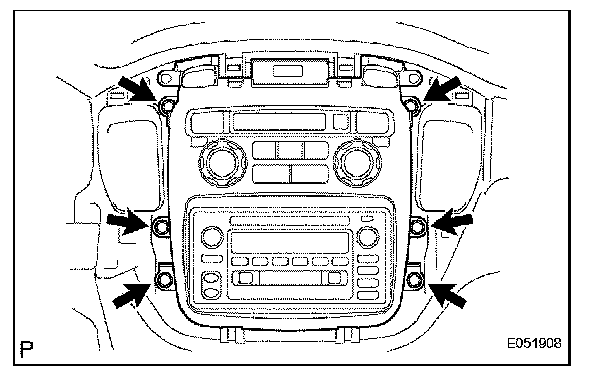

a. Remove the 6 bolts.
b. Release the connector and remove the integration control and panel assembly.

3. REMOVE RADIO RECEIVER ASSEMBLY

INSTALLATION

1. INSTALL RADIO RECEIVER ASSEMBLY
2. INSTALL INTEGRATION CONTROL AND PANEL ASSEMBLY
3. INSTALL INSTRUMENT CLUSTER FINISH PANEL CENTER SUB-ASSEMBLY
